Dual Band GPS Optional Soft SIM Easy Setup 4G LTE Wireless Router

Name of the campaign

4G LTE CPE

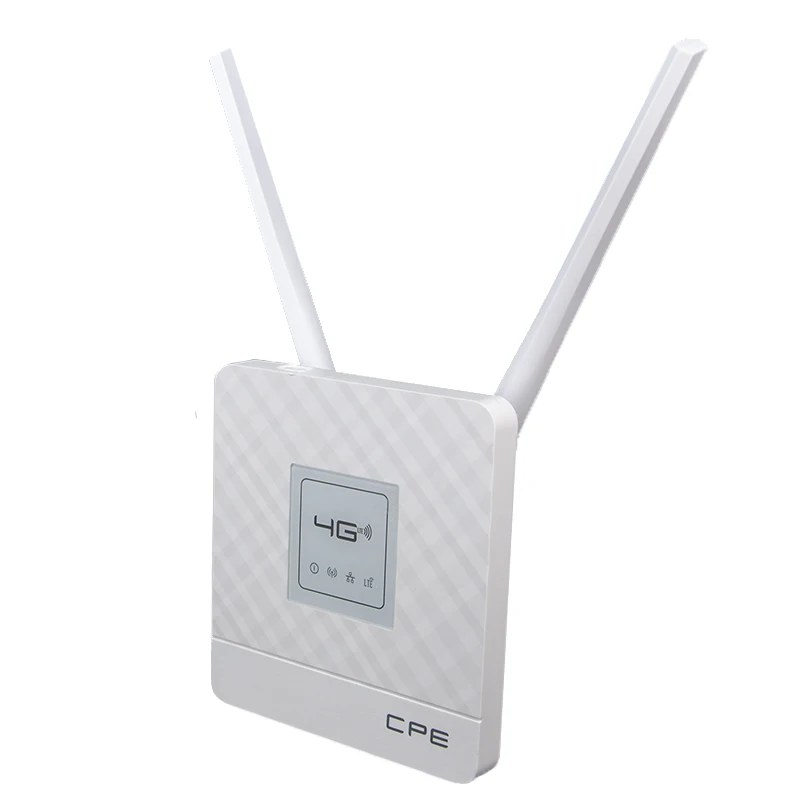

Appearance

Dimension (L × W × H)

115*105*23mm

Weight

180g

Hardware Platform

HW_VER

CPF903－V1.0

MTK Chipset

MT6735/6737/6753

Storage

4GByte EMMC+512MByte DDR2

Band

FDD operating band B1,B3,B5,B7,B8,B20

TDD operating band B38,B39,B40,B41

WCDMA:B1,B5 ,B8

EVDO BC0

GSM:900/1800MhZ

Diversity Band

FDD operating band B1,B3,B5,B7,B8,B20

TDD operating band B38,B39,B40,B41

WCDMA:B1,B5 ,B8

EVDO BC0

Red indicates an optional BAND

3GPP

3GPP R9 Cat.4

3GPP R9 Cat.4

3GPP R7&R8 HSDPA Cat.24(64QAM) HSUPA Cat.7(16QAM)

3GPP2

NA

Transfer rate

up to 150Mbps DL up to 50Mbps UL

up to 150Mbps DL up to 50Mbps UL

HSDPA up to 42.2Mbps DL HSUPA up to 11.5Mbps UL

3.1Mbps DL

NA

Wi-Fi Chipset

MT6625L

Wi-Fi

IEEE 802.11b/g/n

Wi-Fi Transfer rate

up to 150Mbps

Way of Encryption

Wi-Fi Protected Access™ (WPA/WPA2)2

WIFI type

Support 2.4G

Antenna

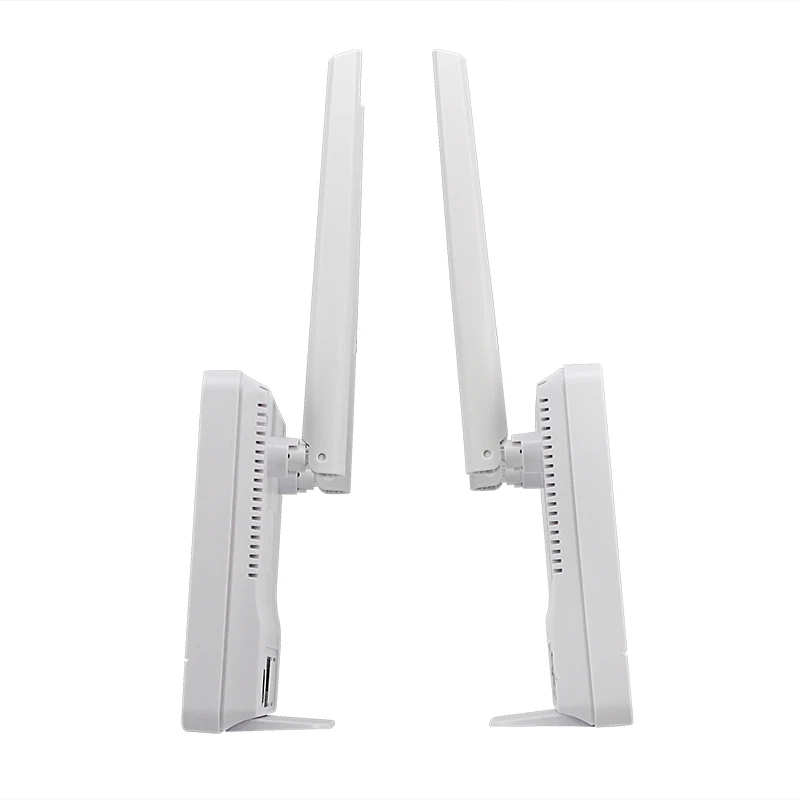

External antennas * 2 1 for 2.4G 1 for LTE main module (with built-in diversity antenna)

GPS

Optional GPS support (Note: The high-end chip can also support Beidou positioning)

Features and Functions

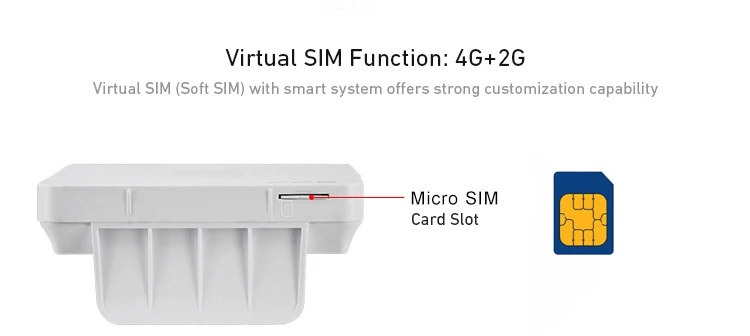

Virtual card function

4G+2G

Soft SIM

esim or softsim

Customization

Intelligent system Strong customization capabilities

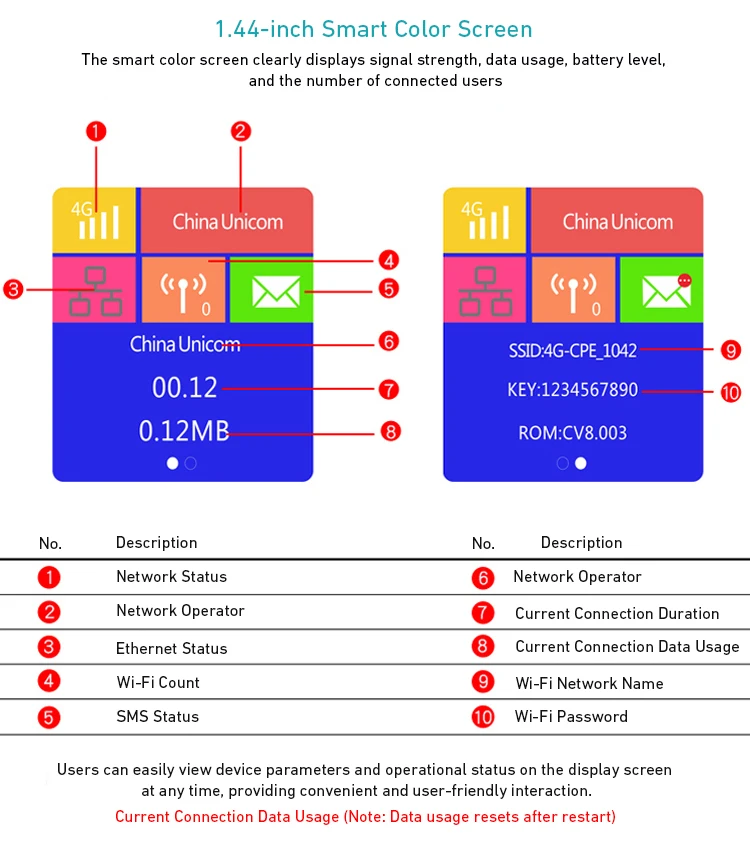

Display

LCD

Colorful screen

Port

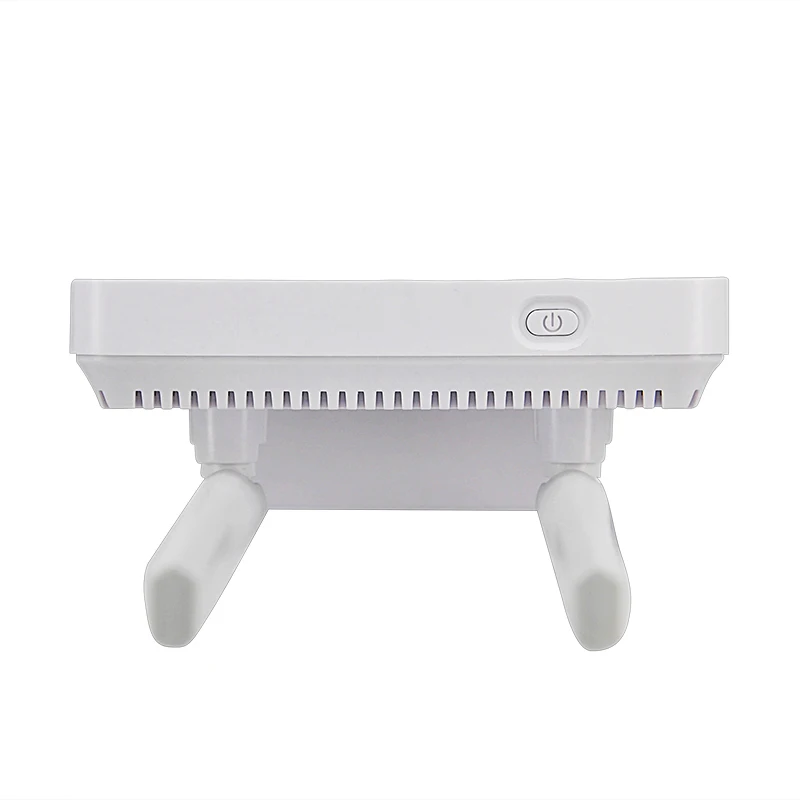

Power switch

1 power

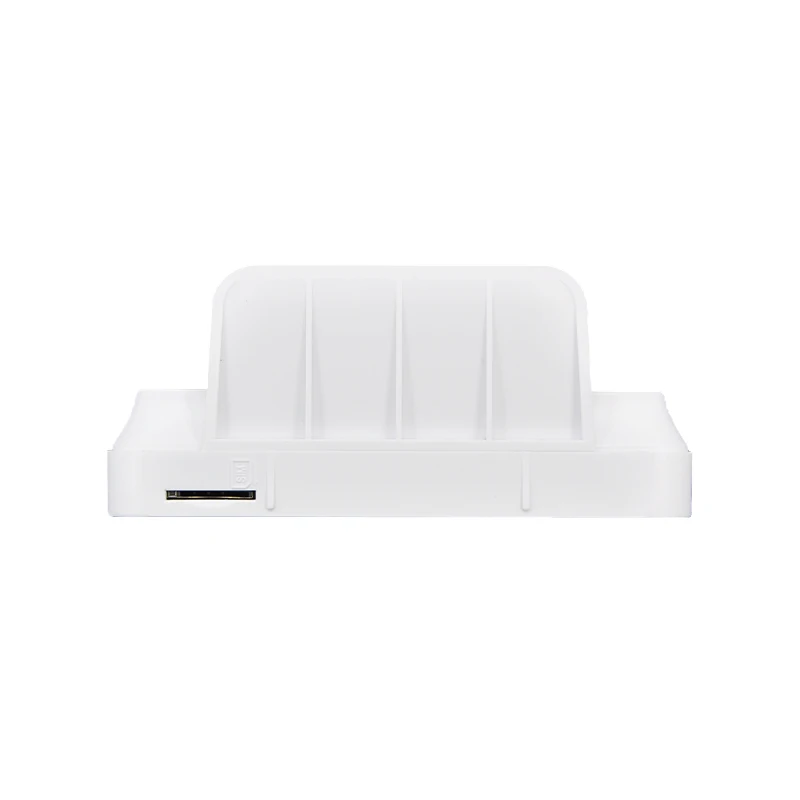

SIM

2 SIM

USB

USB TYPE A (5V 1A IN)

DC

12V 1A IN

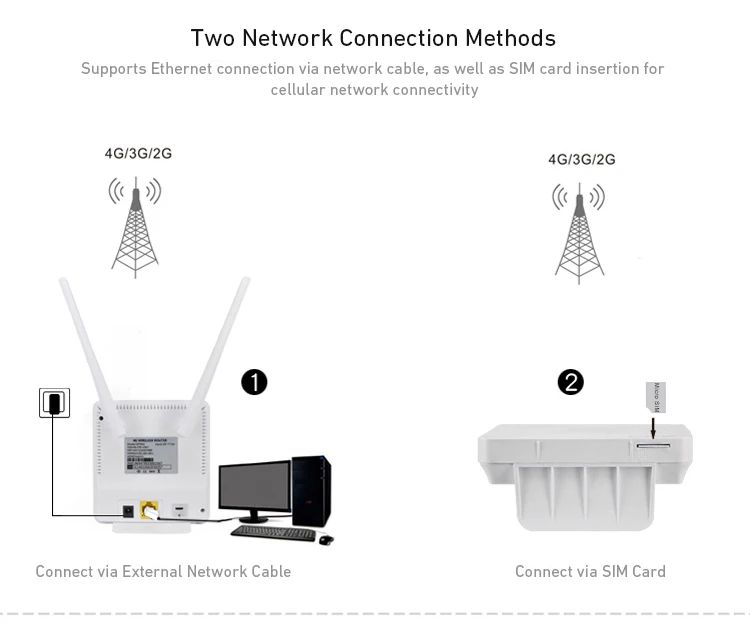

RJ45

1* WAN/LAN

Internet

Wi-Fi

Wi-Fi AP， Supports up to 10 clients at most

WIFI name SSID

4GCPE-XXXX（IMEI The last four digits of the address）

WIFI Default password

1234567890

Operating environment

Working temperature

0° to 35°C (32° to 95°F)

Work height

The current test can reach a maximum altitude of 3000 meters. (10,000 feet)

Operation system

PC Users: A PC with Windows XP (SP3), Windows Vista (SP1), Windows 7,or Windows 8 WIN10

MAC Users: A Mac with OS X v10.5.7,OS X Lion v10.7.3 or later

IPAD Uers: An iPhone, iPad, or iPod touch with iOS 5 or later

Android Uers: An mobile Phone or Tablet PC with Android 2.3 or later

Operation Browser

Internet Explorer 8.0 ,Mozilla Firefox 40.0 ,Google Chrome 40.0 ,Safari above version

Software Platform

System

Android 6.0

WEB

Gateway

http://192.168.199.1

Log in

Default password：admin (By default, the first login requires the user to change the management password.）; Langurage choice
(Chinese; English)

Status bar

Network connection status; ANP information; IP information; Signal strength; Connection time; Number of Wi-Fi client connections

Networks

apn configuration：International roaming switch，apn，user name，passoword，modification of authorization type；add new apn, restore
default APN parameters; PIN code &PUK code input; Traffic statistics: Data limit: Once the cumulative data reaches the set value,
it will be limited at the set rate.

Wifi

WLAN Configuration: Revision ssid，Encryption method，Encrypted password。Set the maximum number of connections, support PBC-WPS;
WIFI connection list: View the list of terminals connected to this device，View MAC address, IP address and host name; you can
choose to disable internet access and restore internet access.

System Manage

Login password management: Supports modification of username and password System operation: Supports device restart, shutdown, and
factory reset. System Information: View software version, WLAN's MAC address, IMEI number Date and Time Zone Settings: Specify the
method for updating the device's time: Network time or GPS time. Default network time zone: Automatically update the time zone,
Custom time zone. Phone book settings: Add, modify, search, delete contacts GPS Control: GPS function is enabled, disabled

SMS Management

Text message reading, deletion, sending

OTHER

SIM card lockout

SIM card lock and unlock

SIM card compatibility

Unicom, Mobile, Telecom, etc. 4G SIM cards and IoT cards
