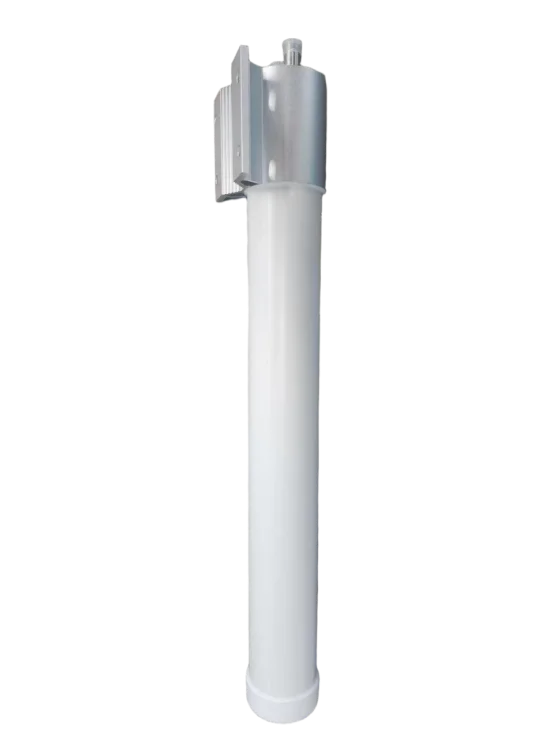

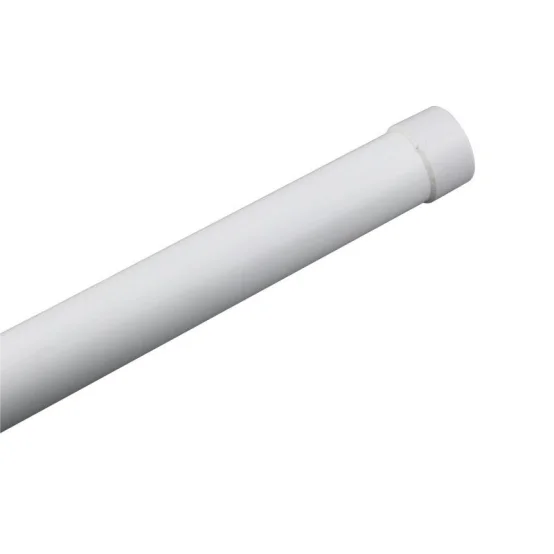

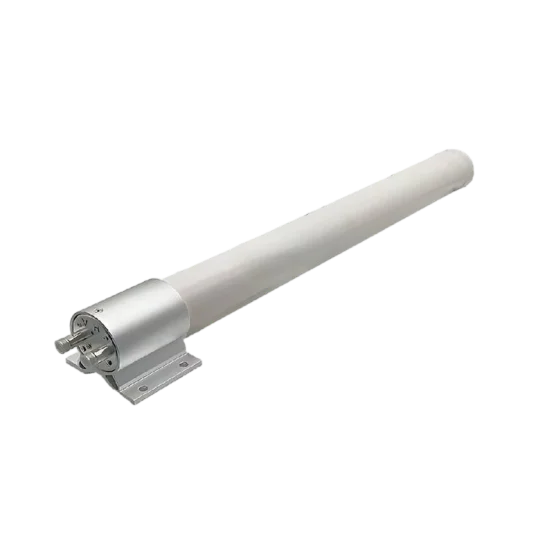

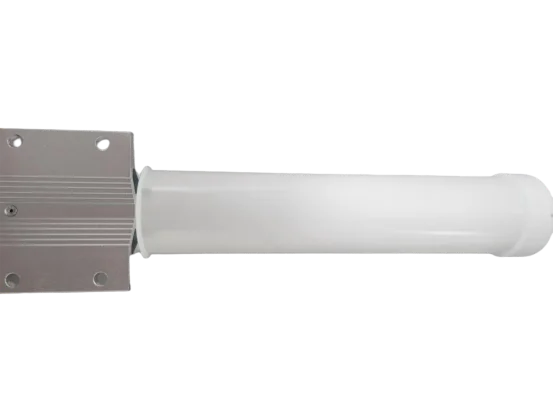

Dual N-K Connectors 360° Coverage 8dBi Gain 3800-4200MHz 5G C-Band Omnidirectional Antenna
Dual N-K Connectors 360° Coverage 8dBi Gain 3800-4200MHz 5G C-Band Omnidirectional Antenna
Dual N-K Connectors 360° Coverage 8dBi Gain 3800-4200MHz 5G C-Band Omnidirectional Antenna
Dual N-K Connectors 360° Coverage 8dBi Gain 3800-4200MHz 5G C-Band Omnidirectional Antenna
Dual N-K Connectors 360° Coverage 8dBi Gain 3800-4200MHz 5G C-Band Omnidirectional Antenna
Dual N-K Connectors 360° Coverage 8dBi Gain 3800-4200MHz 5G C-Band Omnidirectional Antenna
Dual N-K Connectors 360° Coverage 8dBi Gain 3800-4200MHz 5G C-Band Omnidirectional Antenna
Dual N-K Connectors 360° Coverage 8dBi Gain 3800-4200MHz 5G C-Band Omnidirectional Antenna
Dual N-K Connectors 360° Coverage 8dBi Gain 3800-4200MHz 5G C-Band Omnidirectional Antenna
Dual N-K Connectors 360° Coverage 8dBi Gain 3800-4200MHz 5G C-Band Omnidirectional Antenna
Dual N-K Connectors 360° Coverage 8dBi Gain 3800-4200MHz 5G C-Band Omnidirectional Antenna
Dual N-K Connectors 360° Coverage 8dBi Gain 3800-4200MHz 5G C-Band Omnidirectional Antenna

Dual N-K Connectors 360° Coverage 8dBi Gain 3800-4200MHz 5G C-Band Omnidirectional Antenna

Get a Quote Contact Us
  • Description
product dual n k connectors 360 coverage 8dbi gain 3800 4200mhz 5g c band omnidirectional antenna-1

[email protected]
Inquiry
Product Description

1.Optimized for 5G C-Band (3800-4200MHz): Specifically designed for 5G NR applications with 400MHz bandwidth. Delivers 8dBi gain performance perfect for 5G base stations and small cell deployments.
2.Dual N-K Connector Design: Provides redundancy and flexibility for system integration. Enables simultaneous connectivity for multiple systems or backup configurations, enhancing overall system reliability.
3.Compact & Lightweight Design: Weighing only 1.5kg with compact Φ55×450mm dimensions. Simplifies installation and reduces structural load, ideal for rooftop and pole-mounted deployments in space-constrained locations.
4.Optimized 17° Vertical Beamwidth: Combines 360° horizontal coverage with focused vertical pattern. Provides the ideal balance between coverage area and signal concentration for efficient spectrum utilization.
5.All-Weather PVC Construction: Withstands temperatures from -40℃ to +60℃ and wind speeds up to 60m/s. The durable PVC radome ensures long-term performance in harsh outdoor environments without corrosion concerns.
Product Detail
Electrical Performance
Frequency Range (MHz)
3800～4200
Bandwidth (MHz)
400
Polarization
Vertical
Voltage Standing Wave Ratio (VSWR)
≤1.5
Gain (dBi)
8
Horizontal 3dB Beamwidth (°)
360
Vertical 3dB Beamwidth (°)
17
Maximum Power (W)
100
Input Impedance (Ω)
50
Ground Protection
DC
Mechanical & Environmental Specifications
Connector Type
2×N-K
Antenna Dimensions (mm)
Φ55×450
Antenna Weight (excluding clamp, kg)
1.5
Radome Material
PVC (Polyvinyl Chloride)
Operating Temperature (℃)
-40～+60
Maximum Wind Speed (m/s)
60
Installation Method
Pole-Mounted
Pole Diameter (mm)
Φ40~Φ90
