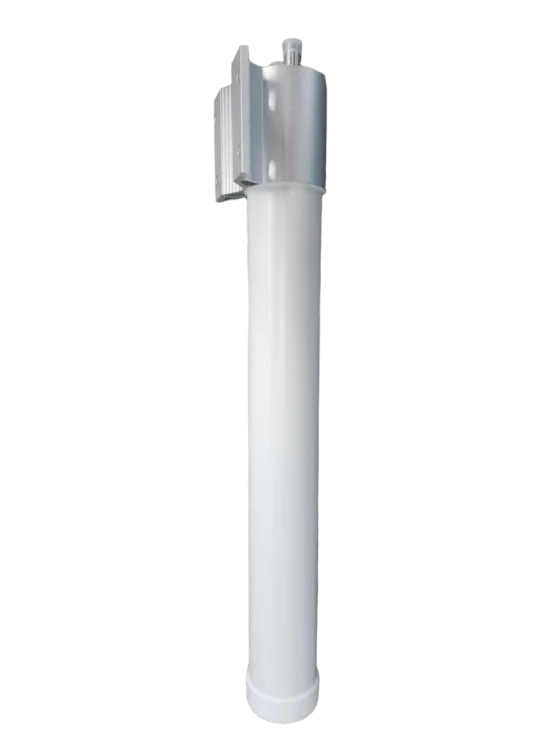

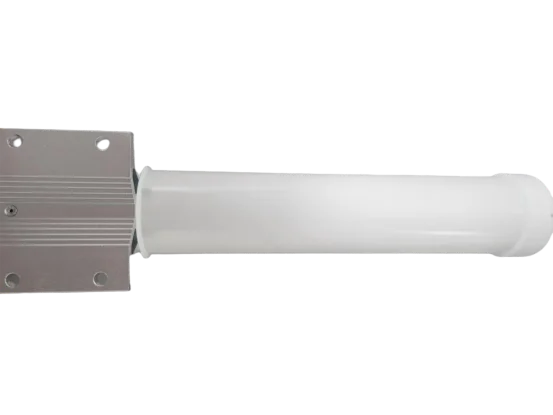

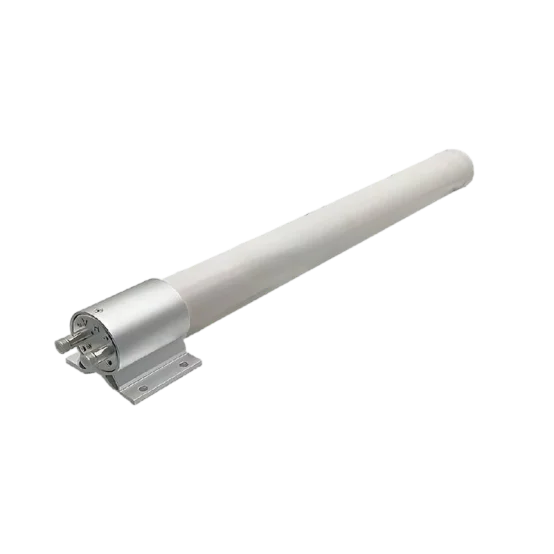

Dual Port 360° Omnidirectional 8dBi 3400-3800MHz 5G NR Base Station Antenna

Dual Port 360° Omnidirectional 8dBi 3400-3800MHz 5G NR Base Station Antenna

Description

[email protected]

Description

Product Description

1.Dedicated 5G C-Band Operation (3400-3800MHz): Optimized for 5G NR applications with 400MHz bandwidth. Delivers 8dBi gain performance specifically tuned for 5G base station and small cell deployments.

2.Redundant Dual N-K Connectors: Provides system redundancy and connection flexibility. Enables simultaneous multi-system operation or backup configurations, ensuring uninterrupted communication service.

3.Space-Saving Lightweight Design: At just 1.5kg with compact Φ55×550mm dimensions, this antenna simplifies installation and reduces structural load. Ideal for limited space deployments and quick installations.

4.Optimized 17° Vertical Beamwidth: Combines full 360° horizontal coverage with precisely controlled vertical pattern. Maximizes coverage efficiency while minimizing interference in dense deployment scenarios.

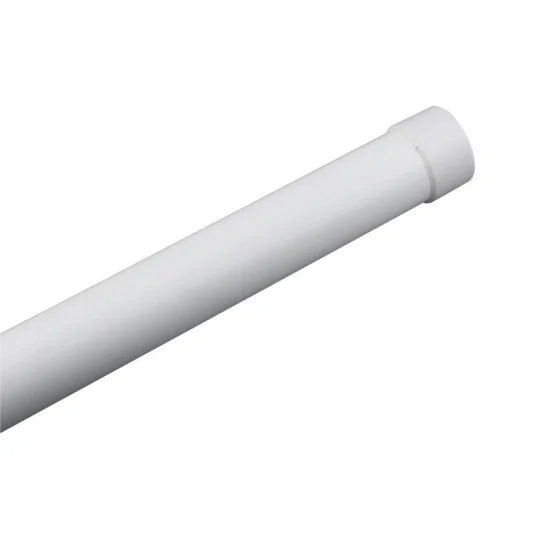

5.All-Weather PVC Construction: Withstands extreme temperatures from -40℃ to +60℃ and wind speeds up to 60m/s. The durable PVC radome ensures reliable performance in harsh outdoor environments year-round.

Product Detail

Electrical Performance
Frequency Range (MHz)	3400～3800
Bandwidth (MHz)	400
Polarization	Vertical
Voltage Standing Wave Ratio (VSWR)	≤1.5
Gain (dBi)	8
Horizontal 3dB Beamwidth (°)	360
Vertical 3dB Beamwidth (°)	17
Maximum Power (W)	100
Input Impedance (Ω)	50
Ground Protection	DC
Mechanical & Environmental Specifications
Connector Type	2×N-K
Antenna Dimensions (mm)	Φ55×550
Antenna Weight (excluding clamp, kg)	1.5
Radome Material	PVC (Polyvinyl Chloride)
Operating Temperature (℃)	-40～+60
Maximum Wind Speed (m/s)	60
Installation Method	Pole-Mounted
Pole Diameter (mm)	Φ40~Φ90
