Product Name |

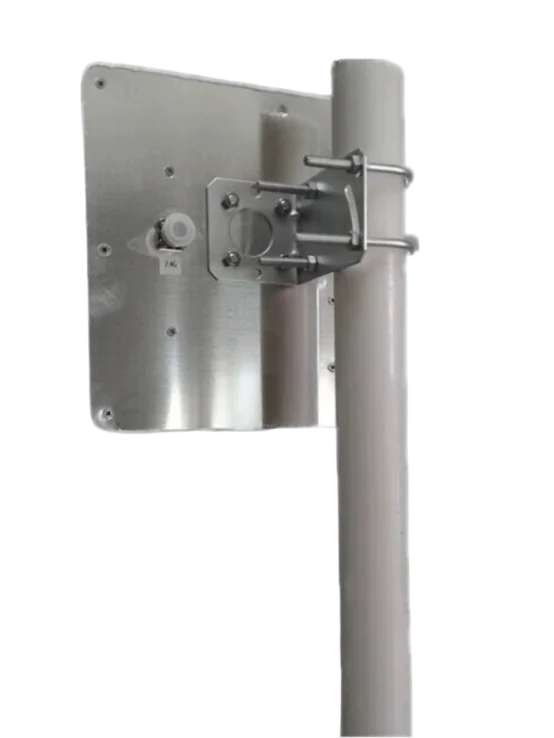

Directional Miniature Panel Antenna |
|||
Electrical Indicators |
YW-DF2458-60V09DB |
|||
Frequency Range (MHz) |
2400～2500 |
5150～5850 |
||
Polarization |
Vertical |
Vertical |
||
Gain (dBi) |
8 |
10 |
||
Electrical Downtilt (°) |
0 |
0 |
||
Half Power Beamwidth (°) |
Horizontal: 80 |
Horizontal: 45 |
||
Vertical: 60 |
Vertical: 50 |
|||
First Upper Side Lobe Suppression (dB) |
/ |
/ |
||
Front-to-Back Ratio (dB) |
≥15 |
≥15 |
||
Input Impedance (Ω) |
50 |
50 |
||
Voltage Standing Wave Ratio |
≤2 |
≤2 |
||
Maximum Power (W) |
50 |
50 |
||
Mechanical and Environmental Indicators |
||||
Connector Type |
NK/SMAK |
|||
Connector Position |
Back |
|||
Antenna Size (Length×Width×Thickness: mm) |
103×81×20 |
|||
Antenna Weight (kg) |
Approx. 0.2 |
|||

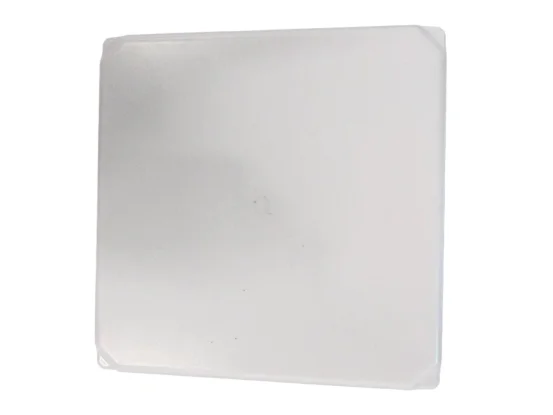

Radome Material |
ABS |
|||
Radome Color |
White |
|||
Mechanical Adjustable Tilt (°) |
0～30 |
|||
Operating Temperature (℃) |
-40～60 |
|||
Ultimate Wind Speed (m/s) |
60 |
|||
Boom Diameter (mm) |
35～50 |
|||

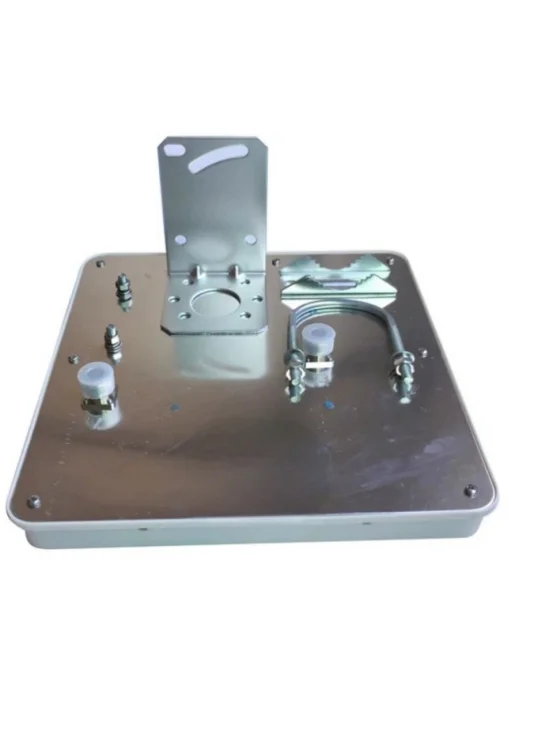

Mounting Part Model |
MK004E L-shaped Steel Clamp |
|||
