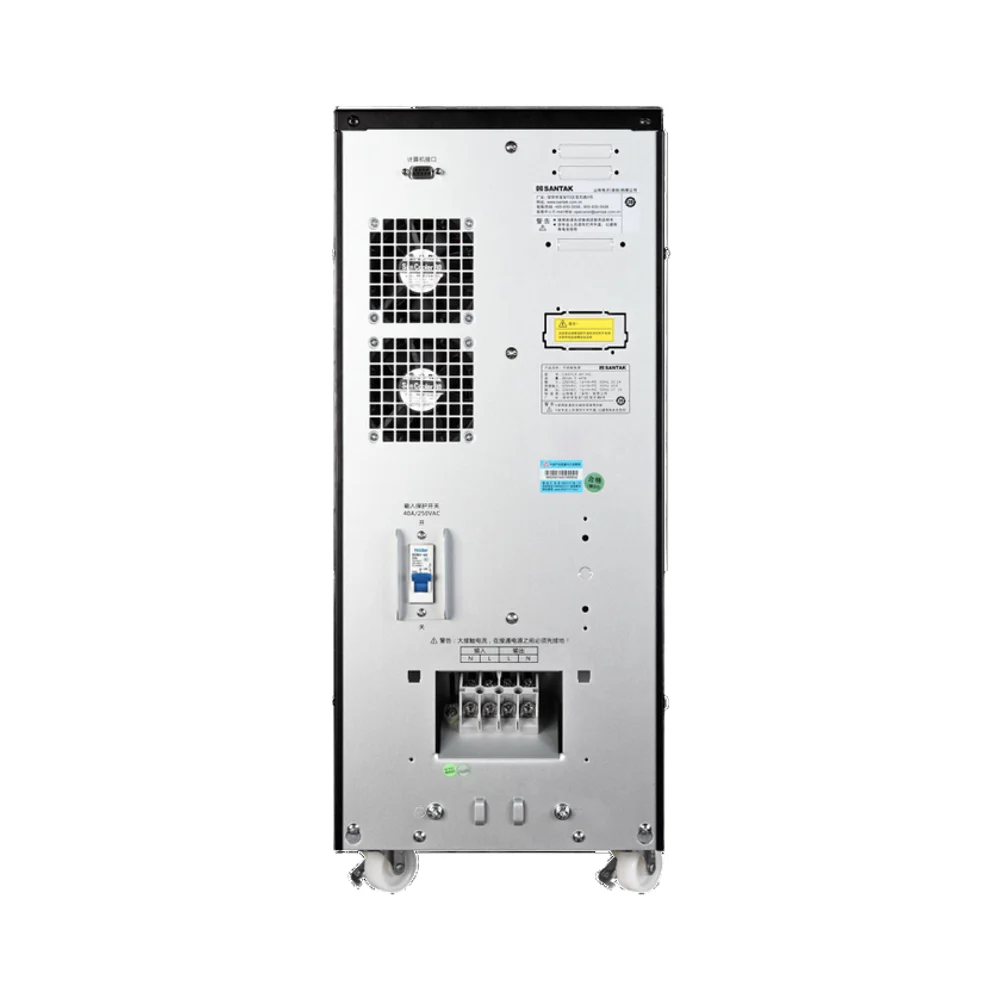

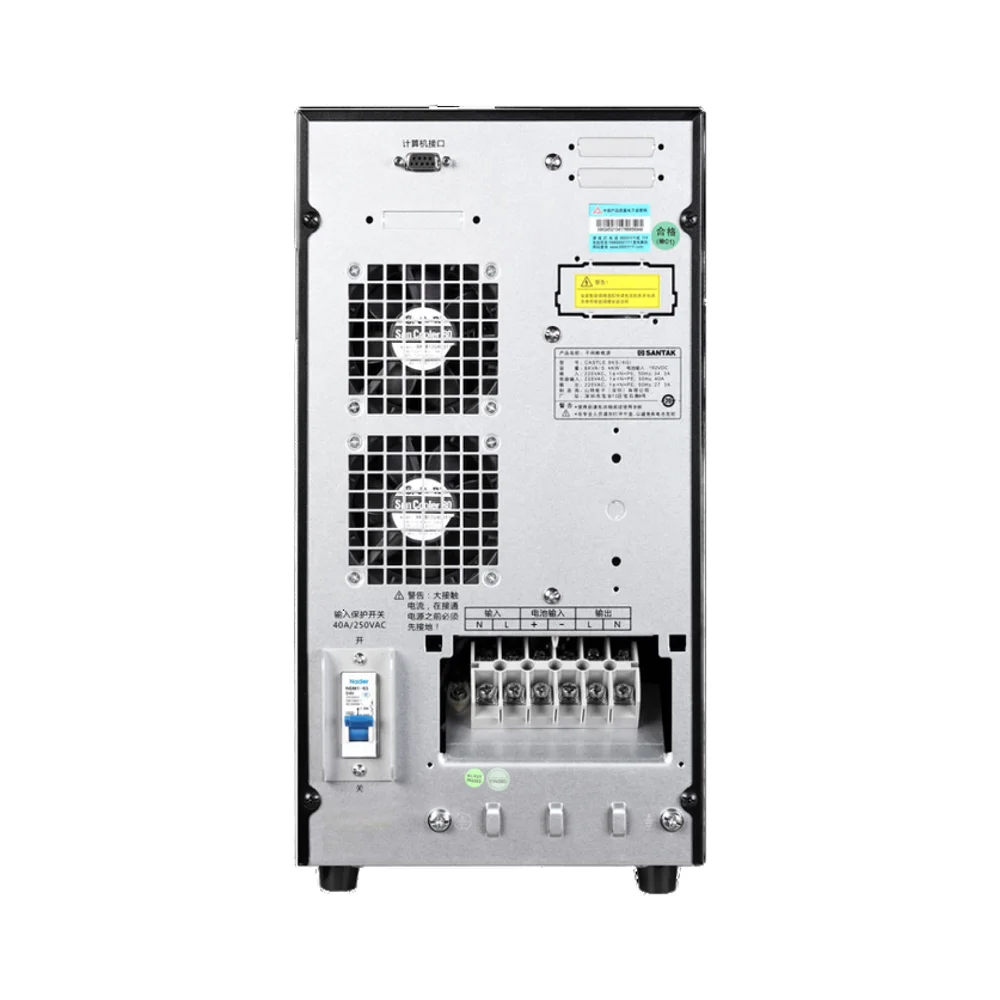

6kVA 10kVA UPS with Lead Acid Battery Ultra-Low Noise Uninterruptible Power Supply

6kVA 10kVA UPS with Lead Acid Battery Ultra-Low Noise Uninterruptible Power Supply

Description

[email protected]

Description

Product Description

Yoongwin Situation Awareness Technology Co., Ltd., founded in 2007 in Nanjing Economic and Technological Development Zone with a registered capital of RMB 60.06 million, controls eight medium - sized tech enterprises. Its main business spans thin - film circuits, antenna & feeder products, etc., and it's involved in industrial Internet security and electromagnetic space protection.
As a member of multiple associations, it holds dual - software and ISO2700 info security certifications. With over 100 patents, it was recognized as a Nanjing Gazelle Enterprise from 2020 - 2022, indicating continuous growth.

For SANTAK Online 6kVA 10kVA UPS with Lead Acid Battery Ultra-Low Noise Uninterruptible Power Supply factory

Product Detail

Model		C6K	C6KS	C10K	C10KS
Capacity	VA/W	6000VA/5400W			10000VA/9000W
Input	Voltage Range	120 - 275VAC
		Frequency Range	40Hz - 70Hz
		Connection	Single-phase Two-wire + Ground
		THDI (Input Total Harmonic Distortion)	< 5% Non-linear Load
		Input Power Factor	≥0.99
Output	Output Voltage	220VAC
		Output Accuracy	±1%
		Connection	Single-phase Two-wire + Ground
		Output Frequency	50/60Hz±0.2Hz
		Output THD	<2% THD Linear Load <4% THD Non-linear Load
		Output THD	<2% THD Linear Load <4% THD Non-linear Load
		Output Waveform	Pure Sine Wave Output
		Overload Capacity	Utility Mode	10min @ 105%-125% Load 30s @ 125%-150% Load 0.5s @ >150% Load
			Utility Mode
							Battery Mode
Overall Efficiency	Utility Mode	Up to 94%			Up to 94%
Overall Efficiency		ECO High-efficiency Mode	Up to 98%			Up to 98%
Battery and Charging Parameters	The Number of Battery Cells	15PCS	16PCS	16PCS	16PCS
		Battery Type	12V/7Ah			12V/9Ah
		Backup Time	>4 minutes	Depends on User Requirements and Configuration	>3 minutes	Depends on User Requirements and Configuration
		Recharge Time	7 hours to recharge to 90%			7 hours to recharge to 90%
Display	LCD + LED	Digitally display load, battery level, input and output parameters, and display the operating mode in text and graphics
Display	LCD + LED
Physical Parameters	Dimensions (W×H×D) mm	248x500x565①	212x500x420	248x500x565①	212x500x420
Physical Parameters		Weight (kg)	59	14	62	16
Environmental Parameters	Operating Ambient Temperature	0 - 40°C
		Operating Ambient Humidity	20 - 90% (Non - condensing)
		Noise	<50dB @ 1-meter Distance
Execution Standard		IEC61000, IEC62040, GB7260, GB4943
Product Certification		TLC/Energy-saving Certification
Communication Interface and Software	RS232	Standard
		Smart Card (Optional)	Optional NMC Card, CMC Card, AS400 Card or USB Card, SPCC Card (Requires Simultaneous Purchase of Smart Card Socket)
		EPO (Optional)	Emergency Power-off
		Software	Winpower
Note:①Height without wheels; height with wheels is 616.
