The Yoongwin Outdoor Wi-Fi Access Points/Routers offer a reliable and high-performance solution for extending your Wi-Fi network outdoors. With a frequency range of 2400-2500 MHz, these access points/routers ensure a strong and stable connection for all your outdoor Wi-Fi needs.
Equipped with a durable and weather-resistant design, the Yoongwin Outdoor Wi-Fi Access Points/Routers are built to withstand harsh outdoor conditions, making them perfect for use in gardens, patios, or outdoor workspaces. Whether you're hosting a backyard barbecue or working from a remote outdoor location, these access points/routers will keep you connected and online.
The polarization feature of the Yoongwin Outdoor Wi-Fi Access Points/Routers enhances the signal strength and coverage, ensuring maximum connectivity and minimal interference. This means you can enjoy seamless and uninterrupted Wi-Fi access across your outdoor space, without any dropouts or lag.
Installation and setup are quick and easy with the Yoongwin Outdoor Wi-Fi Access Points/Routers, thanks to their user-friendly interface and straightforward instructions. Simply connect the access point/router to your existing network, configure the settings, and you're ready to go. No complex installation or technical expertise required.
Whether you're looking to extend your home Wi-Fi network to the backyard, provide Wi-Fi access to an outdoor event, or set up a reliable network for outdoor work purposes, the Yoongwin Outdoor Wi-Fi Access Points/Routers are the perfect solution. With their high frequency range and polarization feature, these access points/routers deliver superior performance and connectivity in any outdoor setting.
The Yoongwin Outdoor Wi-Fi Access Points/Routers are a must-have for anyone looking to extend their Wi-Fi network outdoors. With their robust design, high frequency range, and polarization feature, these access points/routers offer reliable and seamless connectivity for all your outdoor Wi-Fi needs. Upgrade your outdoor Wi-Fi network today with Yoongwin
Electrical Specifications |
M3D24-65VX15A |
Frequency Range (MHz) |
2400～2500 |
Polarization |
Vertical/±45° |
Gain (dBi) |
15 |
Electrical Downtilt ° |
0 |
Half Power Beam width ° |
Horizontal: 65 |
Vertical: 16 |
|
First Upper Side Lobe Suppression (dB) |
/ |
Front-to-Back Ratio (dB) |
≥23 |
Isolation (dB) |
≥28 |
Input Impedance (Ω) |
50 |
VSWR |
≤1.5 |
Maximum Power (W) |
100 |
Lightning Protection |
DC Ground |
Mechanical & Environmental Specifications |
Mechanical & Environmental Specifications |

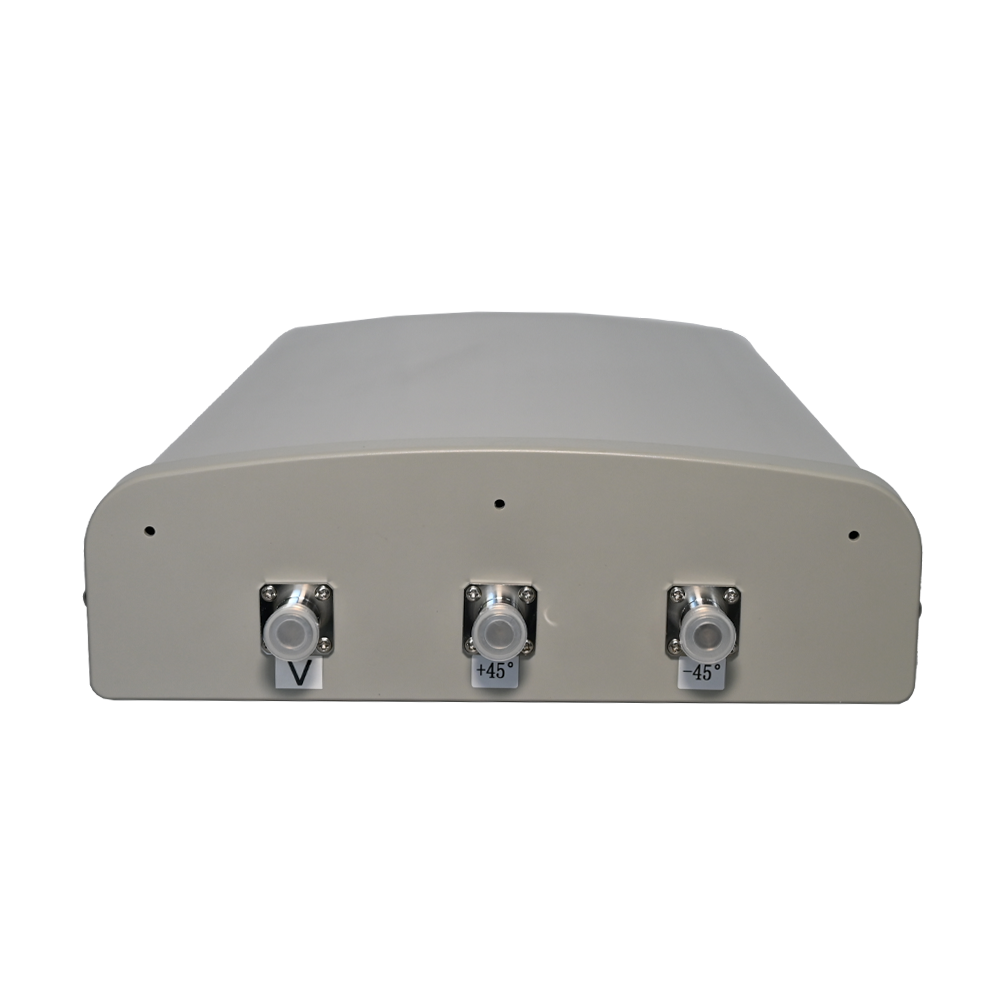

Connector Type |
3×N Female |
Connector Position |
Bottom |
Antenna Dimensions (L×W×H: mm) |
420×280×85 |
Antenna Weight (kg) |
2.3 |
Radome Material |
UPVC |
Radome Color |
Gray |
Mechanical Tilt (°) |
0～15 |
Operating Temperature (℃) |
-40～60 |
Extreme Wind Speed (m/s) |
60 |
Pole Diameter (mm) |
35～75 |
Mounting Bracket Model |
MK003 |
Q: Are you a manufacturer or a trading company
A: We have been professional antenna manufacturer for 18 years
Q: Have gps gsm combo antenna 100% assembles well in stock
A: No, all gps gsm combo antenna will be newly assembled according to your orders including the samples
Q: Could I use my own LOGO or design on goods
A: Yes, customized logo and design on mass production are available
Q: What's the payment term
A: T/T, AliPay, Paypal, Afterpay, Klarna etc
Q: What certifications do you have
A: Certified by FCC, CE, RoHS, ISO available upon request
Q: Where is your factory located? Can I visit your factory
A: Factory address: 2nd Floor, Building D4-1, Hongfeng Science and Technology Park, Nanjing Economic and Technological Development Zone, Jiangsu Province
Just call us, we will pick you up with no delay
