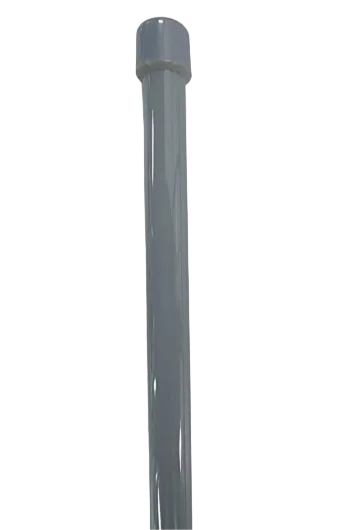

FRP Radome 30° Vertical Beam 6dBi 403-413MHz Professional UHF Base Station Antenna

FRP Radome 30° Vertical Beam 6dBi 403-413MHz Professional UHF Base Station Antenna

Description

[email protected]

Description

Product Description

1.Dedicated 403-413MHz UHF Band Operation: Specifically designed for professional communication systems. Delivers reliable 6dBi gain performance for clear, long-range transmissions in government and industrial applications.

2.True 360° Omnidirectional Coverage: Ensures consistent signal reception from all directions without the need for antenna adjustment. Ideal for base stations requiring uniform coverage in all directions.

3.Lightweight Yet Rugged Construction: Weighing only 0.5kg with a slim φ22×1200mm profile, this fiberglass antenna combines easy handling with durable performance. Withstands 60m/s winds and operates from -40℃ to +60℃.

4.Optimized 30° Vertical Beamwidth: Provides the perfect balance between coverage distance and signal strength. Superior ground coverage compared to narrower beam antennas, ensuring better performance for typical communication scenarios.

5.Professional N-K Connector with DC Grounding: Features a reliable, weather-resistant connector designed for base station use.Built-in lightning protection ensures equipment safety in outdoor installations.

Product Detail

Electrical Specifications
Frequency Range (MHz)	403～413
Polarization	Vertical
Voltage Standing Wave Ratio (VSWR)	≤1.5
Gain (dBi)	6
Electrical Downtilt (°)	0
Horizontal 3dB Beamwidth (°)	360
Vertical 3dB Beamwidth (°)	30
Maximum Power (W)	100
Input Impedance (Ω)	50
Ground Protection	DC
Mechanical Parameters
Connector Type	N-K
Antenna Dimensions (mm)	φ22×1200
Antenna Weight (kg)	0.5
Radome Material	Fiberglass Reinforced Plastic (FRP)
Operating Temperature (℃)	-40～+60
Maximum Wind Speed (m/s)	60

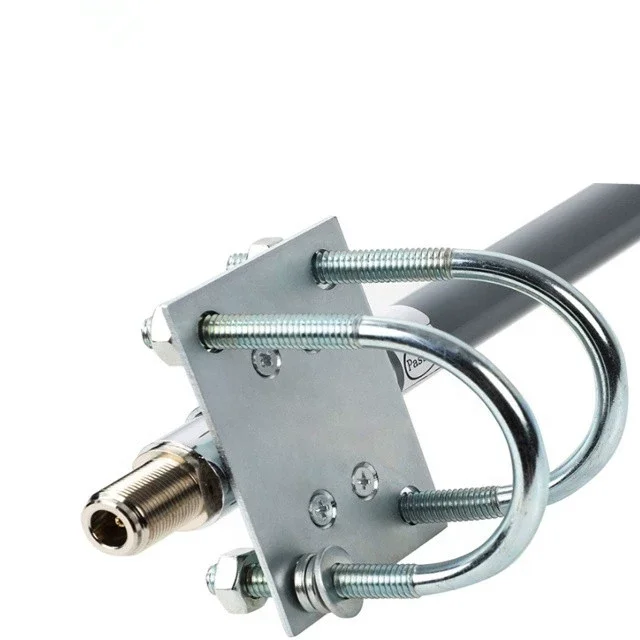

Installation Method	Pole-Mounted
Pole Diameter (mm)	Φ30～Φ50
