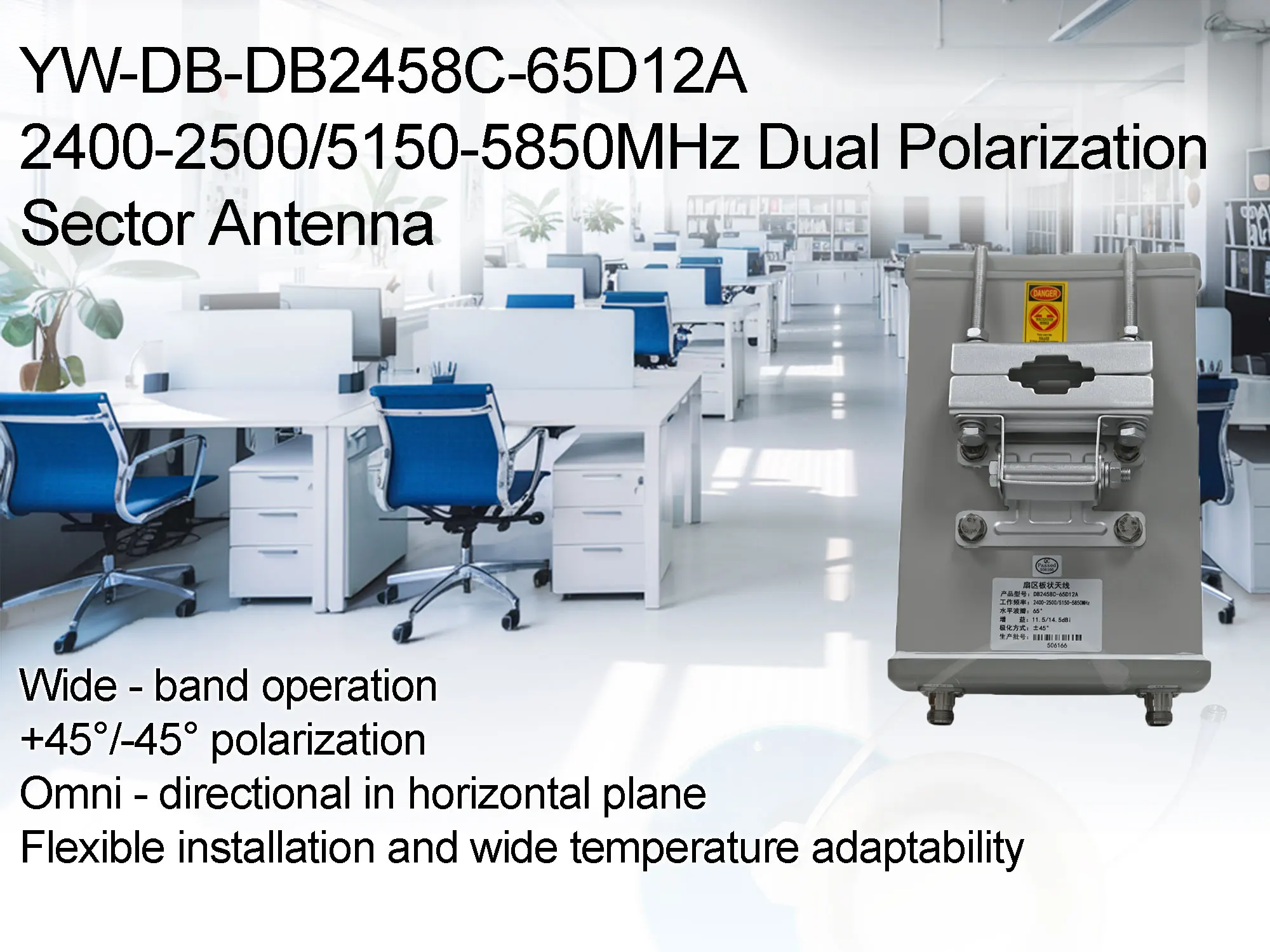

The Yoongwin High-Efficiency 14.5dBi Dual Pol Sector IP65 Panel Antenna is a cutting-edge communication solution designed for optimal performance in 4G LTE and 5G NR networks. With a frequency range of 5150-5850MHz, this antenna is perfect for applications that require high-speed data transfer and reliable connectivity.
This dual polarization sector panel antenna features a high-gain of 14.5dBi, ensuring a strong signal and extended coverage area. Whether you are looking to provide wireless internet access in a busy urban area or establish a point-to-point communication link in a rural location, the Yoongwin antenna delivers reliable and consistent performance.
The IP65 rating makes this antenna weatherproof and suitable for outdoor installations in challenging environments. Whether it's rain, snow, or extreme temperatures, the Yoongwin antenna is built to withstand the elements and provide uninterrupted communication.
Installation is quick and easy, thanks to the lightweight and compact design of the antenna. With multiple mounting options available, you can easily integrate this antenna into your existing network infrastructure and start enjoying the benefits of high-efficiency communication.
With the rise of 5G technology and the increasing demand for high-speed internet connectivity, the Yoongwin High-Efficiency 14.5dBi Dual Pol Sector IP65 Panel Antenna is the ideal solution for businesses and individuals looking to stay connected and productive. Whether you are a telecommunications provider, a corporate entity, or a residential user, this antenna offers a cost-effective and reliable option for enhancing your communication capabilities.
The Yoongwin High-Efficiency 14.5dBi Dual Pol Sector IP65 Panel Antenna is a versatile and reliable communication solution that delivers high performance, durability, and ease of installation. Upgrade your communication network today with the Yoongwin antenna and experience faster data speeds, better coverage, and improved connectivity for all your 4G LTE and 5G NR devices
Electrical Specifications |
DB2458C - 65D12A |
DB2458C - 65D12A |
|
Frequency Range (MHz) |
2400～2500 |
5150～5850 |
|
Polarization |
±45° |
±45° |
|
Gain (dBi) |
11.5 |
14.5 |
|
Electrical Downtilt (°) |
0 |
0 |
|

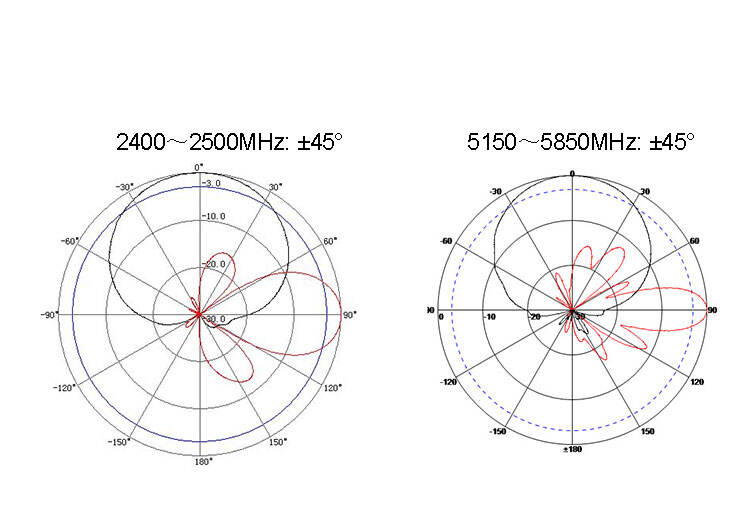

Half Power Beamwidth (°) |
Horizontal: 65 |
Horizontal: 65 |
|
Vertical: 30 |
Vertical: 12 |
||
Port Isolation (dB) |
≥20 |
≥20 |
|
Front - to - Back Ratio (dB) |
≥20 |
≥20 |
|
Input Impedance (Ω) |
50 |
50 |
|
VSWR |
≤1.5 |
≤2 |
|
Maximum Power (W) |
50 |
50 |
|
Lightning Protection |
DC Ground |
DC Ground |
Mechanical & Environmental Specifications |
Mechanical & Environmental Specifications |

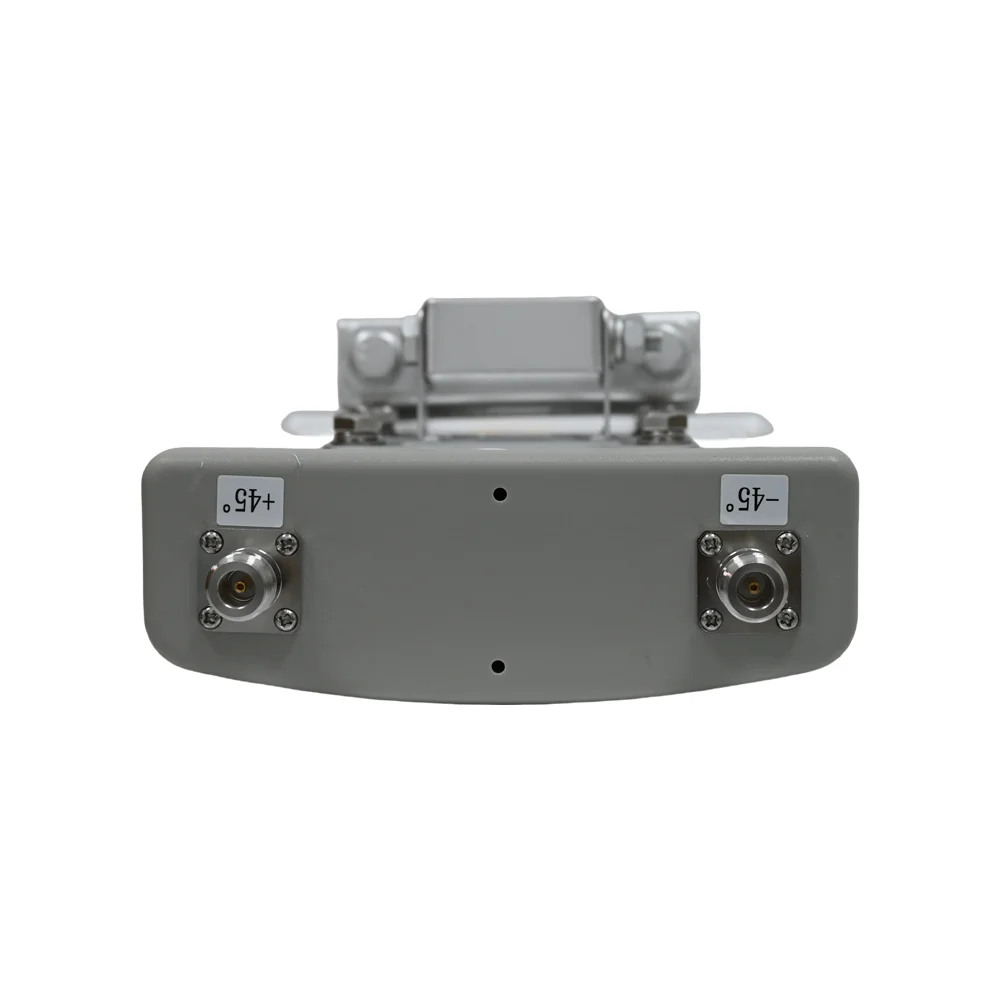

Connector Type |
2×N Female |
Connector Position |
Bottom |
Antenna Dimensions (L×W×H: mm) |
250×167×55 |
Packaging Dimensions (mm) |
295×180×125 |
Antenna Weight (kg) |
Approx. 1.3 |
Radome Material |
UPVC |
Radome Color |
Gray |
Mechanical Tilt (°) |
0～30 |
Operating Temperature (℃) |
-40～60 |
Extreme Wind Speed (m/s) |
60 |
Pole Diameter (mm) |
35～75 |
Mounting Bracket Model |
MK003 |
Q: Are you a manufacturer or a trading company
A: We have been professional antenna manufacturer for 18 years
Q: Have gps gsm combo antenna 100% assembles well in stock
A: No, all gps gsm combo antenna will be newly assembled according to your orders including the samples
Q: Could I use my own LOGO or design on goods
A: Yes, customized logo and design on mass production are available
Q: What's the payment term
A: T/T, AliPay, Paypal, Afterpay, Klarna etc
Q: What certifications do you have
A: Certified by FCC, CE, RoHS, ISO available upon request
Q: Where is your factory located? Can I visit your factory
A: Factory address: 2nd Floor, Building D4-1, Hongfeng Science and Technology Park, Nanjing Economic and Technological Development Zone, Jiangsu Province
Just call us, we will pick you up with no delay
