Product Name |

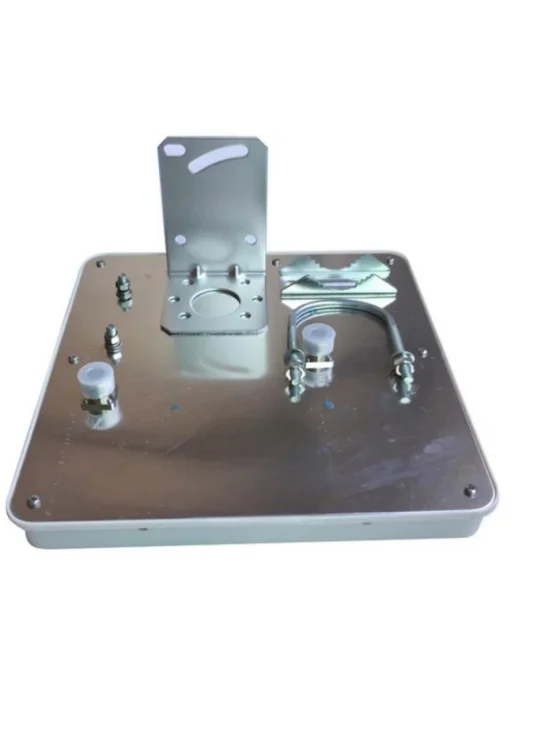

Directional Miniature Panel Antenna |
|
Electrical Specifications |
YW-DF58-60VH15DA |
|
Frequency Range (MHz) |
5150～5850 |
|
Polarization |
Vertical/Horizontal |
|
Gain (dBi) |
15 |
|
Half-power Beamwidth (°) |
Horizontal: 60 |
|
Vertical: 15 |
||
Port Isolation (dB) |
≥25 |
|
Front-to-Back Ratio (dB) |
≥25 |
|
Input Impedance (Ω) |
50 |
|
Voltage Standing Wave Ratio |
≤2 |
|
Maximum Power (W) |
50 |
|
Lightning Protection |
DC Ground |
|
Mechanical & Environmental Specifications |
Mechanical & Environmental Specifications |
|
Connector Type |
2×N Female or as specified by customer |
|
Connector Position |
Back |
|
Antenna Dimensions (Length×Width×Thickness: mm) |
172×92×18 |
|
Antenna Weight (kg) |
Approx. 0.2 |
|
Radome Material |
ABS |
|
Radome Color |
White |
|
Mechanical Adjustable Tilt (°) |
0～30 |
|
Operating Temperature (℃) |
-40～60 |
|
Extreme Wind Speed (m/s) |
60 |
|
Mast Diameter (mm) |
35～50 |
|
Mounting Bracket Model |
MK004E L-shaped Steel Clamp |
|
