Product Description
Product Detail
product high end flagship dual channel server developed based on the intel whitley platform ice lake processor for data centers-2
1. Product Overview

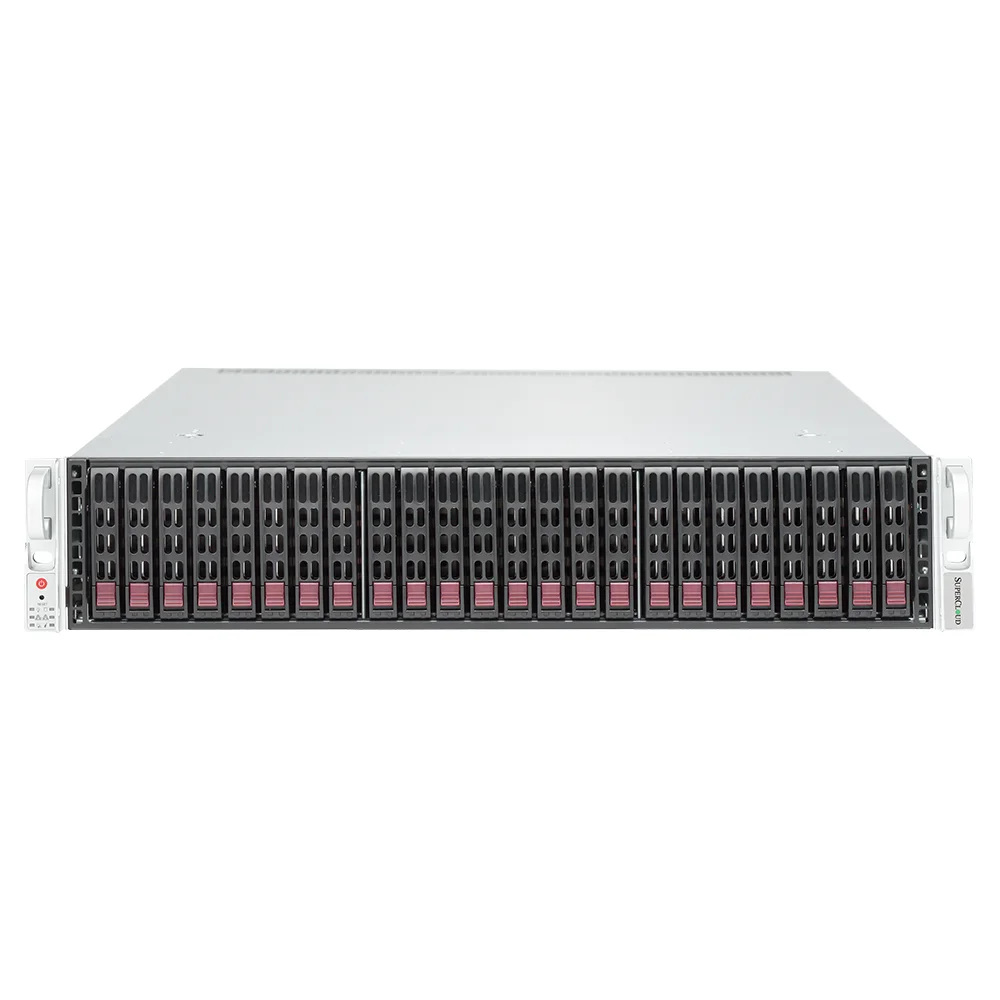

*R5215 G12 is a high-end flagship dual channel server developed based on the Intel Whitley platform Ice Lake processor.The platform is equipped with 2 brand new Xeon Ice Lake processors, providing support for 32 memory slots and BPS memory, with a maximum frequency of 3200Mhz, and can support 8-channel read, comprehensively improving application performance and enhancing business stability.The platform can support up to 16 3.5-inch hard drives and 4 2.5-inch small drives, which can be flexibly adjusted according to customers' actual business needs.The platform can support up to 8 PCIe 4.0 slots, which can meet the needs of PCIe 4.0 devices such as GPU cards, network cards, RAID cards, and network cards. It has strong scalability and easy management characteristics, making it very suitable for core business areas such as cloud computing, high-performance computing, and distributed storage.
2. Product Features
2.1 product positioning
* To help users build simple and efficient data center infrastructure for communication operators, the Internet, government agencies and other industries.
2.2 High performance:

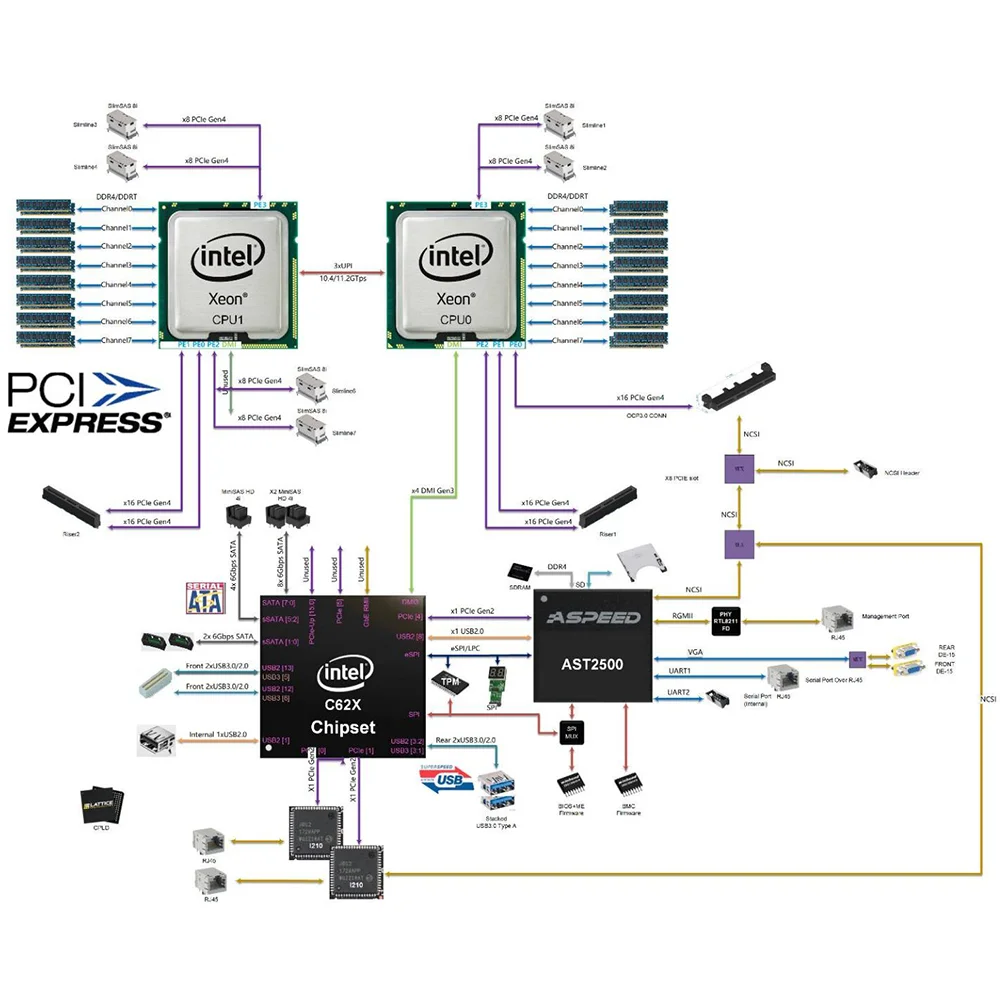

* Developed on the Intel Whitley platform with dual Ice Lake processors, the CPUs are interconnected via three UPI buses to provide higher performance for users' various applications;Supports up to 32 3200MT/s DDR4 ECC memories, and supports RDIMM (Registered Dual Inline Memory Module) and LRDIMM (Load Reduced DIMM) types, providing excellent speed, high availability, and up to 4TB of memory capacity.
2.3 Diversity:
* Supporting multiple flexible hard disk configuration schemes, providing elastic and scalable storage capacity space to meet the needs and upgrade requirements of different storage capacities;Supports onboard network cards and flexible IO cards, providing a wide range of network interfaces;Supports up to 8 PCIe 4.0 standard expansion slots.
2.4 Manageability:
* By using the BMC (BMC Integrated Management Module) web management interface and the UID/HLY LED indicator lights on the panel, technicians can quickly locate components that have already malfunctioned (or are currently malfunctioning), simplifying maintenance work, accelerating problem-solving speed, and improving system usability;The onboard BMC integrated management module (BMC) can continuously monitor system parameters and trigger alarms;Supports edge band management (NC-SI) features, supports the reuse of management network ports and business network ports, and protects customer investments.
2.5 Low power consumption:
* Efficient single board VRD power supply reduces the loss of DC power conversion on the motherboard;Fully optimized system cooling design, efficient and energy-saving system cooling fan, reducing system cooling energy consumption.
3. Product Specification
3.1 Host performance
Processor
 Supports 2 Intel chips® Xeon® Ice Lake series processor, TDP of 105~270W, Up to 3 UPI 11.2 GT/s
Chipset
Intel®C621A series chipset
Memory type
 Supports DDR4 ECC 3200/2933/2666/2400Hz, with a memory voltage of 1.2V
(The operating frequency varies depending on the CPU and memory configuration)
Slot and capacity
 32 memory slots (supporting a single capacity of 128GB RDIMM/LRDIMM memory) can support 8TB Intel®Optane™Persistent Storage 200
Series
Hard disk
 The front end can support up to 12 3.5-inch hot swappable hard drives (8SAS/SATA+4SAS/SATA/U2NVMe SSD)
 Rear expandable up to 4 2.5-inch SAS/SATA/NVMe hard drives
Memory Controller
  Optional SAS controller (12G), supports RAID0, 1, 10, can cascade JBOD expansion cabinets
Optional RAID controller (12G) supports up to 2G cache, RAID0/1/10/5/50/6/60, expandable cache data protection kit, and high-speed
cache protection acceleration function
Network
 Integrated with 2 high-performance Gigabit Ethernet ports (RJ45 interface), supporting NC-SI and PXE functions
 Support 1 OCP3.0 network card expansion
BMC Displays
AST2500
Security
support for TCM/TPM 2.0 security module
 3.2 Scalable Performance
I/O expansion
 Supports up to 8 PCIe 4.0 slots
Supports 2 PCI-E 4.0 x16 and 6 PCI-E 4.0 x8
Or 4 PCI-E 4.0 x16, 2 PCI-E 4.0 x8 (supporting dual width GPU)
Expansion storage
 Can be optionally equipped with SAS HBA/SAS RAID/FCHBA cards, enabling external disk
arrays.Or JBOD expansion cabinets
Peripheral Interface
 Prerequisite:
2 x USB 3.0 interface
1 x VGA interface
Rear: 2 x USB 3.0 ports
1 x VGA interface
1xRJ45 serial port
1 x RJ45 system management interface
3.3 Chassis power supply
Chassis
 Super Cloud 2U Server Chassis
Height 87mm (H) x Width 447mm (W) x Depth 800mm (D)
Optional
800W/1600W Platinum Redundant Power Supply for Power Supply;
 3.4 Random accessories
Rail
 A set of standard rack mounted guide rails
Power line
 National standard AC power cord
 3.5  Operating System compatibility
 Operating System
 Microsoft Windows Sever Red Hat Enterprise Linux
SUSE Linux Enterprise Server CentOS
Please refer to the compatibility list or consult SuperCloud Company for the support of the operating system under different
configurations.
3.6 Environmental adaptability
 Temperature Range
 Working at 5 ° C -35 ° C
Storage and transportation -40 ℃~70 ℃
 Relative Humidity Range
 During work, 8% to 90% RH (non condensing) is used for storage and transportation, while 5% to 95% RH (non condensing) is used
