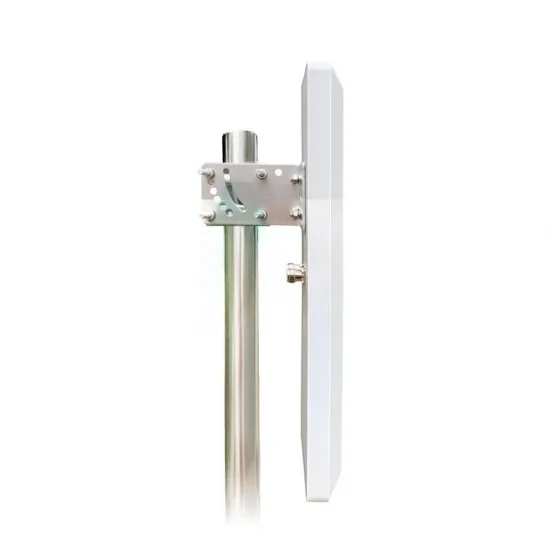

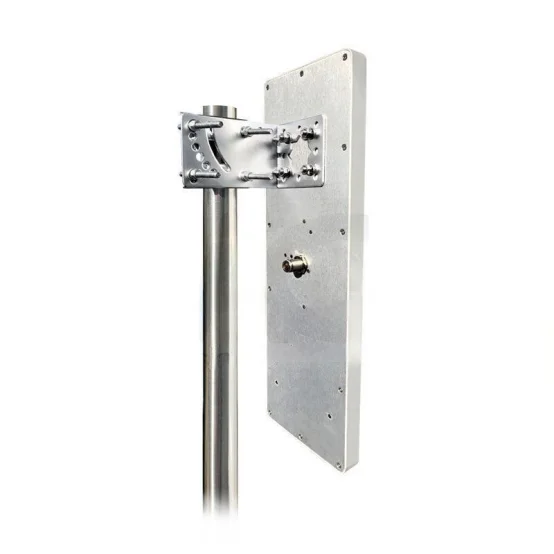

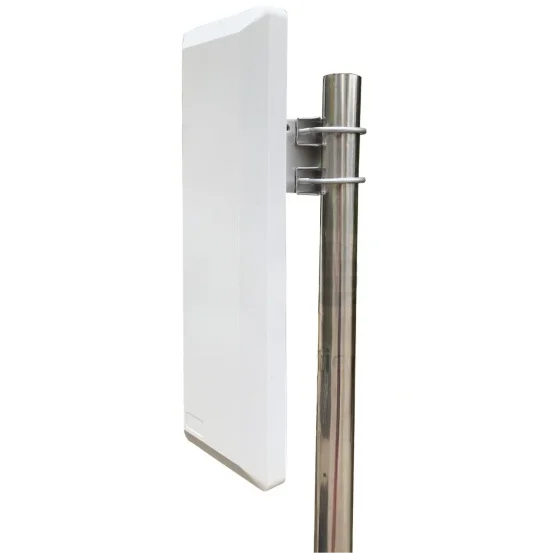

High Gain White 30mm Thin 5GHz 16dBi Sector MIMO Panel Antenna 90 Degree Dual Polarized Sector Antenna
High Gain White 30mm Thin 5GHz 16dBi Sector MIMO Panel Antenna 90 Degree Dual Polarized Sector Antenna
High Gain White 30mm Thin 5GHz 16dBi Sector MIMO Panel Antenna 90 Degree Dual Polarized Sector Antenna
High Gain White 30mm Thin 5GHz 16dBi Sector MIMO Panel Antenna 90 Degree Dual Polarized Sector Antenna
High Gain White 30mm Thin 5GHz 16dBi Sector MIMO Panel Antenna 90 Degree Dual Polarized Sector Antenna
High Gain White 30mm Thin 5GHz 16dBi Sector MIMO Panel Antenna 90 Degree Dual Polarized Sector Antenna
High Gain White 30mm Thin 5GHz 16dBi Sector MIMO Panel Antenna 90 Degree Dual Polarized Sector Antenna
High Gain White 30mm Thin 5GHz 16dBi Sector MIMO Panel Antenna 90 Degree Dual Polarized Sector Antenna
High Gain White 30mm Thin 5GHz 16dBi Sector MIMO Panel Antenna 90 Degree Dual Polarized Sector Antenna
High Gain White 30mm Thin 5GHz 16dBi Sector MIMO Panel Antenna 90 Degree Dual Polarized Sector Antenna
High Gain White 30mm Thin 5GHz 16dBi Sector MIMO Panel Antenna 90 Degree Dual Polarized Sector Antenna
High Gain White 30mm Thin 5GHz 16dBi Sector MIMO Panel Antenna 90 Degree Dual Polarized Sector Antenna

High Gain White 30mm Thin 5GHz 16dBi Sector MIMO Panel Antenna 90 Degree Dual Polarized Sector Antenna

Get a Quote Contact Us
  • Description
product high gain white 30mm thin 5ghz 16dbi sector mimo panel antenna 90 degree dual polarized sector antenna248-1

[email protected]
Inquiry
Product Description
product high gain white 30mm thin 5ghz 16dbi sector mimo panel antenna 90 degree dual polarized sector antenna248-2
product high gain white 30mm thin 5ghz 16dbi sector mimo panel antenna 90 degree dual polarized sector antenna248-3

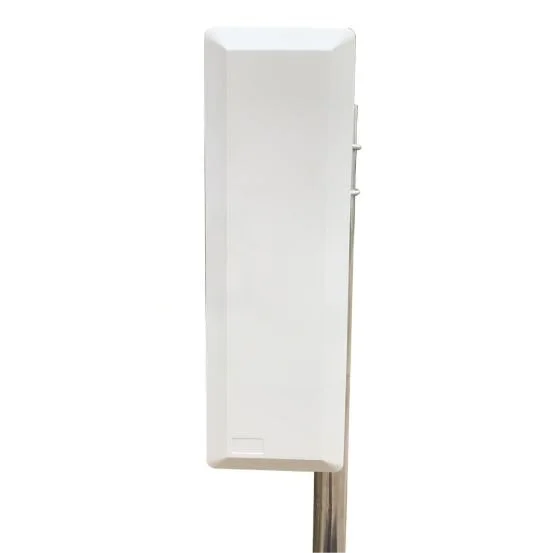

product high gain white 30mm thin 5ghz 16dbi sector mimo panel antenna 90 degree dual polarized sector antenna248-4
Product Detail
Product Name
Sector-Directed Panel Antenna
Electrical Index
DB58-90VH16C
Frequency Range (MHz)
5150–5850
Polarization
Vertical/Horizontal
Gain (dBi)
2×16
Electrical Down-tilt (°)
0
Half-power Beamwidth (°)
Horizontal: 90
Vertical: 8
Port Isolation (dB)
≥28
Front-to-Back Ratio (dB)
≥20
Input Impedance (Ω)
50
Voltage Standing Wave Ratio (VSWR)
≤2.5
Maximum Power (W)
50
Lightning Protection
DC Ground
Mechanical & Environmental Index
Connector Type
2×N Female
Connector Position
Rear
Antenna Dimensions (L×W×H: mm)
450×140×30
Antenna Weight (kg)
Approximately 1.2
Radome Material
ABS
Radome Color
White
Mechanical Adjustable Tilt (°)
0–15
Operating Temperature (℃)
–40–60
Ultimate Wind Speed (m/s)
60
Mast Diameter (mm)
35–50
Mounting Part Model
MK004
