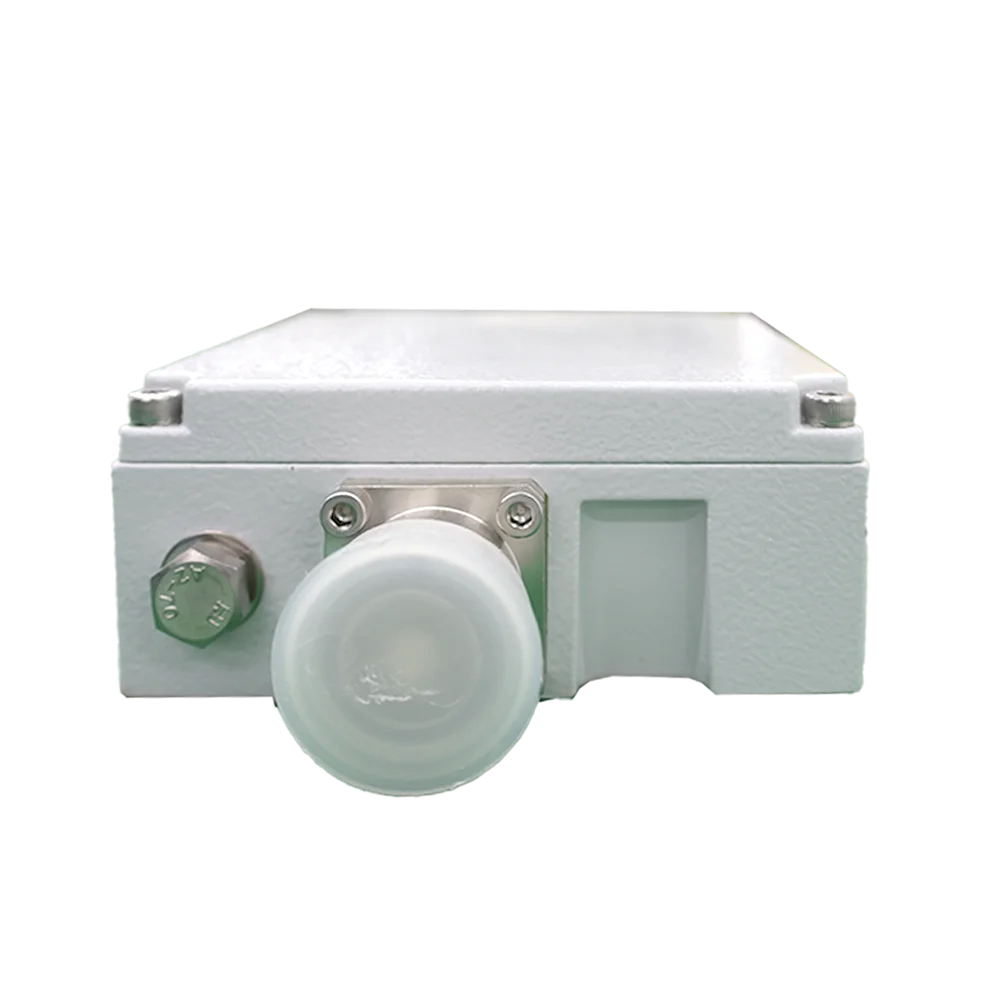

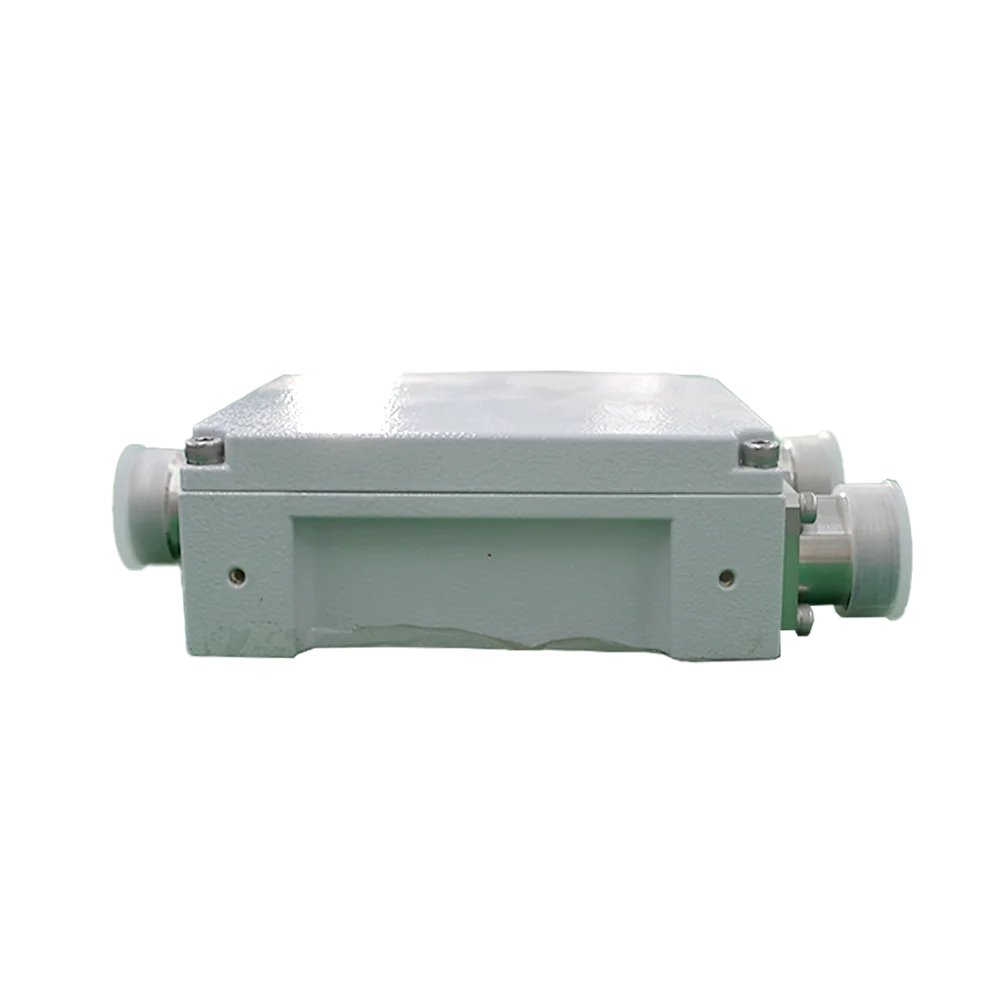

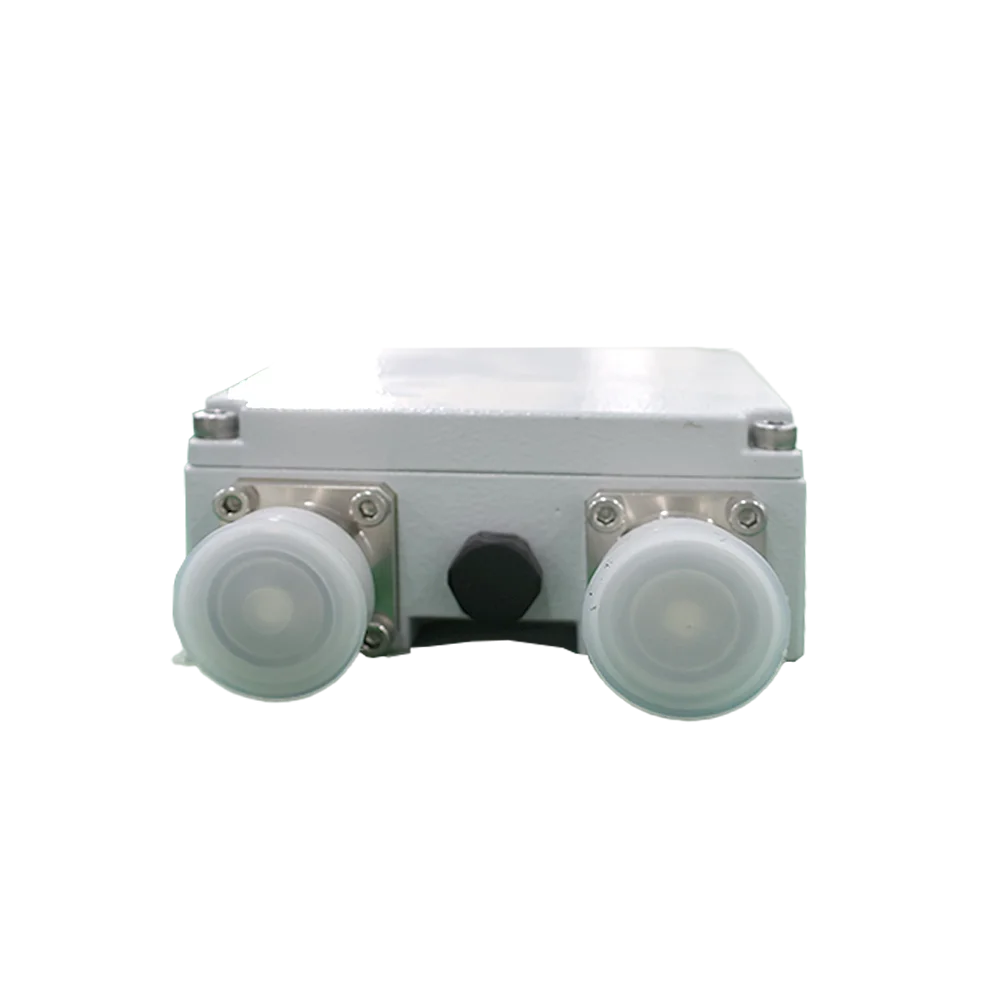

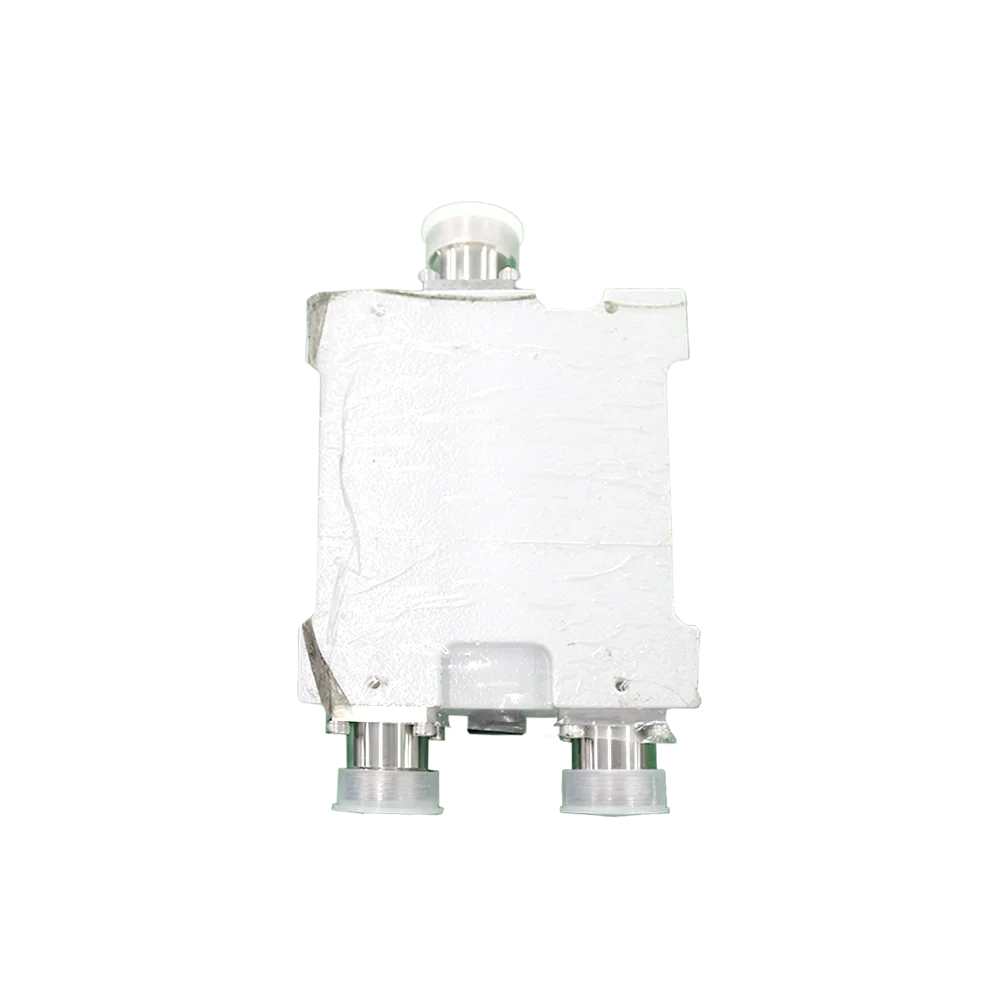

High Isolation ≥80dB 1730-1880MHz & 3300-3700MHz DIN-Type Dual-Band Combiner
High Isolation ≥80dB 1730-1880MHz & 3300-3700MHz DIN-Type Dual-Band Combiner
High Isolation ≥80dB 1730-1880MHz & 3300-3700MHz DIN-Type Dual-Band Combiner
High Isolation ≥80dB 1730-1880MHz & 3300-3700MHz DIN-Type Dual-Band Combiner
High Isolation ≥80dB 1730-1880MHz & 3300-3700MHz DIN-Type Dual-Band Combiner
High Isolation ≥80dB 1730-1880MHz & 3300-3700MHz DIN-Type Dual-Band Combiner
High Isolation ≥80dB 1730-1880MHz & 3300-3700MHz DIN-Type Dual-Band Combiner
High Isolation ≥80dB 1730-1880MHz & 3300-3700MHz DIN-Type Dual-Band Combiner
High Isolation ≥80dB 1730-1880MHz & 3300-3700MHz DIN-Type Dual-Band Combiner
High Isolation ≥80dB 1730-1880MHz & 3300-3700MHz DIN-Type Dual-Band Combiner
High Isolation ≥80dB 1730-1880MHz & 3300-3700MHz DIN-Type Dual-Band Combiner
High Isolation ≥80dB 1730-1880MHz & 3300-3700MHz DIN-Type Dual-Band Combiner

High Isolation ≥80dB 1730-1880MHz & 3300-3700MHz DIN-Type Dual-Band Combiner

Get a Quote Contact Us
  • Description
product high isolation 80db 1730 1880mhz 3300 3700mhz din type dual band combiner-1

[email protected]
Inquiry
Product Description
Product Detail

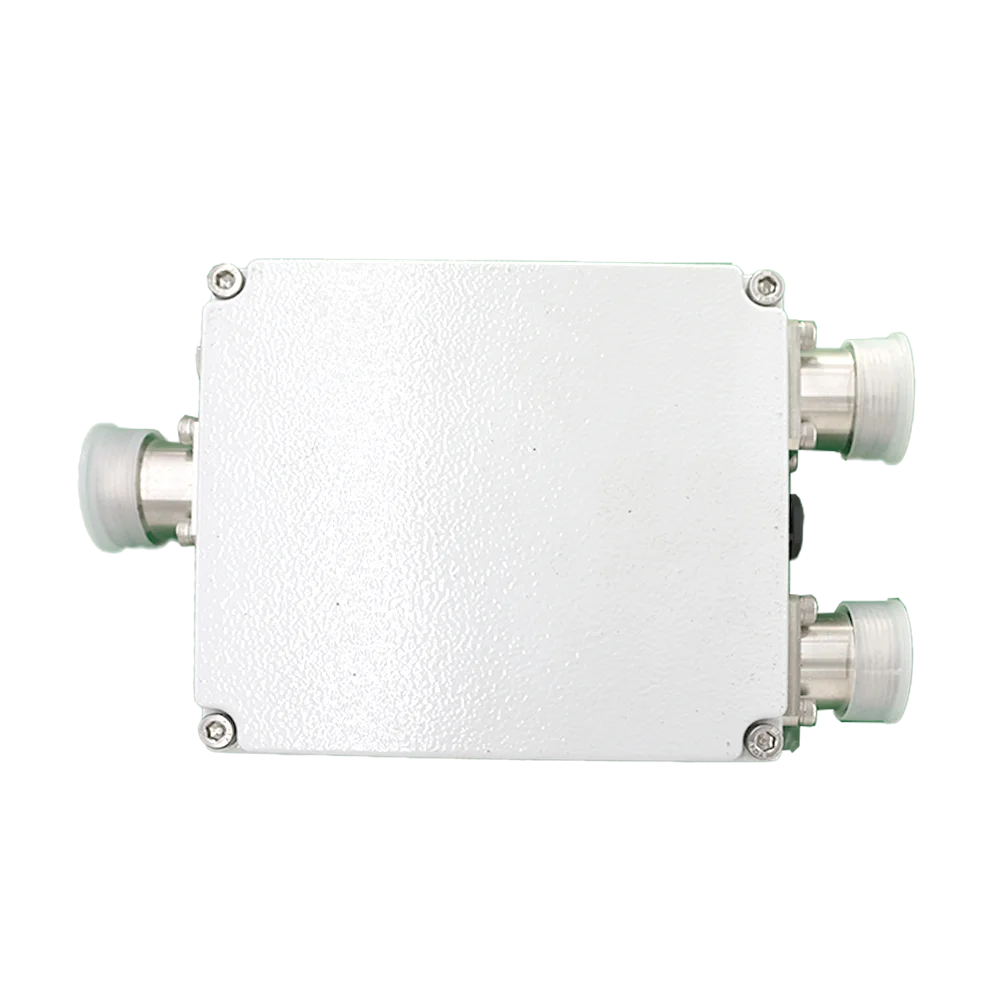

product high isolation 80db 1730 1880mhz 3300 3700mhz din type dual band combiner-2
Channel
CH1
CH2
Frequency Range (MHz)
1730 - 1880
3300 - 3700
Insertion Loss (dB)
≤0.6
In - band Ripple (dB)
≤0.5
Port Isolation (dB)
≥80
VSWR
≤1.3
Impedance (Ω)
50
Third - order Intermodulation (dBc)
≤ - 150@43dBm×2
Fifth - order Intermodulation (dBc)
≤ - 165@43dBm×2
Interface Type
DIN - F/4.3-10/N
Power Capacity (W)
Average Power Capacity ≥500, Peak Power Capacity ≥1500
Dimension（mm）
186*134*33.5
