High-performance Computing 2U Intel Xeon Server - 32 DDR5 Slots, 9 PCIe, 24x2.5
High-performance Computing 2U Intel Xeon Server - 32 DDR5 Slots, 9 PCIe, 24x2.5
High-performance Computing 2U Intel Xeon Server - 32 DDR5 Slots, 9 PCIe, 24x2.5
High-performance Computing 2U Intel Xeon Server - 32 DDR5 Slots, 9 PCIe, 24x2.5
High-performance Computing 2U Intel Xeon Server - 32 DDR5 Slots, 9 PCIe, 24x2.5
High-performance Computing 2U Intel Xeon Server - 32 DDR5 Slots, 9 PCIe, 24x2.5
High-performance Computing 2U Intel Xeon Server - 32 DDR5 Slots, 9 PCIe, 24x2.5
High-performance Computing 2U Intel Xeon Server - 32 DDR5 Slots, 9 PCIe, 24x2.5

High-performance Computing 2U Intel Xeon Server - 32 DDR5 Slots, 9 PCIe, 24x2.5" HDD Support for HPC/Cloud Computing

Get a Quote Contact Us
  • Description
cloud computing-1

[email protected]
Inquiry
Product Description
Product Detail
cloud computing-2
1. Product Overview

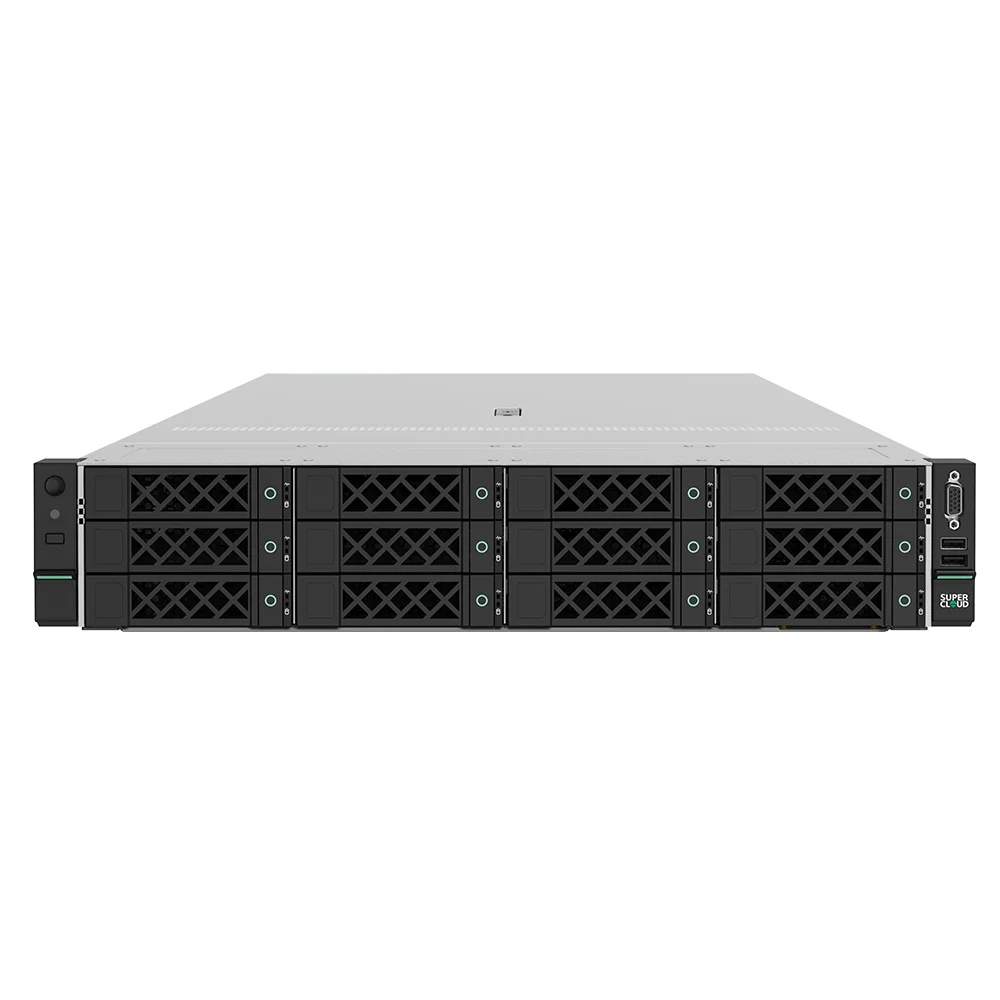

R5215 G13 is a 2U high-end flagship dual channel server developed based on the Intel Eagle Stream platform.The platform is equipped with 2 new Xeon Sapphire Rapids and Emerald Rapids processors, providing 32 memory slots with a maximum frequency of 5600Mhz, supporting 8-channel read, comprehensively improving application performance and enhancing business stability.The platform can support up to 12 3.5-inch hard drives or 24 2.5-inch hard drives in the front, and up to 4 2.5-inch small drives in the back, which can be flexibly adjusted according to the actual business needs of customers.The platform can support up to 9 PCIe slots, which can meet the needs of PCIe devices such as GPU cards, network cards, RAID cards, HBA cards, etc. It has strong scalability, easy management, and is suitable for core business areas such as cloud computing, high-performance computing, and distributed storage.
2. Product features
2.1 Product positioning
* To help users build simple and efficient data center infrastructure for communication operators, the Internet, government agencies and other industries.
2.2 High performance
* Developed based on the Intel Eagle Stream platform Sapphire Rapids and Emerald Rapids processors, with four UPI buses interconnected between CPUs to provide higher performance for users' various applications;Supports up to 32 units of 5600MT/s DDR5 ECC memory, and supports RDIMM (Registered Dual Inline Memory Module) type, providing excellent speed, high availability, and up to 8TB of memory capacity.
2.3 Diversity
* Supporting multiple flexible hard disk configuration schemes, providing elastic and scalable storage capacity space to meet the needs and upgrade requirements of different storage capacities;Supports onboard network cards and flexible IO cards, providing a wide range of network interfaces;Supports up to 9 PCIe expansion slots.
2.4 Manageability
* Guide technicians to quickly locate components that have already malfunctioned (or are currently malfunctioning) through the BMC Web management interface and the UID/health indicator lights on the panel, simplifying maintenance work, accelerating problem-solving speed, and improving system availability;The onboard BMC integrated management module can continuously monitor system parameters and trigger alarms;Supports edge band management (NC-SI) features and supports the reuse of management network ports and business network ports.
2.5 Low power consumption
* Efficient single board VRD power supply reduces the loss of DC power conversion on the motherboard;Fully optimized system cooling design, efficient and energy-saving system cooling fan, reducing system cooling energy consumption.
3. Product Technical Specifications
3.1 Host performance
Processor
Supports 2 Intel chips® Xeon Sapphire Rapids, Emerald Rapids series processors, TDP of 150-350W, Up to 4 UPI 16GT/s
Chipset
Intel®Emmitsburg
Memory type
 Supports DDR5 ECC 5600/4800/4400Hz
(The operating frequency varies depending on the CPU and memory configuration)
Slot and capacity
32 memory slots (supporting a single capacity of 256GB RDIMM memory)
Hard disk
 Front end: Supports up to 12 3.5-inch hot swappable hard drives (pass through mode: 8SAS/SATA+4SAS/SATA/U2 NVMe SSD);Expansion
mode: 12 Exp SAS/SATA;Full Flash Mode: 12SAS/SATA/U2 NVMe SSD or 24 2.5-inch hard drives
Rear: Maximum optional expansion of 4 2.5-inch SAS/SATA/NVMe hard drives
Built in: Supports 2 M.2 SATA/NVMe SSDs;Supports 4 3.5-inch hard drives
Memory Controller
 Optional SAS controller (12G), supports RAID0, 1, 10, can cascade JBOD expansion cabinets
Optional RAID controller (12G) supports up to 8G cache and RAID0/1/10/5/50/6/60
And expandable cache data protection suite and high-speed cache protection acceleration function
Network
 Integrated with 2 high-performance Gigabit Ethernet ports (RJ45 interface), supporting NC-SI and PXE functions
Support 1 OCP3.0 network card expansion
BMC Displays
AST2600
safety
Support TCM/TPM 2.0 security module
 3.2 Scalable Performance
I/O expansion
Supports up to 9 PCIe slots
Expansion storage
Optional SAS HBA/SAS RAID/FCHBA card for external disk array or JBOD expansion cabinet
Peripheral Interface
 Prerequisite:
2 x USB 2.0 interface
1 x VGA interface
Rear:
2 x USB 3.0 interface
1 x VGA interface
1xRJ45 serial port
1 x RJ45 system management interface
3.3 Chassis power supply
Chassis
 Super Cloud 2U Server Chassis
Height 86mm (H) x Width 447mm (W) x Depth 840mm (D)
Optional
Optional 800W/1200W/1300W/1600W redundant power supply;
 3.4 Random accessories
Rail
Standard rack mounted guide rail
Power line
National standard AC power cord
 3.5  Operating System compatibility
 Operating System
 Microsoft Windows Sever
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
CentOS
Please refer to the compatibility list or consult Chaoyun Company for the support of the operating system under different
configurations.
3.6 Environmental adaptability
 Temperature Range
Working at 5 ° C -35 ° C
Storage and transportation -40 ℃~70 ℃
 Relative Humidity Range
 Working at 8% to 90% RH (non condensing)
Storage and transportation 5% to 95% RH (non condensing)
Atmospheric pressure range
70 ~106kPa
