Model |
Magnetic ring inner hole specification (square) |
Electrical performance - Z1 (Ω) |
Electrical performance - Z2 (Ω) |

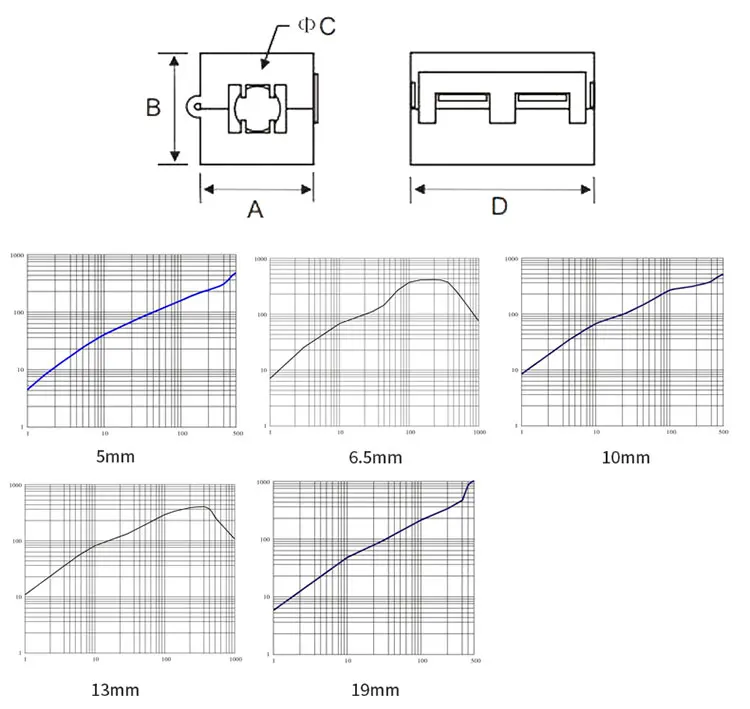

Size (mm) - A |
Size (mm) - B |

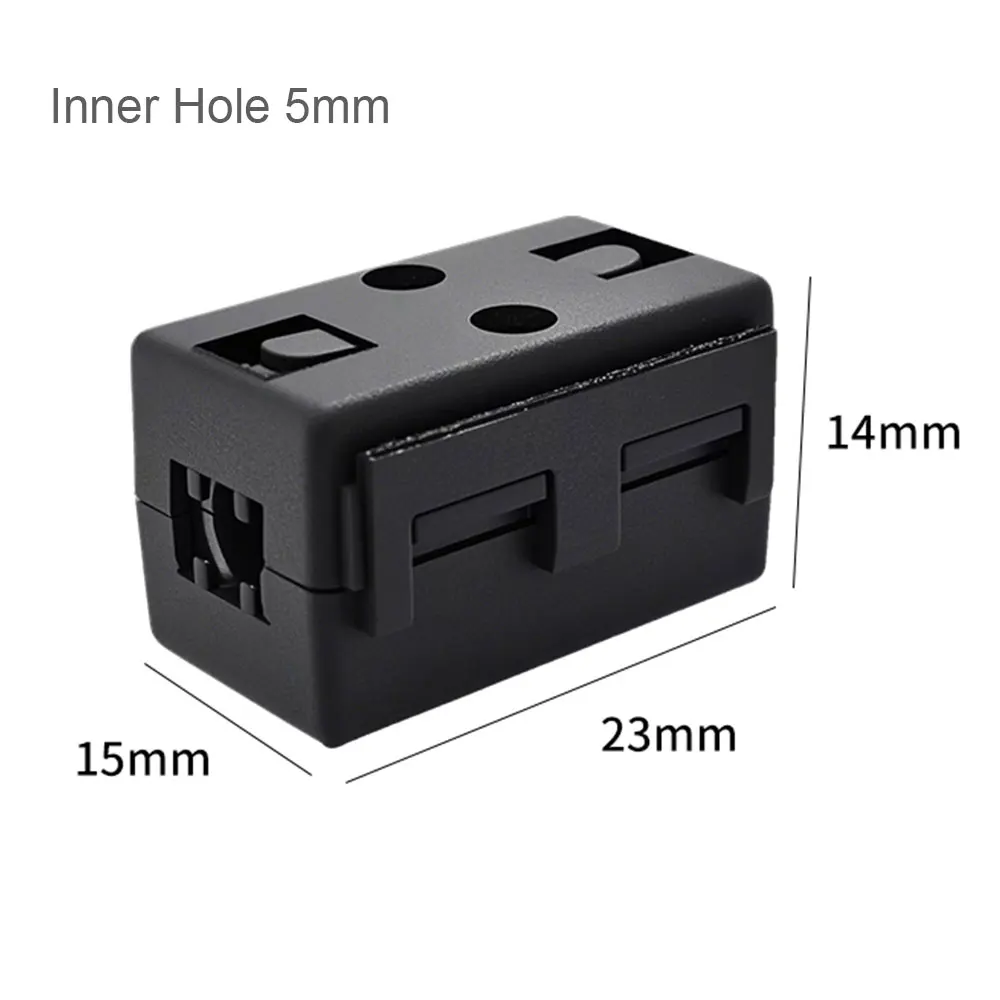

YW-YBCH-F-5 |
5mm |
60 |
130 |
15 |
14 |

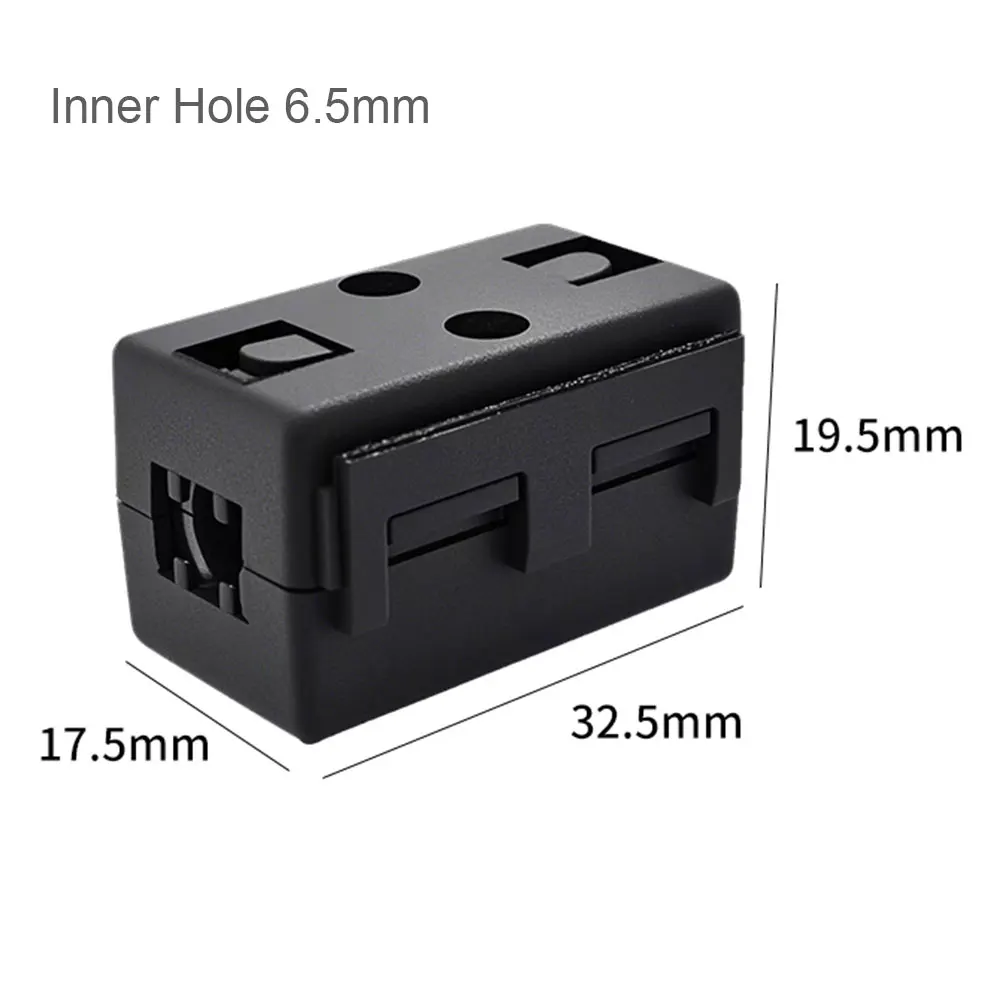

YW-YBCH-F-6.5 |
6.5mm |
90 |
250 |
17.5 |
19.5 |
YW-YBCH-F-10 |
10mm |
100 |
200 |
22 |
23.5 |
YW-YBCH-F-13 |
13mm |
110 |
200 |
29 |
30 |

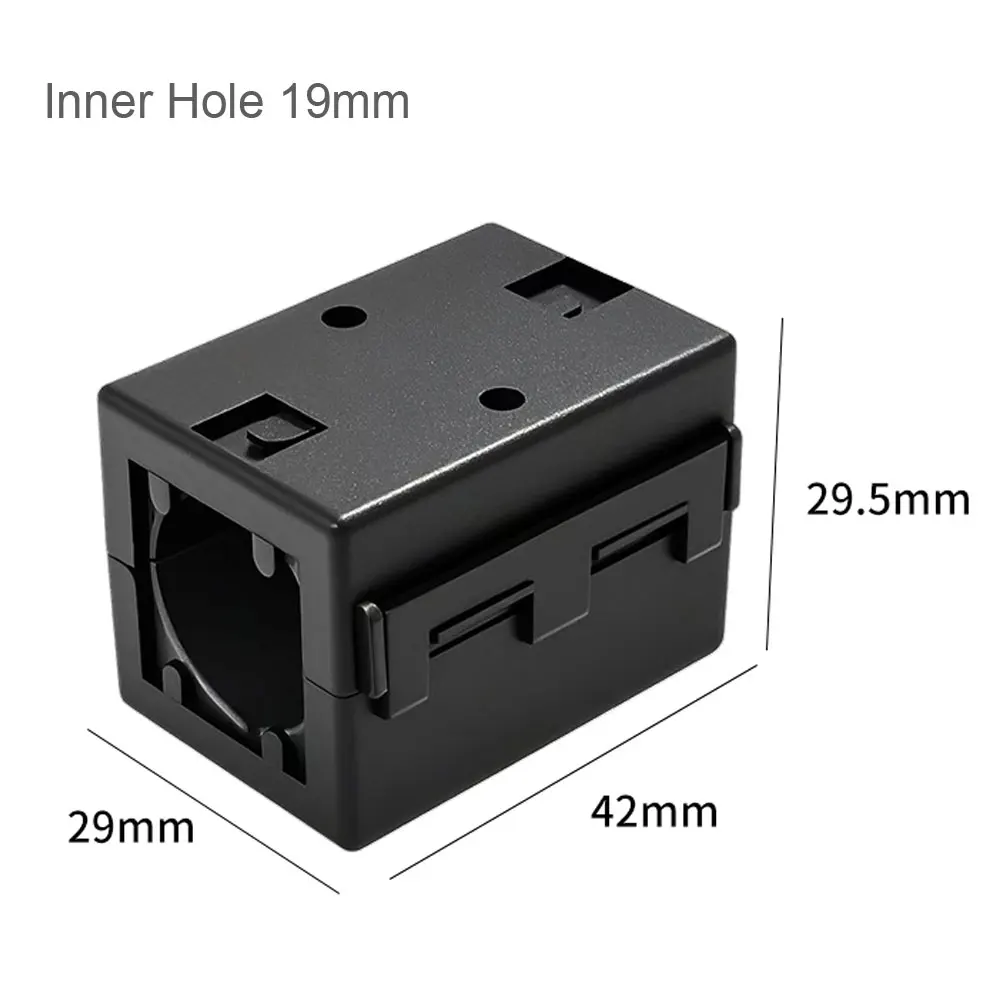

YW-YBCH-F-19 |
19mm |
55 |
115 |
29 |
29.5 |
Model |
Size (mm) - C |
Size (mm) - D |
Size (mm) - E |
Wire |
YW-YBCH-F-5 |
6 |
23 |
5 |
Φ0.5*100L(mm)*0.5Ts |
YW-YBCH-F-6.5 |
6.5 |
32.5 |
Φ0.5*100L(mm)*0.5Ts |
|
YW-YBCH-F-10 |
10 |
33 |
Φ0.5*100L(mm)*0.5Ts |
|
YW-YBCH-F-13 |
13 |
32 |
Φ0.5*100L(mm)*0.5Ts |
|
YW-YBCH-F-19 |
19.5 |
42 |
Φ0.4*165L(mm)*0.5Ts |
