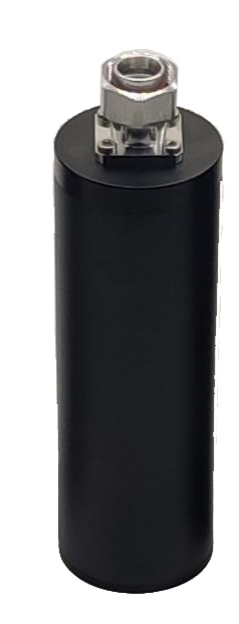

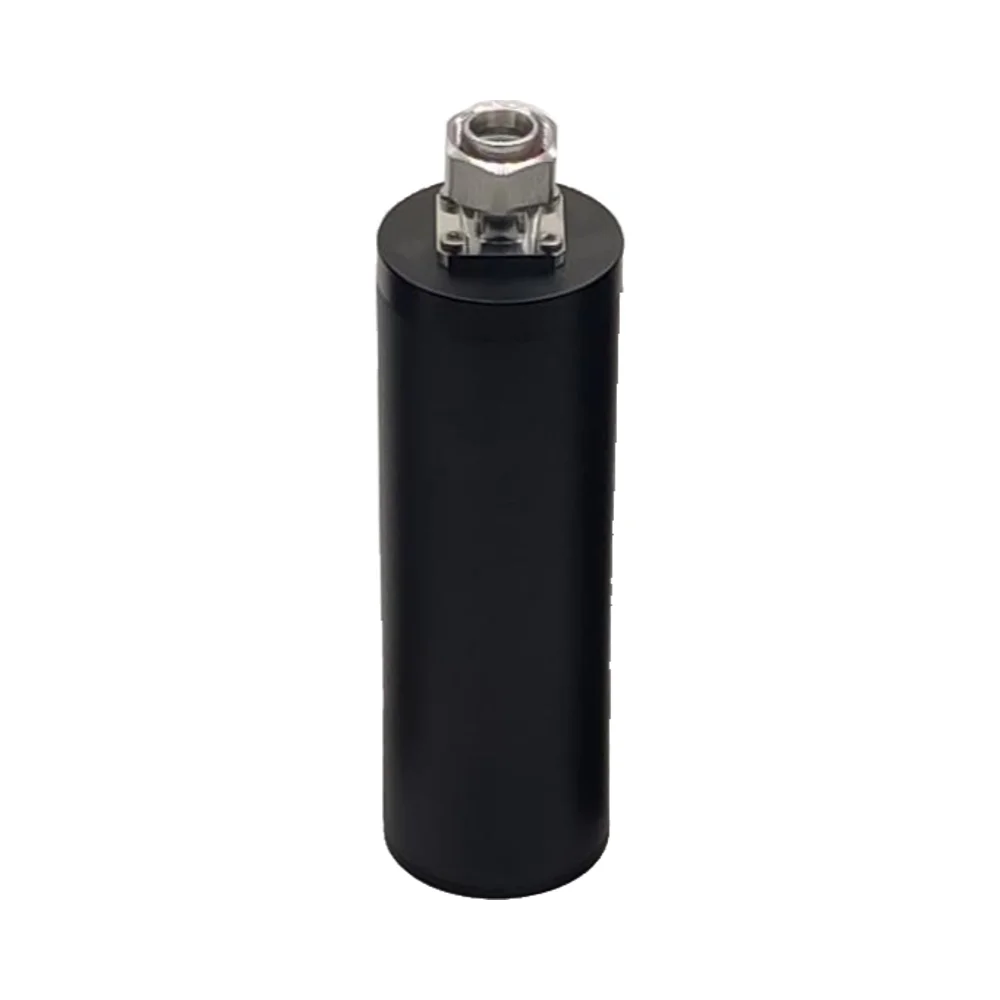

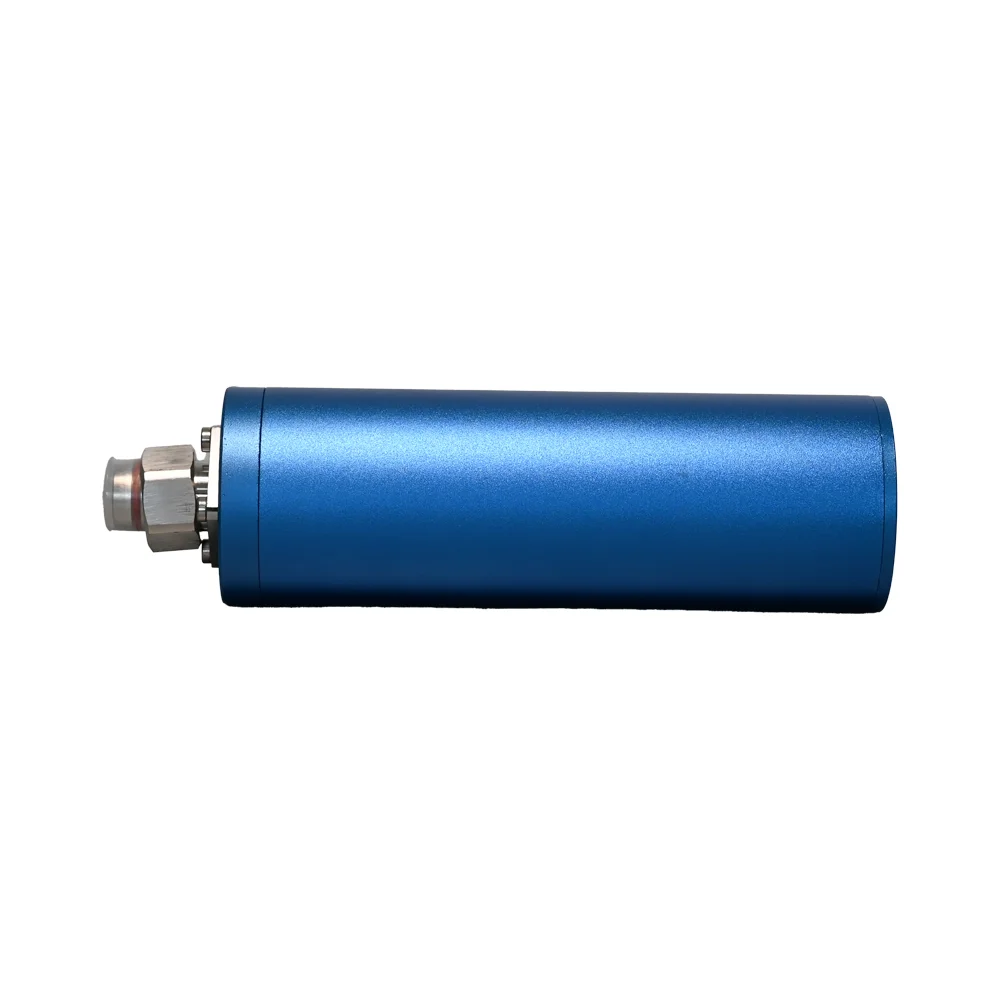

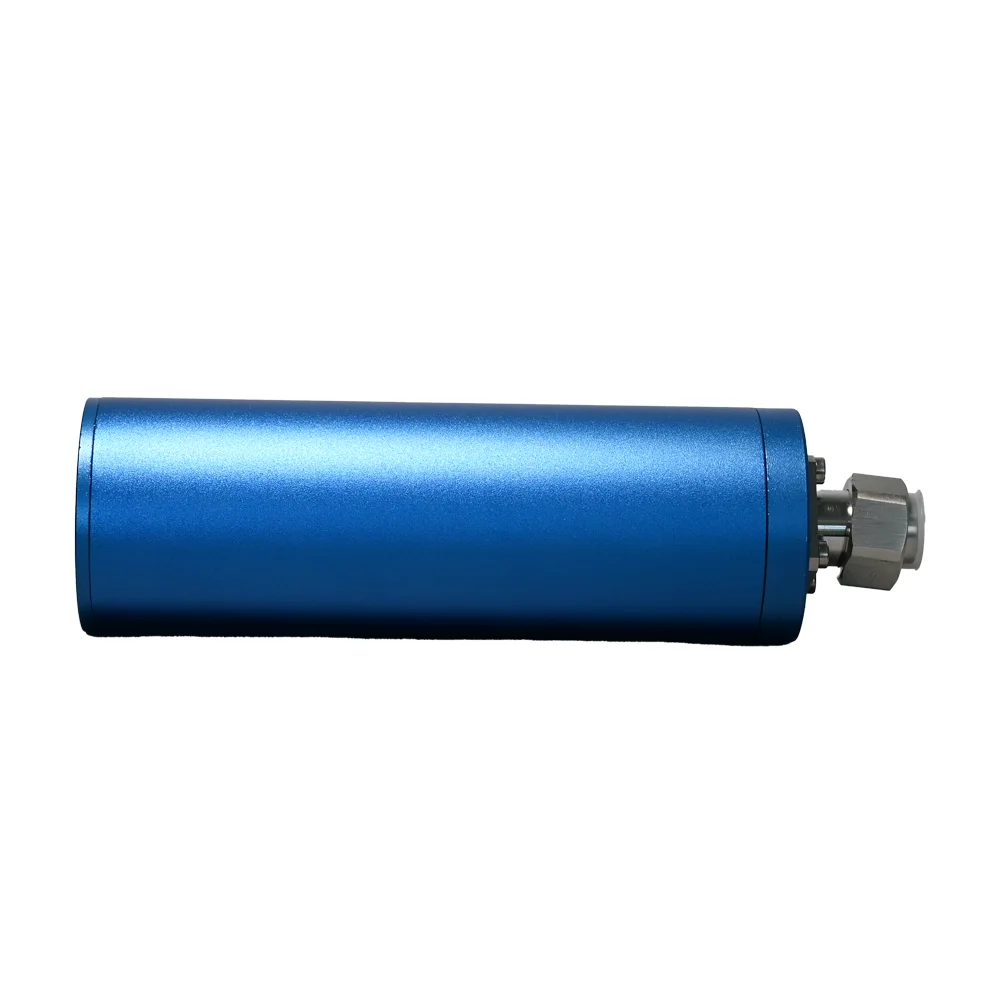

Introducing, the Yoongwin Indoor/Outdoor Low PIM -155dBc RF 50W IP65 Dummy Load, the perfect solution for IBS, BTS, and DAS installations. This dummy load is specifically designed to handle high power levels while maintaining low Passive Intermodulation distortion levels of -155dBc, ensuring the reliability and performance of your RF systems.
With a frequency range of 698-4000MHz and a 50Ω impedance, the Yoongwin dummy load is versatile and can be used in a variety of applications. Whether you are setting up an indoor or outdoor RF system, this dummy load is IP65 rated, making it resistant to dust and water ingress, ensuring its durability in harsh environments.

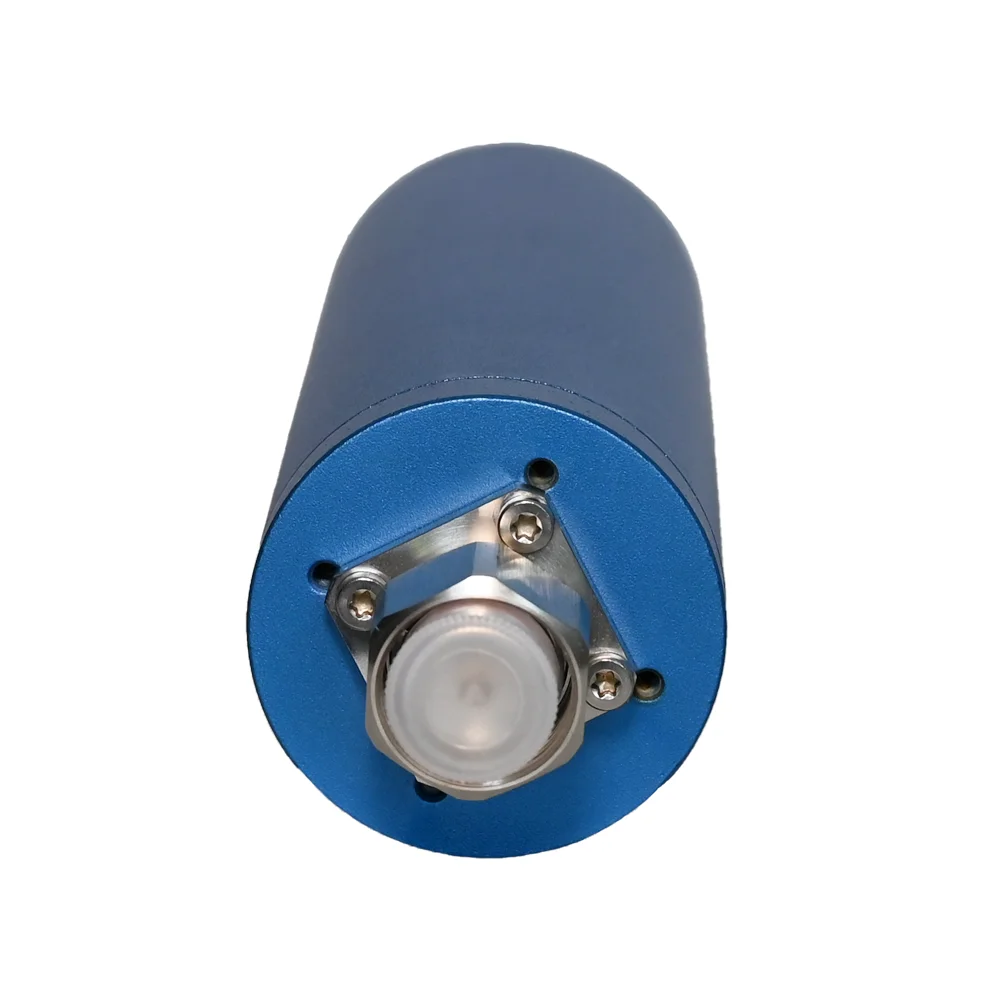

The dummy load has a 4.3-10 M connector, which is commonly used in IBS, BTS, and DAS installations, providing a secure and stable connection for your RF devices. With a power handling capacity of 50W, this dummy load can handle high power levels without compromising performance.
Whether you are setting up a new RF system or replacing an old dummy load, the Yoongwin Indoor/Outdoor Low PIM -155dBc RF 50W IP65 Dummy Load is the ideal choice. Its high-quality construction and advanced design ensure that your RF systems operate at their best, without any interference or degradation in performance.
Don't settle for subpar RF components that can compromise the reliability of your systems. Choose the Yoongwin Indoor/Outdoor Low PIM -155dBc RF 50W IP65 Dummy Load and experience the difference it can make in your IBS, BTS, or DAS installations. Trust Yoongwin for all your RF needs and stay connected without any interruptions
Frequency Range(MHz) |
698-4000 |
|
VSWR |
≤ 1.3 |
|
PIM(dBc@2*43dBm) |
≤-155 |
|
Power(W) |
50 |
|
Impedance(Ω) |
50 |
|
Environmental Specifications |
||
Operating Temperature(℃) |
-35° C to +75° C |
|
Relative humidity |
≤95% |
|
Applications |
Indoor/Outdoor |
|
Waterproof Grade |
IP65 |
|
Mechanical Data |
||
RF Connector: |
4.3-10 M |
|
Weight（g） |
≤1.1 |
|
Colour |
Black or Custom |
|
Q: Are you a manufacturer or a trading company
A: We have been professional antenna manufacturer for 18 years
Q: Have gps gsm combo antenna 100% assembles well in stock
A: No, all gps gsm combo antenna will be newly assembled according to your orders including the samples
Q: Could I use my own LOGO or design on goods
A: Yes, customized logo and design on mass production are available
Q: What's the payment term
A: T/T, AliPay, Paypal, Afterpay, Klarna etc
Q: What certifications do you have
A: Certified by FCC, CE, RoHS, ISO available upon request
Q: Where is your factory located? Can I visit your factory
A: Factory address: 2nd Floor, Building D4-1, Hongfeng Science and Technology Park, Nanjing Economic and Technological Development Zone, Jiangsu Province
Just call us, we will pick you up with no delay
