Home > Products > Wireless Communication > Routers > 4G/5G Router 4G/5G
LCD/LED |
LCD(1.44TFT) |

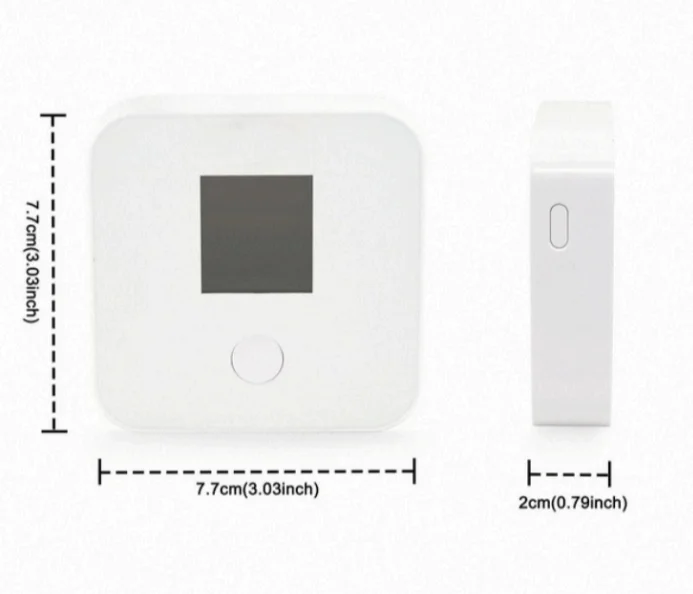

Size |
76×76×20mm |
Battery |
3050mAh |
Weight |
135g |
TDD-LTE Band |
B38/B39/B40/B41 |
FDD-LTE Band |
B1/B2/B3/B4/B5/B7/B8/B12/B17/B18/B19/B20/ B25/B26/B28 |
UMTS |
B1/B2/B4/B5/B8 |
EDGE/GPRS |
B2/B3/B5/B8 |
LTE Chipset |
MDM9×07 |
LTE Channel Bandwidth |
1.4/3/5/10/15/20 MHz |
Modulation -Downlink |
QPSK/16-QAM/64-QAM |
Modulation-Uplink |
QPSK/16-QAM |
LTE Authentication |
EPS-AKA |
MIMO support |
MIMO 2×2 |
Power Level-TDD-LTE |
Power Class 3(23+/-3dBm) |
Power Level-FDD LTE |
Power Class 3(23+/-3dBm) |
Sensitivity-TDD LTE |
-94 dBm(20MHZ) |
Sensitivity-FDD LTE |
-93 dBm(20MHZ) |
Data Rate -TDD LTE |
3GPP R9,Category 4,DL 150Mbps,UL50Mbps |
Data Rate -FDD LTE |
3GPP R9,Category 4,DL 150Mbps,UL50Mbps |
Bluetooth 5.0 |
Optional |
eSIM service (Sim-less) |
- |
