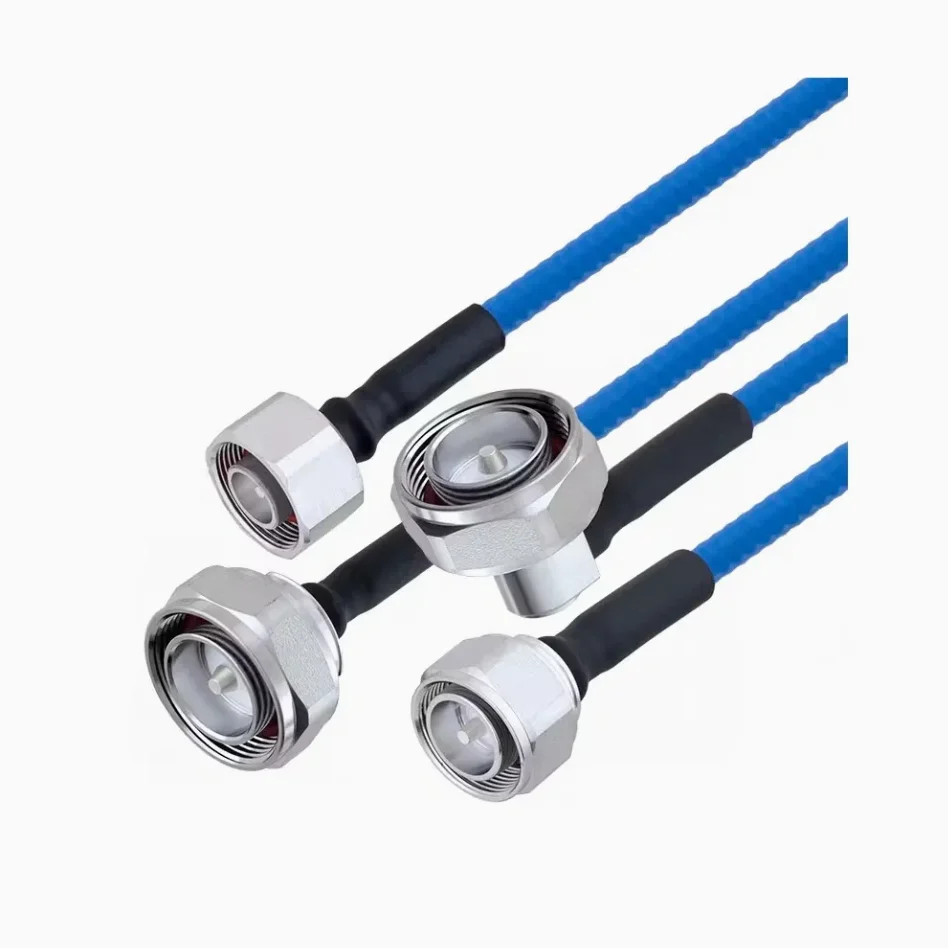

Low Pim RF Cable Assembly 4.3-10 Male to 4.3-10 Male For. 250 Cable
Low Pim RF Cable Assembly 4.3-10 Male to 4.3-10 Male For. 250 Cable
Low Pim RF Cable Assembly 4.3-10 Male to 4.3-10 Male For. 250 Cable
Low Pim RF Cable Assembly 4.3-10 Male to 4.3-10 Male For. 250 Cable
Low Pim RF Cable Assembly 4.3-10 Male to 4.3-10 Male For. 250 Cable
Low Pim RF Cable Assembly 4.3-10 Male to 4.3-10 Male For. 250 Cable
Low Pim RF Cable Assembly 4.3-10 Male to 4.3-10 Male For. 250 Cable
Low Pim RF Cable Assembly 4.3-10 Male to 4.3-10 Male For. 250 Cable
Low Pim RF Cable Assembly 4.3-10 Male to 4.3-10 Male For. 250 Cable
Low Pim RF Cable Assembly 4.3-10 Male to 4.3-10 Male For. 250 Cable
Low Pim RF Cable Assembly 4.3-10 Male to 4.3-10 Male For. 250 Cable
Low Pim RF Cable Assembly 4.3-10 Male to 4.3-10 Male For. 250 Cable

Low Pim RF Cable Assembly 4.3-10 Male to 4.3-10 Male For. 250 Cable

Get a Quote Contact Us
  • Description
product low pim rf cable assembly 43 10 male to 43 10 male for 250 cable-1

[email protected]
Inquiry
Product Description

The outer conductor of Corrugated Cable Assemblies is constructed of a corrugated tube (spiral or ringed winding). This construction allows perfect shielding and some flexibility while maintaining a large bending radius. The high performance level of these cables enable them to be used in outdoor long length transmission lines.

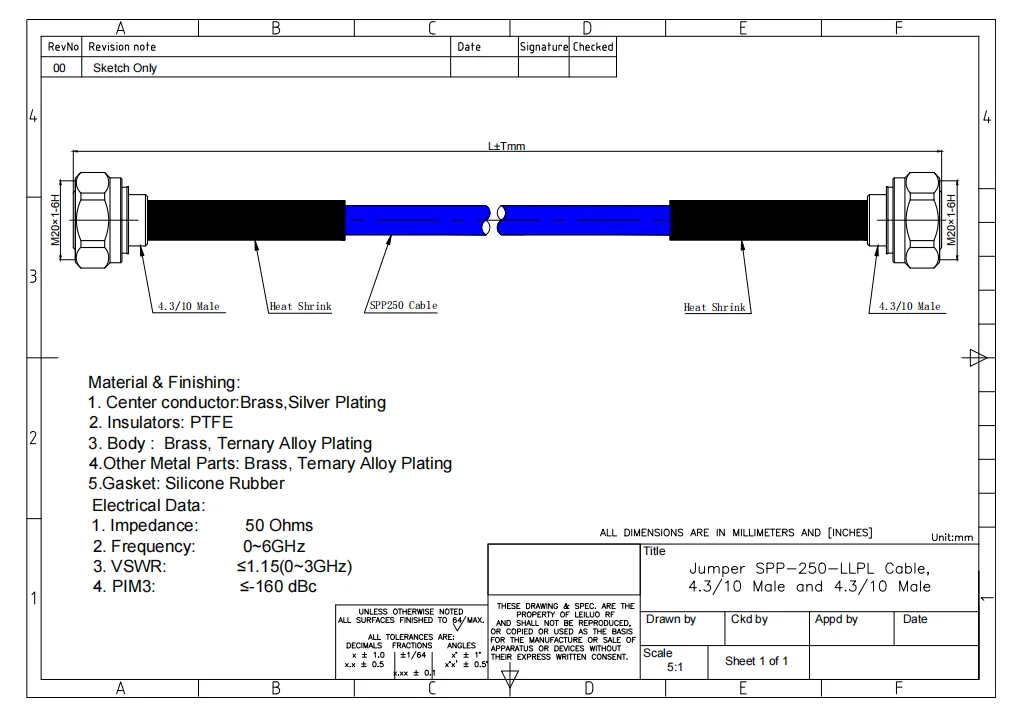

Product Detail
product low pim rf cable assembly 43 10 male to 43 10 male for 250 cable-2
Material & Finishing
Center condutor
Brass, Sliver Plating
Insulators
PTFE
Body
Brass, Ternary alloy Plating
Other Metal Parts
Brass, Ternary Alloy Plating
Gasket
Silicone Rubber
Electrical Data
Impedance
50 Ohms
Frequency
0~6GHz
VSWR
≤1.15 (0-3GHz)
PIM3
≤-160 dBc
Company Profile
product low pim rf cable assembly 43 10 male to 43 10 male for 250 cable-3
product low pim rf cable assembly 43 10 male to 43 10 male for 250 cable-4
product low pim rf cable assembly 43 10 male to 43 10 male for 250 cable-5
product low pim rf cable assembly 43 10 male to 43 10 male for 250 cable-6
product low pim rf cable assembly 43 10 male to 43 10 male for 250 cable-7
product low pim rf cable assembly 43 10 male to 43 10 male for 250 cable-8
FAQ
Q: Are you a manufacturer or a trading company? A: We have been professional antenna manufacturer for 18 years. Q: Have gps gsm combo antenna 100% assembles well in stock? A: No, all gps gsm combo antenna will be newly assembled according to your orders including the samples. Q: Could I use my own LOGO or design on goods? A: Yes, customized logo and design on mass production are available. Q: What's the payment term? A: T/T, AliPay,Paypal,Afterpay,Klarna etc. Q:What certifications do you have? A:Certified by FCC, CE, RoHS,ISO available upon request. Q: Where is your factory located? Can I visit your factory? A: Factory address: 2nd Floor, Building D4-1, Hongfeng Science and Technology Park, Nanjing Economic and Technological Development Zone, Jiangsu Province. Just call us, we will pick you up with no delay.
