Managed DIN Rail 8 Port Gigabit Ethernet and 2 1000M SFP Industrial Switch

Managed DIN Rail 8 Port Gigabit Ethernet and 2 1000M SFP Industrial Switch

Description

[email protected]

Description

Product Description

Yoongwin Situation Awareness Technology Co., Ltd., founded in 2007 in Nanjing Economic and Technological Development Zone with a registered capital of RMB 60.06 million, controls eight medium - sized tech enterprises. Its main business spans thin - film circuits, antenna & feeder products, etc., and it's involved in industrial Internet security and electromagnetic space protection.
As a member of multiple associations, it holds dual - software and ISO2700 info security certifications. With over 100 patents, it was recognized as a Nanjing Gazelle Enterprise from 2020 - 2022, indicating continuous growth.

Product Detail

Introduction

We provides industry users with a series of industrial switch products that meet strict environmental requirements and high reliability. The entire series of products meet industrial level 4 electromagnetic compatibility and anti-interference
requirements. The sturdy structure and compact size facilitate on-site installation. The product is widely used in industries such as power substations and distribution network automation, wind and solar power generation systems, rail transit, intelligent manufacturing, highways, petroleum and petrochemical, etc. It is the preferred brand for high-performance and highly reliable industrial switches.

Features

Supports STP/RSTP/MSTP and ERPS, with a minimum recovery time of<50 milliseconds
Support HTTPS/SSH to enhance network management security
Support IP based bandwidth management
Support Application Based Quality of Service (QoS)
Support IGMP v2/v3 (IGMP snooping) multicast management
Port Trunk facilitates bandwidth management
Support network management for SNMP v1/v2c/v3 security

100/1000Base-T sports	8
1000Base-FX SFP sports	2
Standard	IEEE 802.3: 10Base-T IEEE 802.3u: 100Base-TX和100Base-FX IEEE 802.3z 1000Base-X IEEE 802.3ab: 1000Base-TX IEEE 802.3x: Flow Control IEEE 802.3ad: LACP (Port Aggregation Control Protocol) IEEE 802.1D: STP (Spanning Tree Protocol) IEEE 802.1p: COS (Service Level) IEEE 802.1Q: VLAN Tag IEEE 802.1W: RSTP (Fast Spanning Tree Protocol) IEEE 802.1s: MSTP (Multi Generative Tree Protocol) IEEE 802.1X: Security Authentication IEEE 802.1AB: LLDP (Link Layer Discovery Protocol)
Signal processing method	Store and forward
Switch Properties	MAC address table：8192 Priority queues：8 Packet Buffer Size：4Mbits Max. Number of VLANs: 256 VLAN ID Range: 1~4096 IGMP groups: 1024
Security	Open/close ports, MAC based port security mechanism Port based network connection control (802.1x) Isolation through VLAN (802.1Q) network Radius Security Authentication SNMP V1/V2c/V3 encryption verification and access control Broadcast storm protection
Software Features	STP/RSTP/MSTP (IEEE 802.1D/W/s) ERPS: Typical recovery time<30mS Support TOS/Diffserv QoS (802.1p) traffic priority management VLAN (802.1Q) with VLAN tagging and GVRP IGMP v2/v3 (IGMP snooping) multicast management Port status and information traffic statistics monitoring SNTP 1588 PTP Client time synchronization（Software based） DHCP Server/Client Port Trunk MVR (VLAN Multicast)
Redundancy Protocols	ERPS V-RSTP STP RSTP MSTP
Alarm/Monitoring System	Fault alarm through relay output Record and browse events through system logs/server/client Support SMTP to send event warning notifications via email Support system log event filtering
Console Port	Micro-USB 2.0 B-type connector，115200bps，8，N，1
Fault output
Relay	1A@24VDC
Operating Voltage
DC input	Dual DC input, 9-57VDC, 8-pin screw crimping terminal
Consumption	<8W

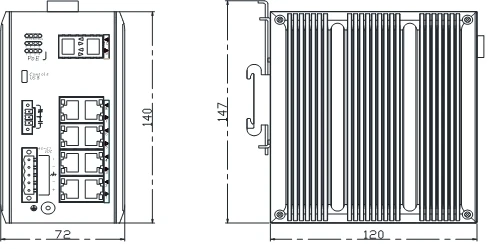

Product Dimension

product managed din rail 8 port gigabit ethernet and 2 1000m sfp industrial switch-2

Applications

Highway Electromechanical System Architecture

The electromechanical systems in expressways primarily consist of toll collection, surveillance, and communication subsystems. As the foundational infrastructure, the communication system interconnects all subsystems, serving as the core for service delivery and information-based operations.The expressway's full-network communication adopts a fiber-optic ring network as its backbone, structured around Layer 3 Gigabit Industrial Ethernet Switches supporting fiber-optic ring topology.At each site access point, Layer 2 (or Layer 3) switches establish dedicated subnets for various services. These application subnets are segmented using Virtual Local Area Networks (VLANs) to meet distinct operational requirements.

product managed din rail 8 port gigabit ethernet and 2 1000m sfp industrial switch-3

Industrial Switches for Oil & Gas Field Intelligence
Industrial Ethernet switches enable intelligent monitoring and management of oil/gas fields, enhancing production efficiency and operational safety. These switches withstand extreme field environments—including low/high temperatures, high altitude, humidity, and EMI—while delivering high-reliability, high-performance, stable, and secure network communications.

product managed din rail 8 port gigabit ethernet and 2 1000m sfp industrial switch-4
