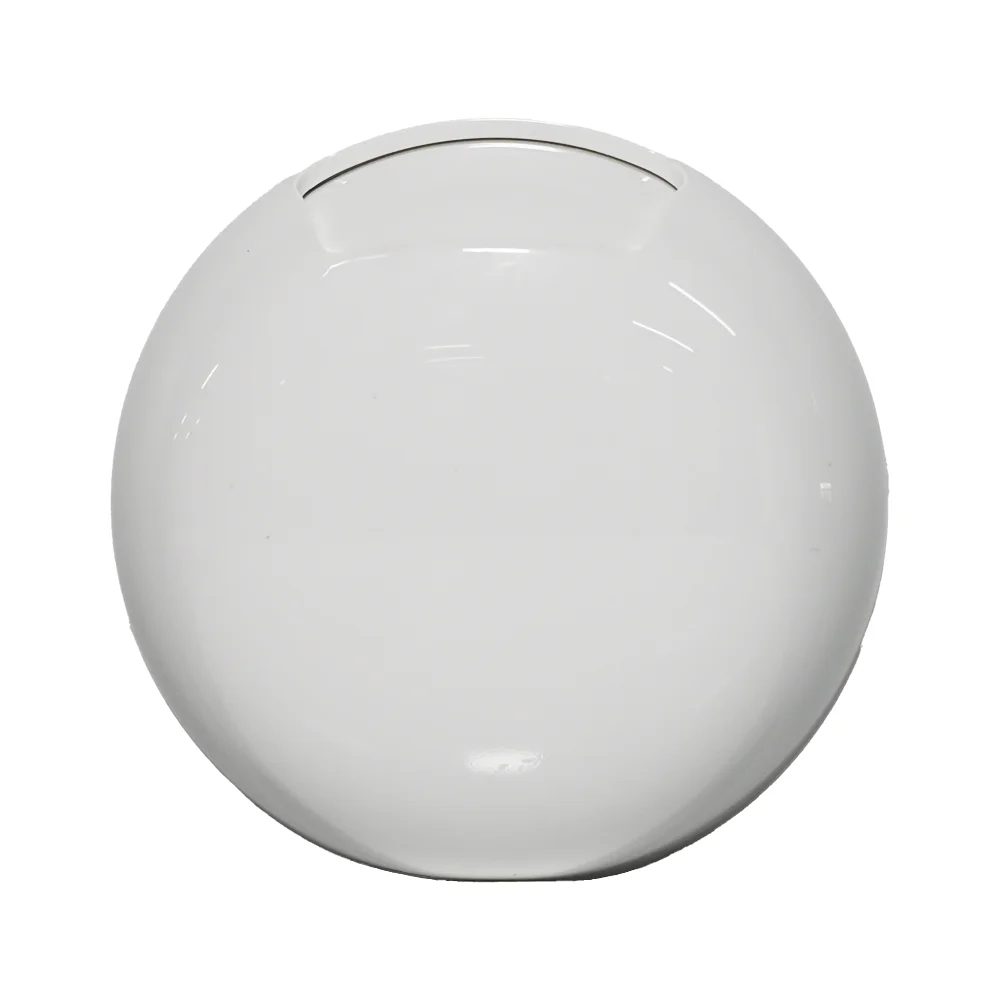

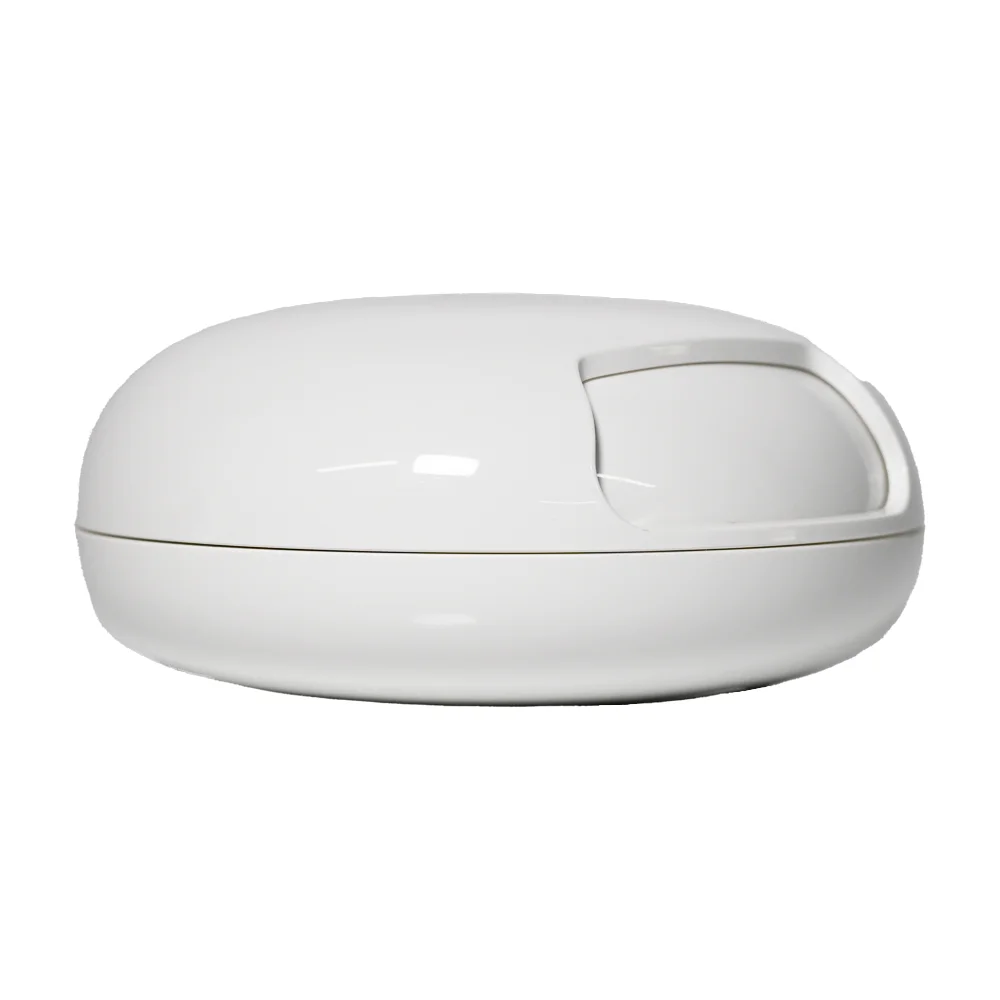

Multi-operator Network Supported Portable MiFi Long-lasting Battery Type-C Charging Outdoor Pocket WiFi

Multi-operator Network Supported Portable MiFi Long-lasting Battery Type-C Charging Outdoor Pocket WiFi

Description

[email protected]

Description

Product Description

Product Detail

●Support 1 external nanoSIM card slot, 1 internal patch card ●Can use its own cloud card to recharge Internet access ●Support Wi-Fi 802.11b/g/n protocols ●Comes with 3300mAh battery ●Support built-in 1 high gain 4G diversity antenna + 2 Wi-Fi antennas ●Support 1 100MB LAN port ●Support Type-C power supply

Hardware
Solution	TM22G+SV6158-M
Memory	2Gb
Flash	512Mb
Ethernet port	None

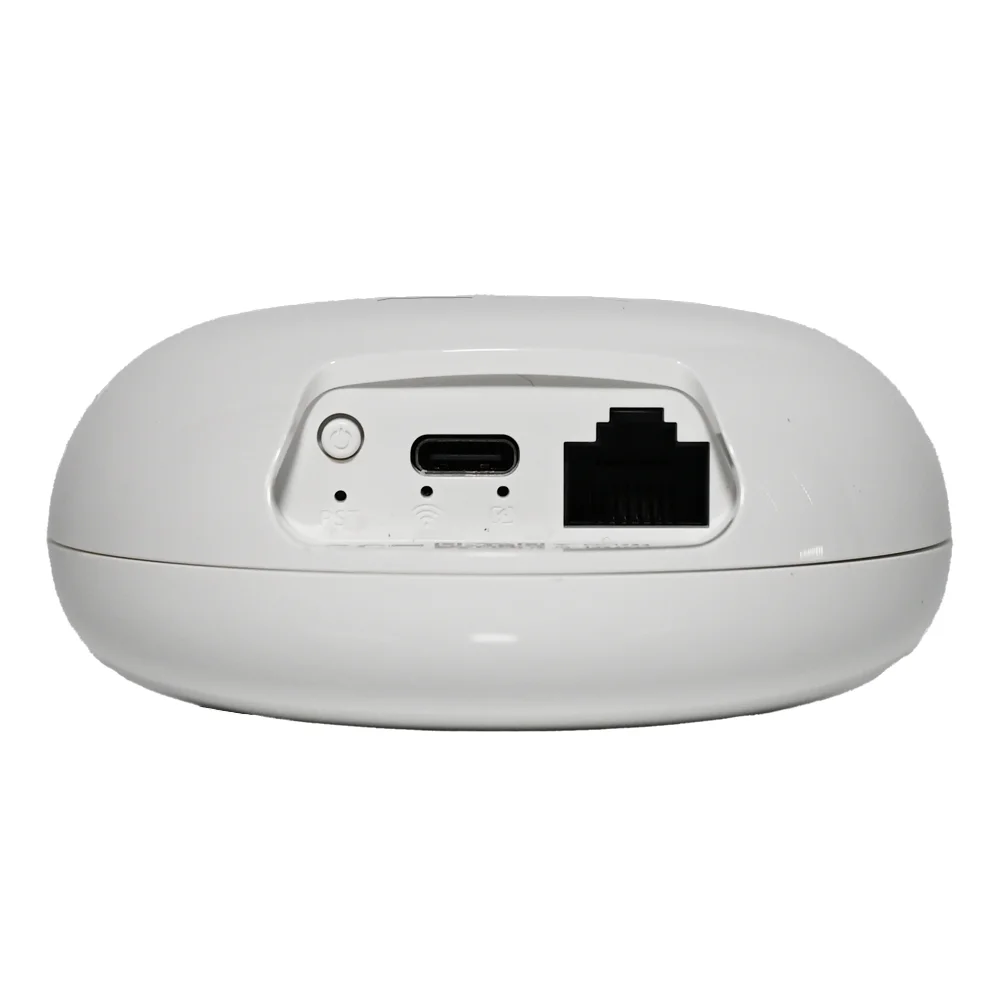

Interface	1 Type-C power interface
Button	1 Reset button
Indicator lights	1 green-orange dual-color LED system light 1 green-orange dual-color LED charging light
Antenna	Built-in professional Wi-Fi and 4G antennas
Operating temperature and humidity	0~40°C, 10%～90% non-condensing
Storage humidity	-10~60°C, 5%～95% non-condensing
External dimensions	81.6X81.6X37 mm
Overall weight	128g
Battery	3300mAh
Power supply specification	Type-C 5V/2A

Wi-Fi
Technical Standards	2.4GHz	802.11b/g/n
Modulation Methods	802.11b	1/2/5.5/11Mbps
		802.11g	6/9/12/18/24/36/48/54Mbps
		802.11n	MCS0~7
2.4GHz	Maximum Speed	150Mbps
		Frequency Bands	2.4GHz: HE20: CH1 to CH13 HE40: CH3 to CH11
		Wi-Fi Spatial Stream	1T1R
		Channel Bandwidth	2.4GHz: 20/40MHz
		Maximum Number of Accesses	8

Cellular
Module	Module Model	TM22G
Module		Applicable Region	Global
Cellular Frequency Bands	LTE FDD	B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B17/B18/B19/B20/B25/B26/B28AB/B66
		TDD-LTE	B34/B38/B39/B40/B41
		WCDMA	B1
		GSM/GPRS/EDGE	B1/B2/B4/B5/B8
Cellular Data Rates	FDD	Maximum uplink rate 50Mbps, Maximum downlink rate 150Mbps
Cellular Data Rates		TDD	Maximum uplink rate 35Mbps, Maximum downlink rate 130Mbps
