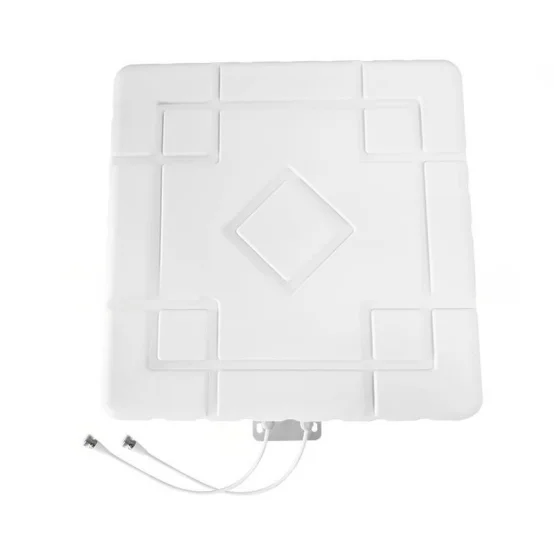

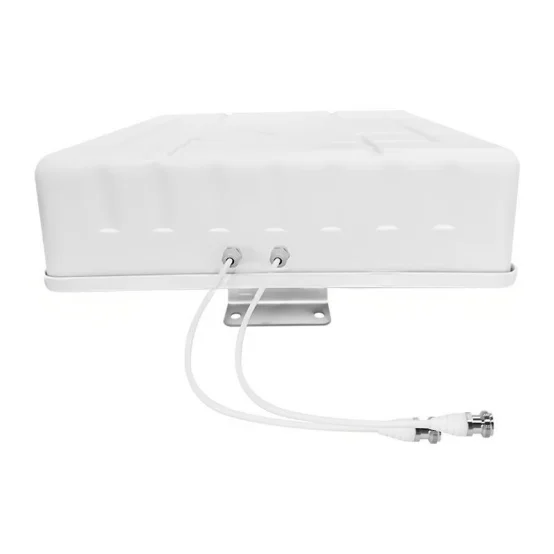

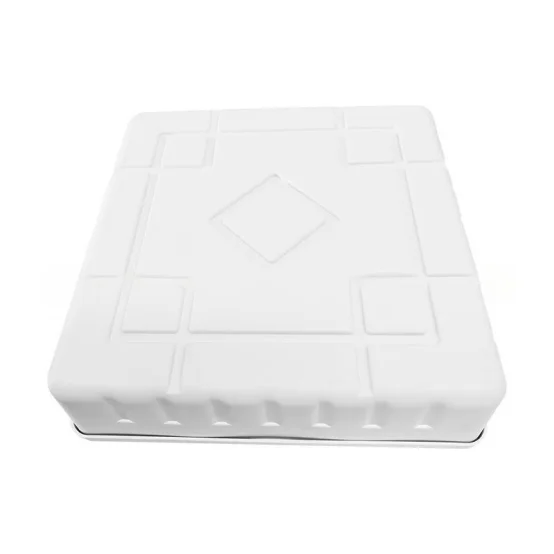

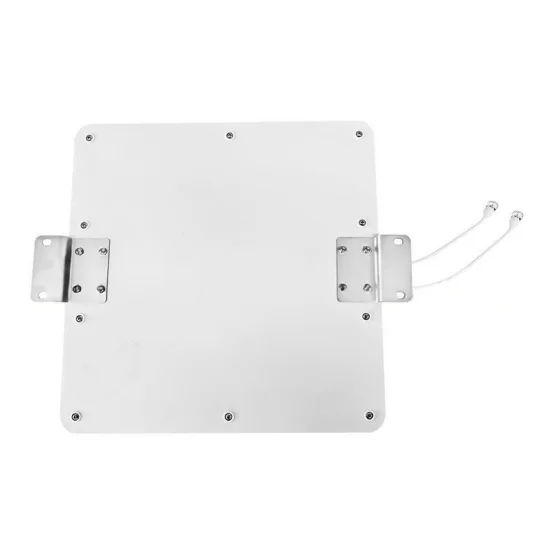

N-50K Connector High Gain 11.5-15dBi Vertical Polarization 698-3700MHz Elevator Shaft Antenna
N-50K Connector High Gain 11.5-15dBi Vertical Polarization 698-3700MHz Elevator Shaft Antenna
N-50K Connector High Gain 11.5-15dBi Vertical Polarization 698-3700MHz Elevator Shaft Antenna
N-50K Connector High Gain 11.5-15dBi Vertical Polarization 698-3700MHz Elevator Shaft Antenna
N-50K Connector High Gain 11.5-15dBi Vertical Polarization 698-3700MHz Elevator Shaft Antenna
N-50K Connector High Gain 11.5-15dBi Vertical Polarization 698-3700MHz Elevator Shaft Antenna
N-50K Connector High Gain 11.5-15dBi Vertical Polarization 698-3700MHz Elevator Shaft Antenna
N-50K Connector High Gain 11.5-15dBi Vertical Polarization 698-3700MHz Elevator Shaft Antenna
N-50K Connector High Gain 11.5-15dBi Vertical Polarization 698-3700MHz Elevator Shaft Antenna
N-50K Connector High Gain 11.5-15dBi Vertical Polarization 698-3700MHz Elevator Shaft Antenna
N-50K Connector High Gain 11.5-15dBi Vertical Polarization 698-3700MHz Elevator Shaft Antenna
N-50K Connector High Gain 11.5-15dBi Vertical Polarization 698-3700MHz Elevator Shaft Antenna

N-50K Connector High Gain 11.5-15dBi Vertical Polarization 698-3700MHz Elevator Shaft Antenna

Get a Quote Contact Us
  • Description
product n 50k connector high gain 115 15dbi vertical polarization 698 3700mhz elevator shaft antenna-1

[email protected]
Inquiry
Product Description
N-50K Connector High Gain 11.5-15dBi Vertical Polarization 698-3700MHz Elevator Shaft Antenna details
N-50K Connector High Gain 11.5-15dBi Vertical Polarization 698-3700MHz Elevator Shaft Antenna supplier
Product Detail
Electrical Specifications
Operating Frequency Band (MHz)
698-806
806-960
1710-2170
2300-2700
3300-3700
Polarization
Vertical
Average Gain (dBi)
≥11.5
≥12
≥15
Horizontal Half-Power Beamwidth (°)
≤35
≤25
Vertical Half-Power Beamwidth (°)
≤35
≤25
Front-to-Back Ratio (dB)
≥20
≥23
Voltage Standing Wave Ratio (VSWR)
≤1.7
≤1.5
Average Power Capacity (W)
50
Third-Order Intermodulation (dBm)
≤-90（Input power: 2×43dBm）
Fifth-Order Intermodulation (dBm)
≤-105（Input power: 2×43dBm,）
Mechanical Performance
Connector Model
N-50K
Dimensions (mm)
≤750mm×560mm×160mm
Ambient Temperature (℃)
Operating Temperature: -40℃～+55℃; Storage Temperature: -55℃～+85℃
