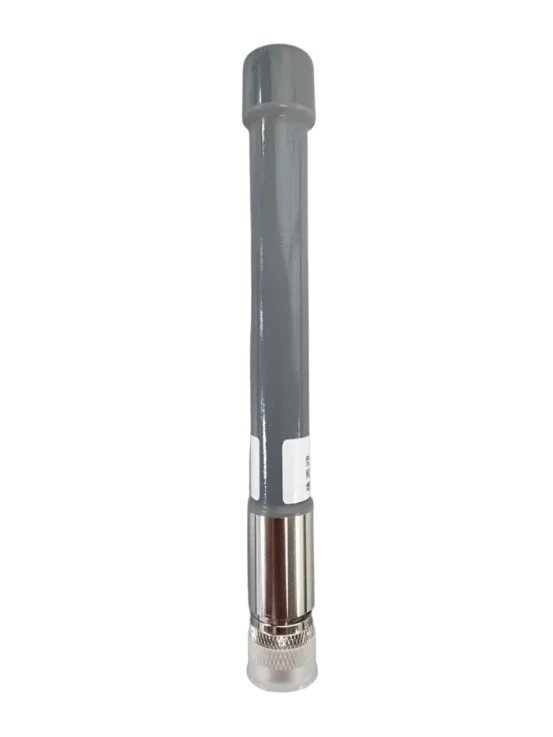

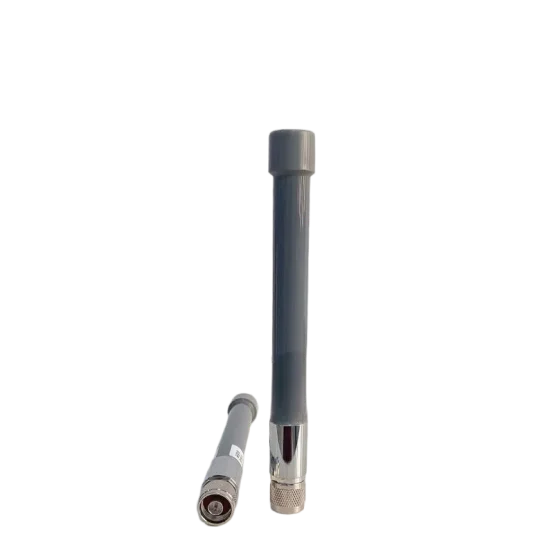

N-J Connector 360° Coverage 8dBi Gain 2500-2700MHz 2.5GHz Omnidirectional Antenna

N-J Connector 360° Coverage 8dBi Gain 2500-2700MHz 2.5GHz Omnidirectional Antenna

Description

[email protected]

Description

Product Description

1.Optimized 2.5GHz Band Performance (2500-2700MHz): Delivers reliable 8dBi gain with 200MHz bandwidth, perfectly suited for 5G applications and high-speed WiFi systems. Ensures stable connectivity in dense urban environments.

2.True 360° Omnidirectional Coverage: Provides consistent signal reception from all directions without the need for antenna adjustment. Ideal for applications requiring uniform coverage in all directions.

3.Compact and Lightweight Design: Measuring only Φ20×500mm and weighing just 1kg, this antenna offers easy installation and minimal visual impact. Perfect for space-constrained deployments and aesthetic-sensitive locations.

4.Wide Temperature Range Operation: Functions reliably from -40℃ to +80℃, making it suitable for extreme weather conditions. The gray FRP radome provides excellent durability and UV resistance.

5.Professional N-J Connector with Direct Connection: Features a reliable connector for secure installation. Withstands 60m/s wind speeds and offers straightforward mounting for quick deployment.

Product Detail

Recommend Products

Electrical Specifications
Frequency (MHz)	2500～2700
Polarization	Vertical
Gain (dBi)	8
Bandwidth (MHz)	200
Radiation Direction	360°
Input Impedance (Ω)	50
VSWR (Voltage Standing Wave Ratio)	≤1.5
Maximum Power (W)	50
Mechanical Specifications
Connector Type	N-J
Connector Position	Bottom
Radome Material	Fiberglass Reinforced Plastic (FRP)
Radome Color	Gray
Antenna Dimensions (mm)	≤Φ20×500
Antenna Weight (kg)	1
Maximum Wind Speed (m/s)	60
Operating Temperature (℃)	-40～+80
Installation Method	Direct Connection

Company Profile

product n j connector 360 coverage 8dbi gain 2500 2700mhz 25ghz omnidirectional antenna-2

product n j connector 360 coverage 8dbi gain 2500 2700mhz 25ghz omnidirectional antenna-3

product n j connector 360 coverage 8dbi gain 2500 2700mhz 25ghz omnidirectional antenna-4

product n j connector 360 coverage 8dbi gain 2500 2700mhz 25ghz omnidirectional antenna-5

product n j connector 360 coverage 8dbi gain 2500 2700mhz 25ghz omnidirectional antenna-6

product n j connector 360 coverage 8dbi gain 2500 2700mhz 25ghz omnidirectional antenna-7

FAQ

Q: Are you a manufacturer or a trading company? A: We have been professional antenna manufacturer for 18 years. Q: Have gps gsm combo antenna 100% assembles well in stock? A: No, all gps gsm combo antenna will be newly assembled according to your orders including the samples. Q: Could I use my own LOGO or design on goods? A: Yes, customized logo and design on mass production are available. Q: What's the payment term? A: T/T, AliPay,Paypal,Afterpay,Klarna etc. Q:What certifications do you have? A:Certified by FCC, CE, RoHS,ISO available upon request. Q: Where is your factory located? Can I visit your factory? A: Factory address: 2nd Floor, Building D4-1, Hongfeng Science and Technology Park, Nanjing Economic and Technological Development Zone, Jiangsu Province. Just call us, we will pick you up with no delay.
