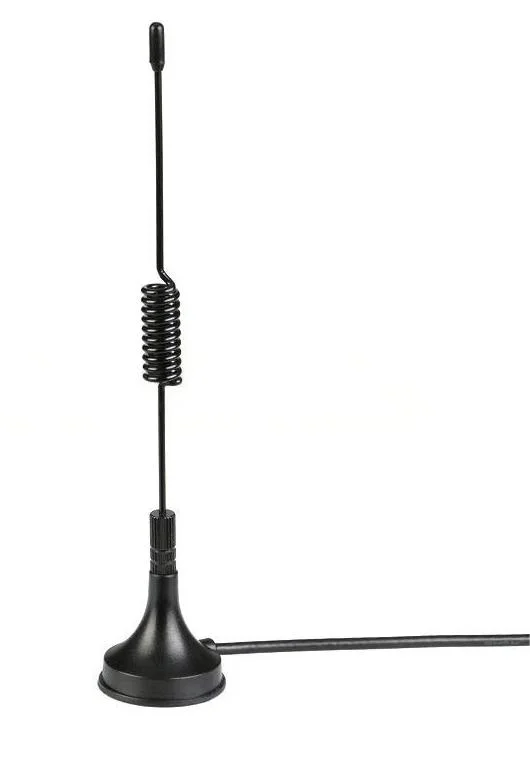

Omnidirectional 1.8dBi 223-235MHz Vehicle Magnetic Antenna with Suction Cup Base

Omnidirectional 1.8dBi 223-235MHz Vehicle Magnetic Antenna with Suction Cup Base

Description

[email protected]

Description

Product Description

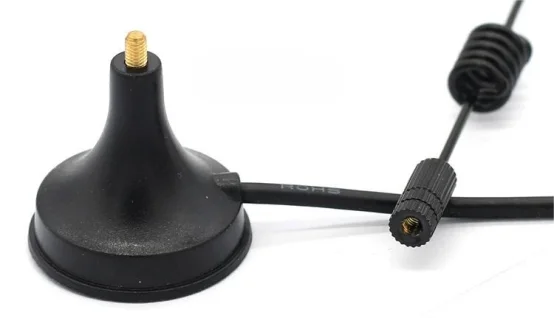

1.Strong Magnetic Base for Instant Installation: Features an M62 suction cup base with powerful magnetic adsorption. Simply place it on any metal surface - no tools or drilling required. Set up your communication system in seconds.

2.True 360° Omnidirectional Coverage: Ensures consistent signal reception from all directions. Perfect for moving vehicles where orientation changes constantly - never worry about signal dropouts due to direction changes.

3.Complete 3-Meter Cable Ready to Use: Comes with a generous 3-meter SMA-J cable, providing ample length for flexible installation in vehicles and temporary setups. Just connect and start communicating immediately.

4.Professional VHF Performance: Operating in the 223-235MHz band with 1.8dBi gain, this antenna delivers reliable communication for professional and personal use. Handles up to 100W power for clear, long-range transmissions.

5.Ultra-Lightweight at Only 0.2kg: Weighing just 200 grams, this antenna is perfect for portable applications. The compact 292mm design stores easily and deploys quickly, making it ideal for emergency kits and mobile use.

Product Detail

Electrical Specifications
Frequency Range (MHz)	223～235
Polarization	Vertical
Voltage Standing Wave Ratio (VSWR)	≤1.5
Gain (dBi)	1.8
Electrical Downtilt (°)	0
Horizontal Half-Power Beamwidth (°)	360
Maximum Power (W)	100
Input Impedance (Ω)	50
Mechanical Specifications
Connector Type	SMA-J
Connector Position	Bottom Lead
Length of Leading Cable (m)	3
Antenna Dimensions (including suction cup base, mm)	292
Antenna Weight (including suction cup base, kg)	0.2
Radome Color	Black
Operating Temperature (℃)	-40～+70
Installation Method	Magnetic Adsorption
Remarks	Equipped with M62 suction cup base; length of leading cable is 3m.
