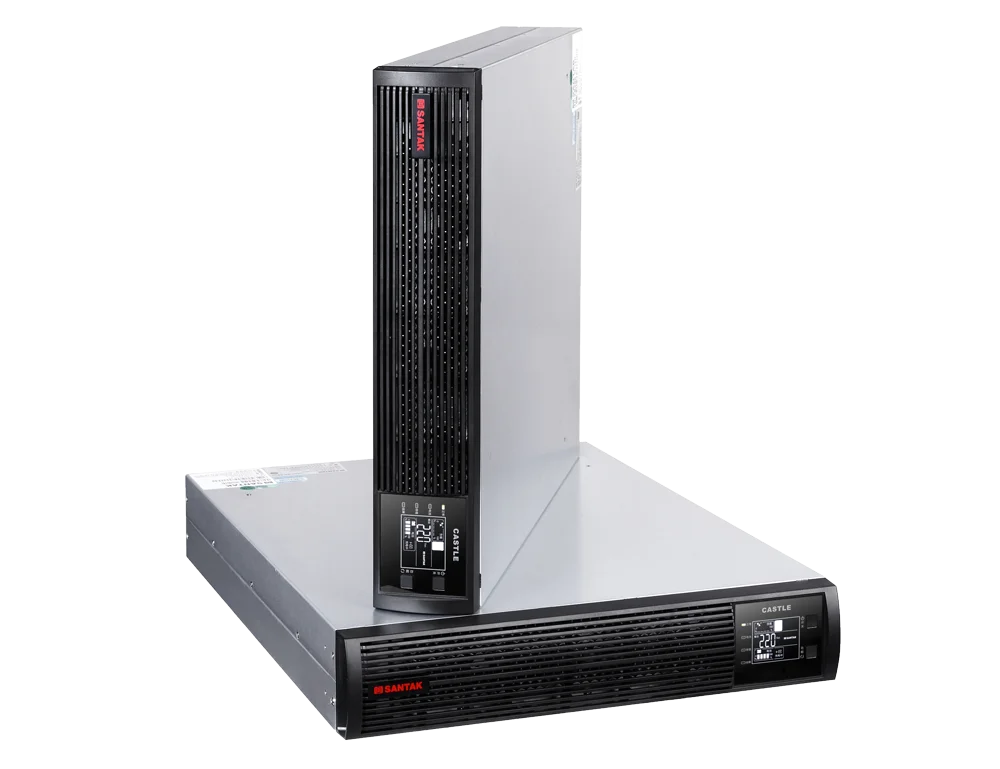

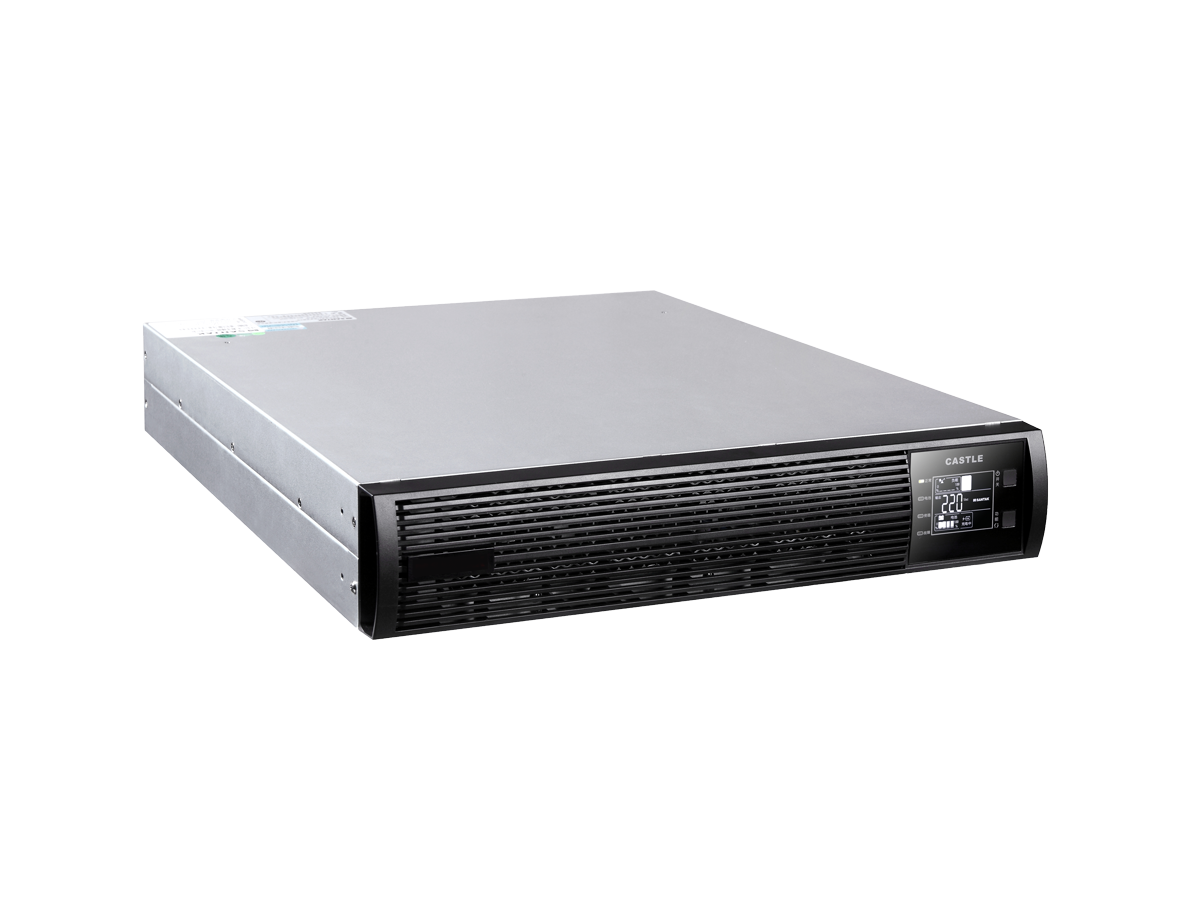

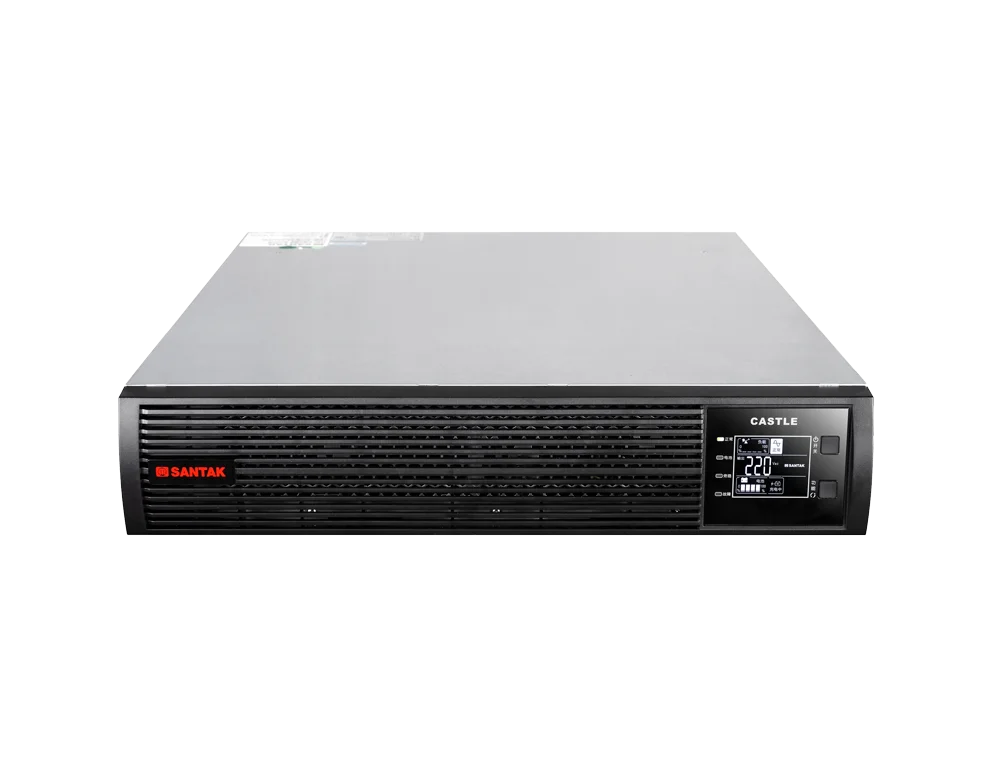

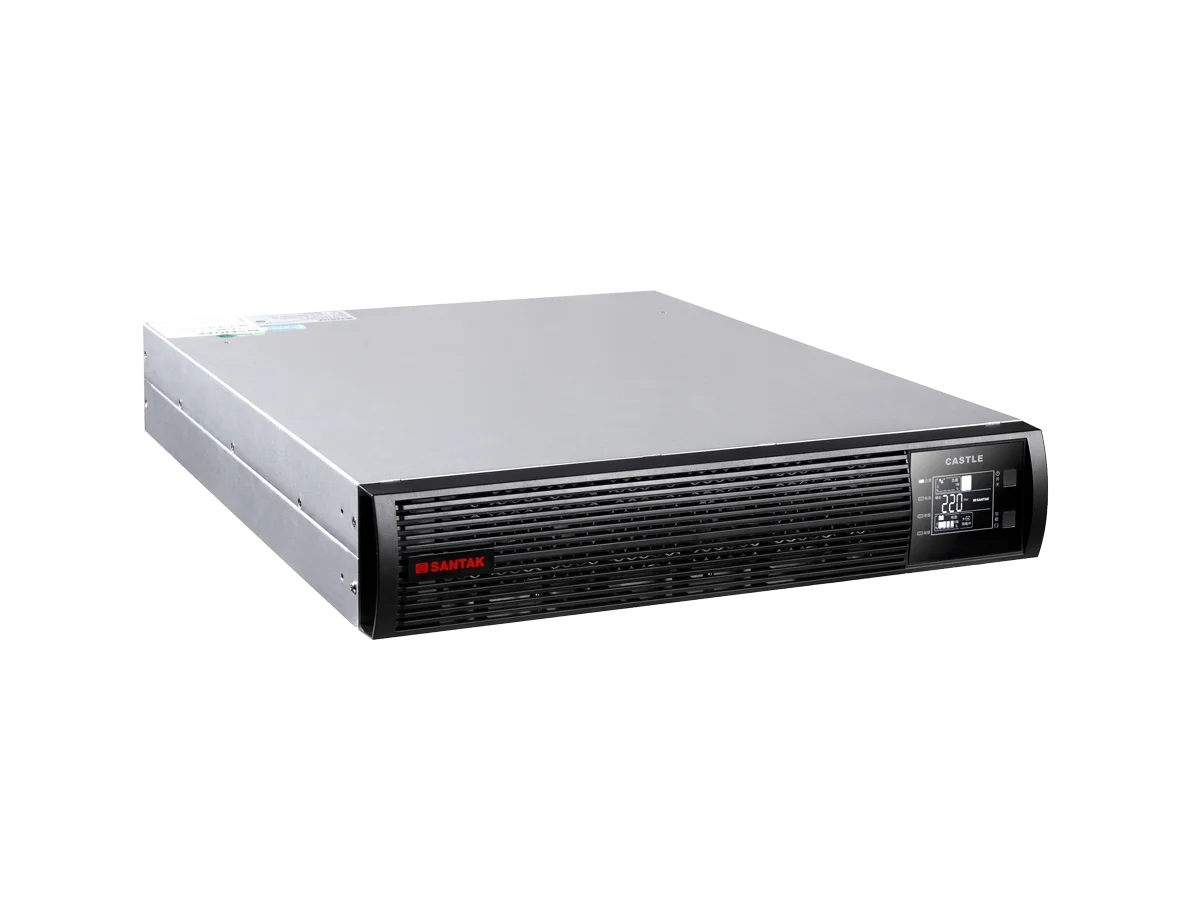

Online 6KVA 10KVA Rack-Mounted Uninterruptible Power Supply (UPS) with Lead Acid Battery

Online 6KVA 10KVA Rack-Mounted Uninterruptible Power Supply (UPS) with Lead Acid Battery

Description

[email protected]

Description

Product Description

Yoongwin Situation Awareness Technology Co., Ltd., founded in 2007 in Nanjing Economic and Technological Development Zone with a registered capital of RMB 60.06 million, controls eight medium - sized tech enterprises. Its main business spans thin - film circuits, antenna & feeder products, etc., and it's involved in industrial Internet security and electromagnetic space protection.
As a member of multiple associations, it holds dual - software and ISO2700 info security certifications. With over 100 patents, it was recognized as a Nanjing Gazelle Enterprise from 2020 - 2022, indicating continuous growth.

Online 6KVA 10KVA Rack-Mounted Uninterruptible Power Supply (UPS) with Lead Acid Battery details

Product Detail

Product Model	C6K Rack	C6KS Rack	C10K Rack	C10KS Rack
Rated Output Capacity	6000VA/5400W	6000VA/5400W	10000VA/9000W	10000VA/9000W
Output Characteristics
Output Waveform	Sine Wave
Rated Voltage	208/220/230/240VAC
Output Voltage Accuracy	±1%
Output Voltage Total Harmonic Distortion	<1% for linear load, <4% for non-linear load
Output Frequency (Battery Mode)	(50/60±0.1)Hz
Operating Efficiency	95%; Efficiency in ECO mode ≥98%
Overload Capacity	125% for 10 minutes; 150% for 1 minute
Input Characteristics
Input Voltage Range	110VAC - 276VAC
Input Frequency Range	40 - 70Hz
Input Connection	Single - phase three - wire (live wire/neutral wire/ground wire)
Input Harmonic Current	<3%
Input Power Factor	≥0.99
Battery Configuration and Management
Configurable Number of 12V Batteries	Default 16 pieces, long-machine 16 - 20 pieces can be set
Battery Backup Time (75% Load)	6.5 minutes	-	5 minutes	-
Charging Capacity	Default 1.4A, 1 - 4A can be set	Default 4A, 1 - 12A can be set	Default 2A, 1 - 4A can be set	Default 4A, 1 - 12A can be set
Interfaces and Communication Management
Operation and Display Panel	LCD + LED
Standard Communication Interface	RS232/USB
Communication Slot	1 piece, standard configuration
Expandable Communication Cards	NMC card, CMC card, AS400 card, SPCC card
Emergency Power Off (EPO) Interface	Standard configuration
Programmable Dry-contact Interface	1 input + 1 output, standard configuration
Communication Software	Winpower
Physical Parameters
Main Unit Dimensions WDH (mm)	43857186.3
Main Unit Installation Height	2U
Main Unit Weight (Kg)	13.3	13.6	15.2	15.5
Battery Module Dimensions WDH (mm)	438594130
Battery Module Installation Height	3U
Battery Module Weight (Kg)	46	-	52	-
Main Unit Shipping Dimensions WDH (mm)	586766238
Main Unit Shipping Weight (Kg)	16.3	18	16.4	18.3
Battery Module Shipping Dimensions WDH (mm)	578796353
Battery Module Shipping Weight (Kg)	52	-	58	-
Environmental Parameters
Operating Ambient Temperature	0°C - 50°C
Operating Ambient Humidity	0 - 95% (non-condensing)
Storage Temperature	-25°C - 55°C
Operating Noise (Typical Load, 1m away)	≤45dB	≤45dB	≤50dB	≤50dB
Protection Level	IP20
Standards and Certifications
Product Standard	IEC61000/IEC62040/GB4943/GB7260
Product Certification	TLC/Energy-saving Certification/CE
