Product Model |
PT1K - UL |
PT2K - UL |
PT3K - UL |
|||
Output |
||||||
Rated Capacity |
1kVA/1kW |
2kVA/2kW |
3kVA/3kW |
|||
Output Power Factor |
1 |
|||||
Output Rated Voltage |
220V (default) (200/208/220/230/240 VAC optional) * |
|||||
Output Voltage Accuracy |
±1% |
|||||
Rated Output Frequency |
50Hz/60Hz adaptive |
|||||
Output Voltage Total Harmonic Distortion THDV |
<1% (linear load) |
|||||
Crest Factor Ratio |
3:1 |
|||||
Maximum Efficiency of the Online Double Conversion Mode @220V Full Load |
91% |
93% |
93% |
|||
Maximum Efficiency of the Economic Mode |
96% |
97% |
97% |
|||
Overload Capacity |
125%, 10 minutes |
|||||
Input |
||||||
Input Voltage Range |
110 - 300VAC (<160VAC derating required) |
|||||
Input Frequency Range |
45 Hz - 55 Hz (50Hz) /54 Hz - 66 Hz (60Hz) |
|||||
Input Power Factor (PF) |
≥0.99 |
|||||
Input Current Total Harmonic Distortion (THDI) |
<5% |
|||||
Battery |
||||||
Battery Voltage |
36VDC |
72VDC |
72VDC |
|||
Built - in Battery |
7Ah*3 |
None |
None |
|||
Charging Current |
15A |
1.5A |
1.5A |
|||
Battery Charge Temperature Compensation |
Support |
|||||

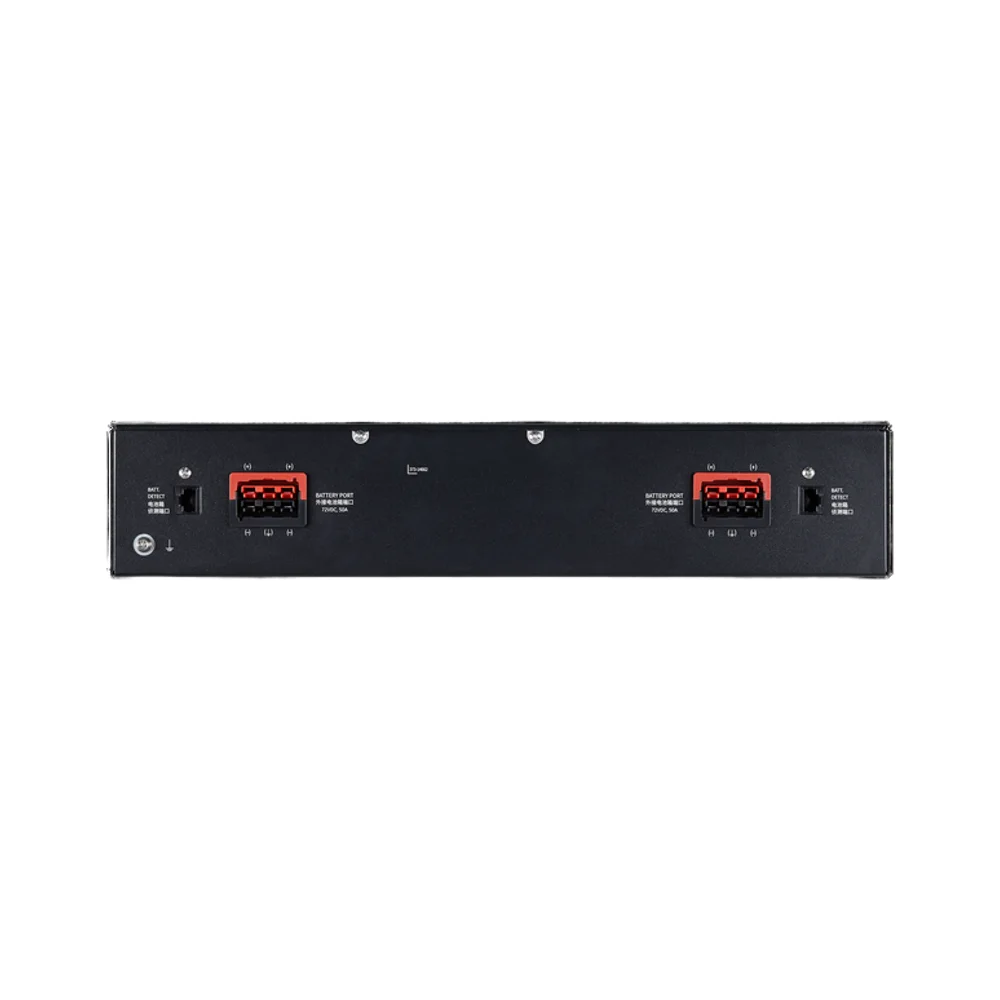

EBM Model |
PTB9032 - UL |
PTB9061 - UL |
||||
EBM Battery Capacity * Quantity |
9Ah32 |
9Ah*6 |
||||
Input/Output Interface |
||||||
Input Socket |
IEC C14 |
IEC C20 |
||||

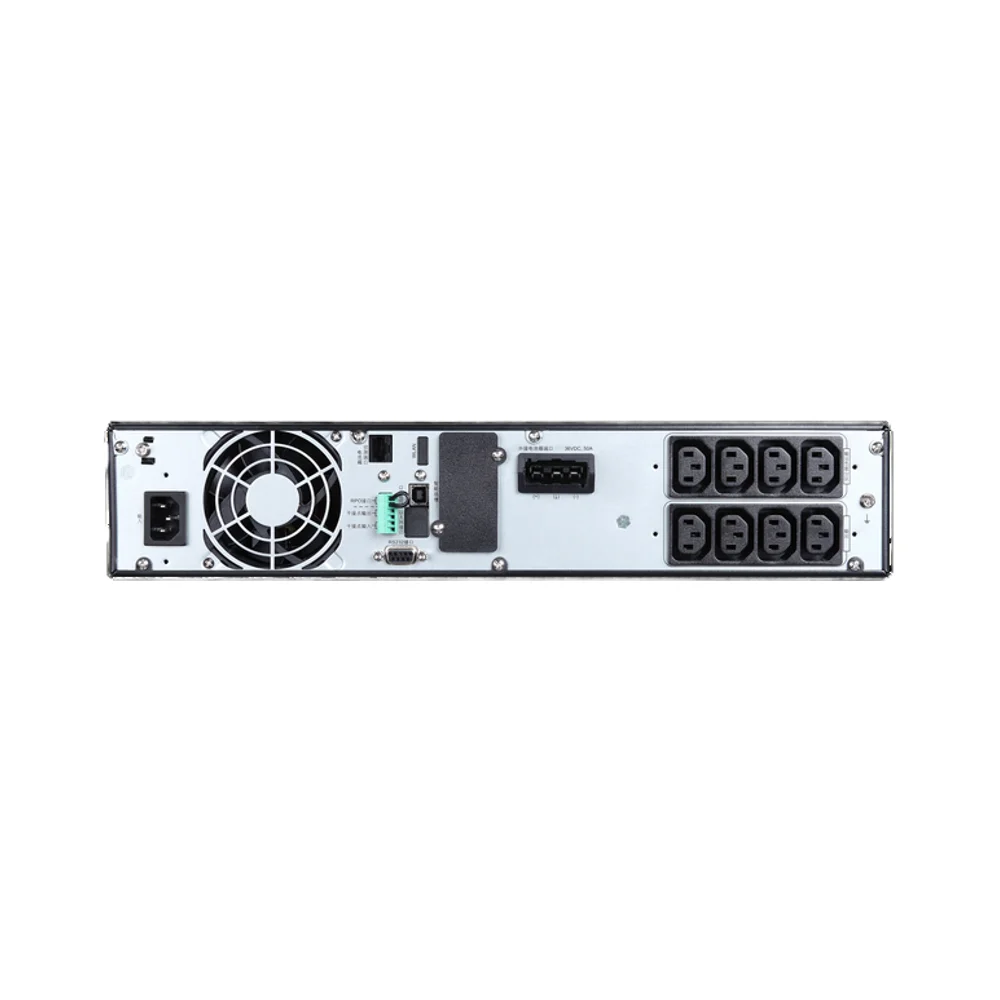

Output Socket |
Main Output 4*IEC C13 Zonal Control Output 4*IEC C13 |
Main Output 1*IEC C19 + 4*IEC C13 Zonal Control Output 4*IEC C13 |
||||
Communication and Display |
||||||
Display Screen |
LCD (Chinese/English) |
|||||
Communication Interface |
Standard with USB, RS232, RPO, Smart Slot, Dry Contacts |
|||||
Dimensions and Weight |
||||||
Installation Type |
Rack Mount/Tower Installation |
|||||
UPS Width*Depth*Height (Rack Mounted) |
438*445*85.5mm(2U) |
438*499*85.5mm(2U) |
||||
UPS Net Weight |
14.7kg |
8.7kg |
9kg |
|||
UPS Width*Depth*Height (Packaged) |
498*585*240mm |
580*780*240mm |
||||
UPS Gross Weight |
17.7kg |
13.1kg |
13.3kg |
|||
EBM Width*Depth*Height (Rack Mounted) |
438*445*85.5mm(2U) |
438*445*85.5mm(2U) |
||||
EBM Net Weight |
22.7kg |
22.8kg |
||||
EBM Width*Depth*Height(Packaged) |
498*585*240mm |
498*585*240mm |
||||
EBM Gross Weight |
25.7kg |
25.8kg |
||||
Working Environment |
||||||
Operating Environment Temperature |
0℃~50℃ (No derating below 40℃, derating 3% for each 1℃ increase above 40℃) |
|||||
Operating Environment Humidity |
0~95% (Non condensation) |
|||||
Operating Environment Altitude |
0~3000m (No derating below 25℃, derating 1% per 100m above 1000m above 25℃) |
|||||
Protection Level |
IP20 |
|||||
Certification |
CE, UL |
|||||
Warranty Period |
3 years (Normal temperature environment) |
|||||
*208V output capacity derate by 10%, 200V output capacity derate by 20% |
||||||
