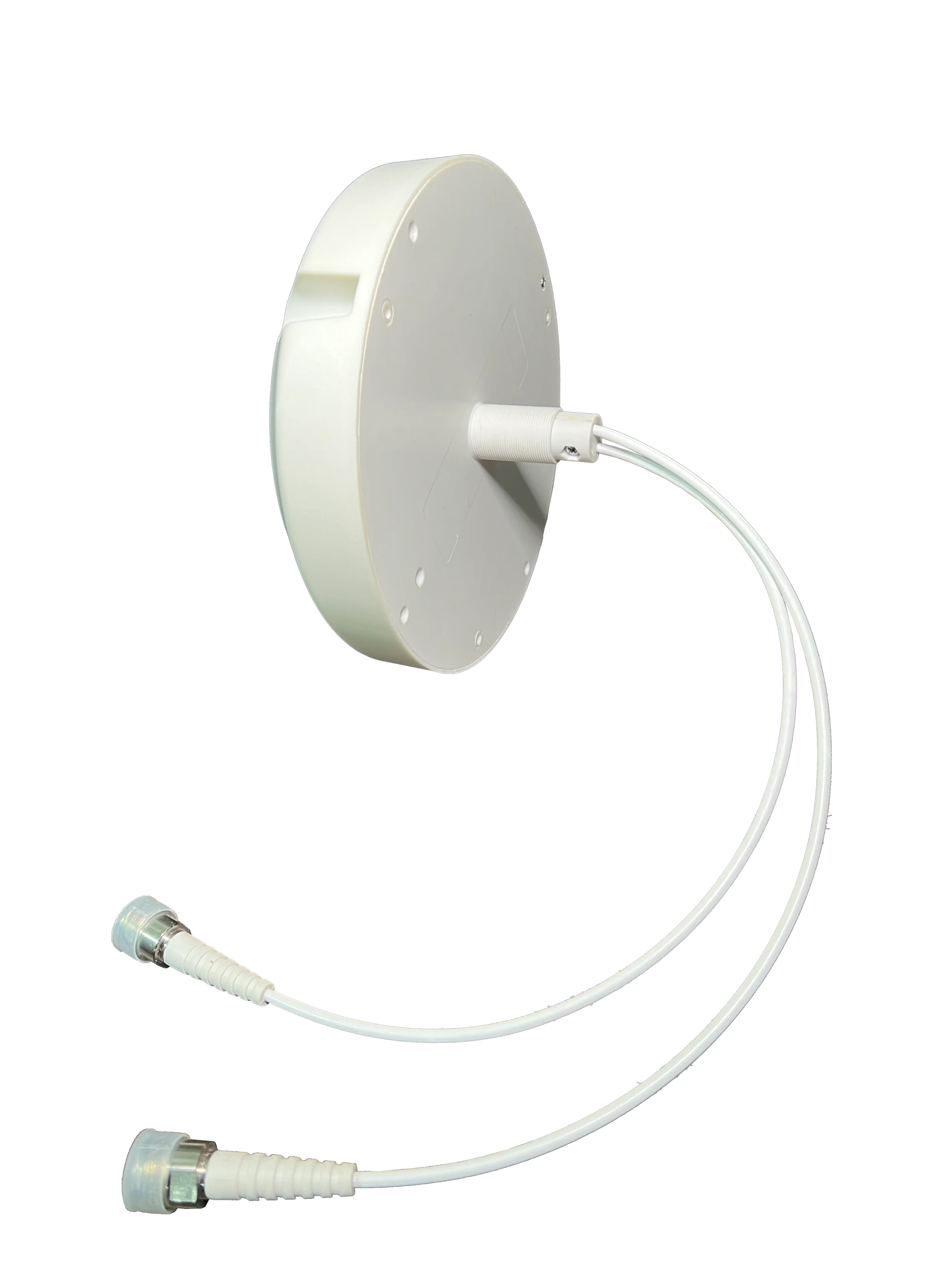

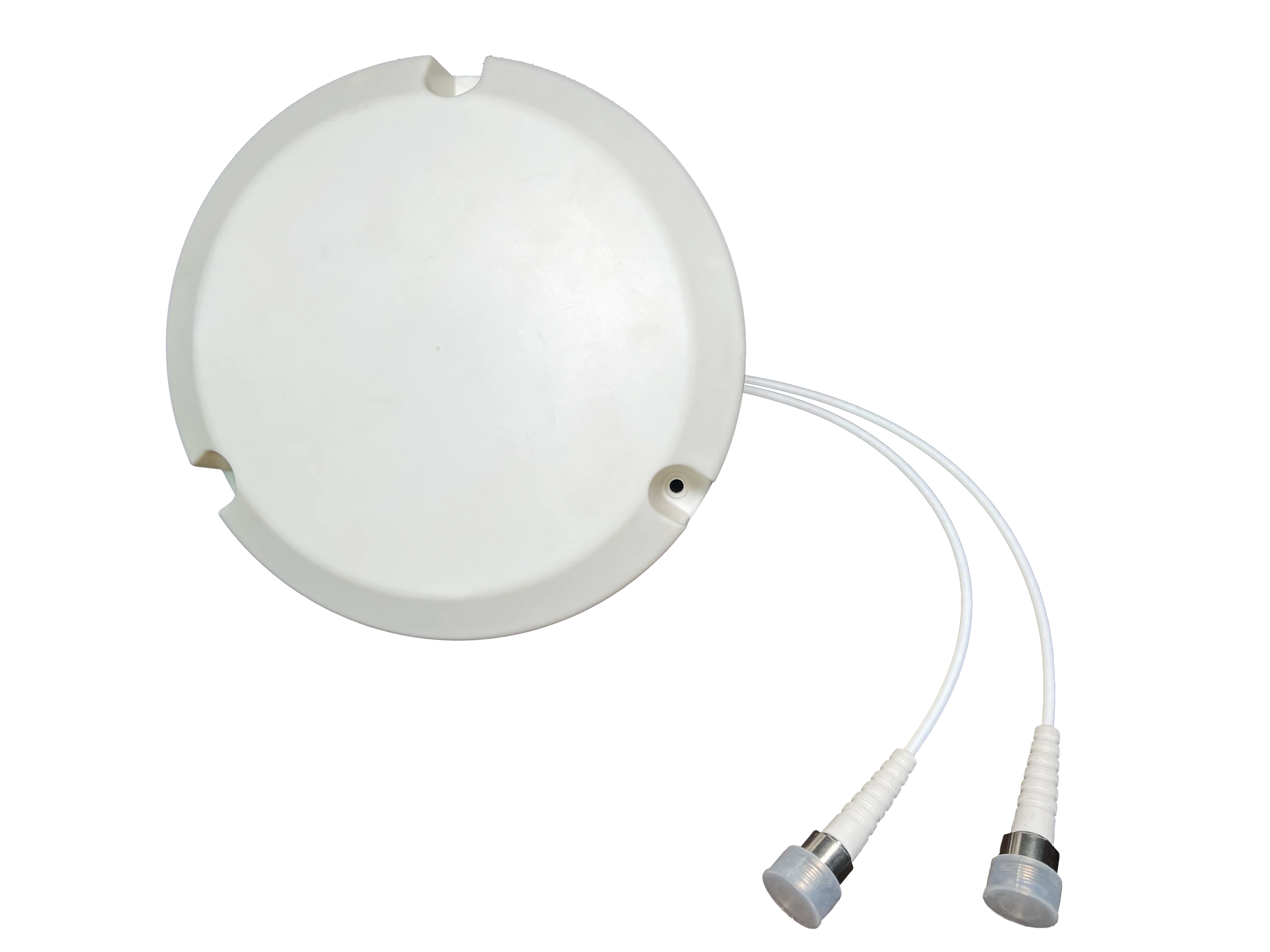

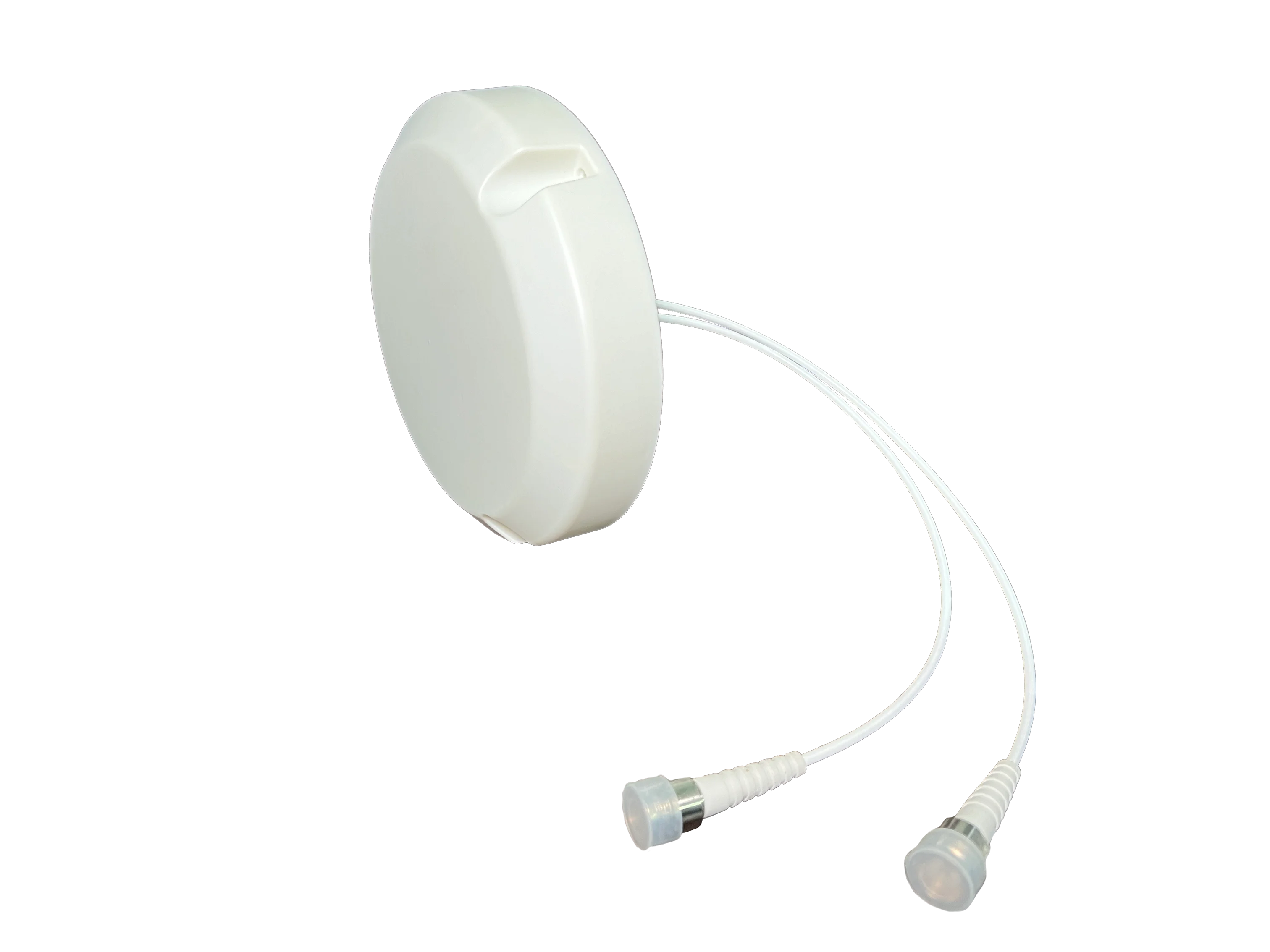

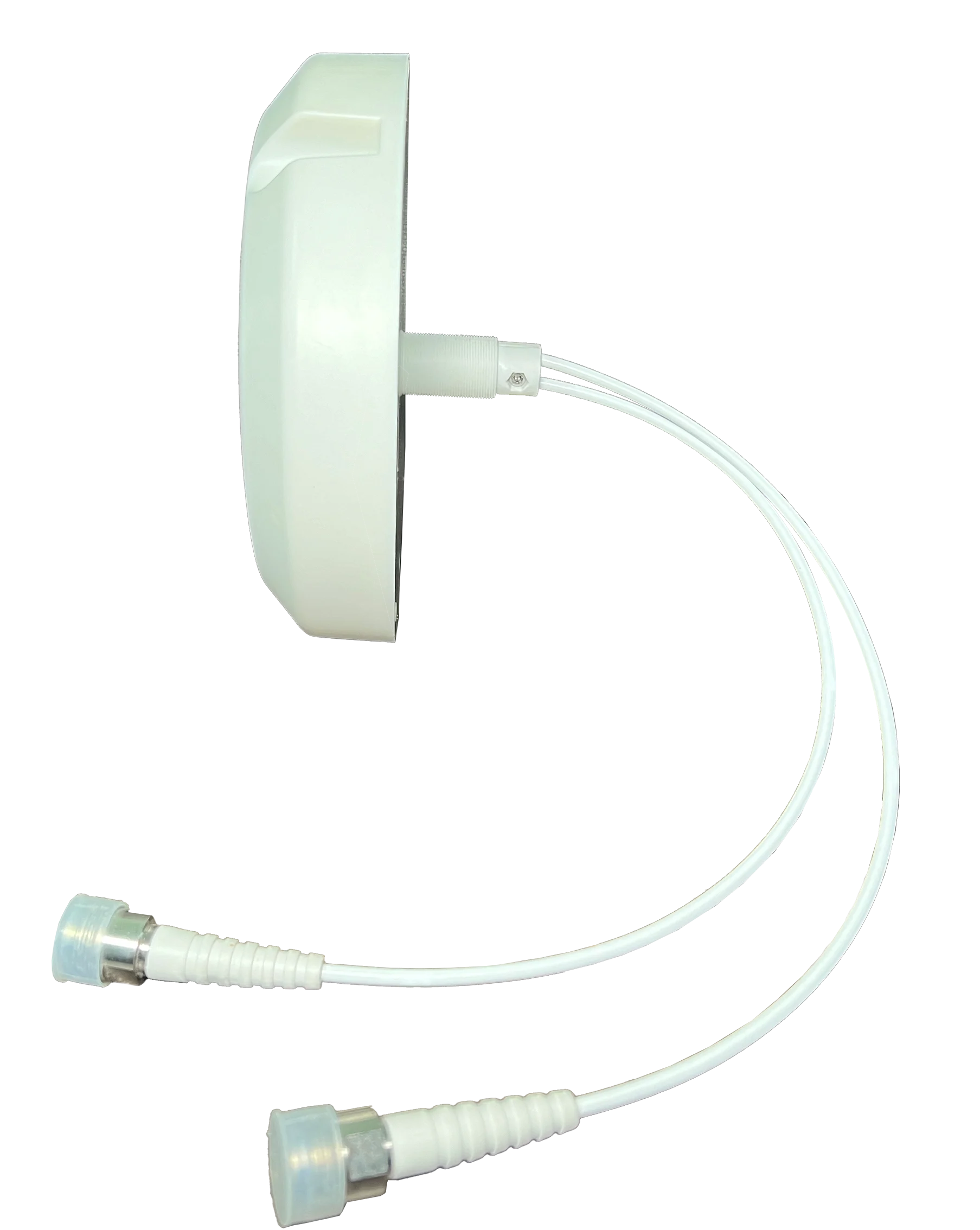

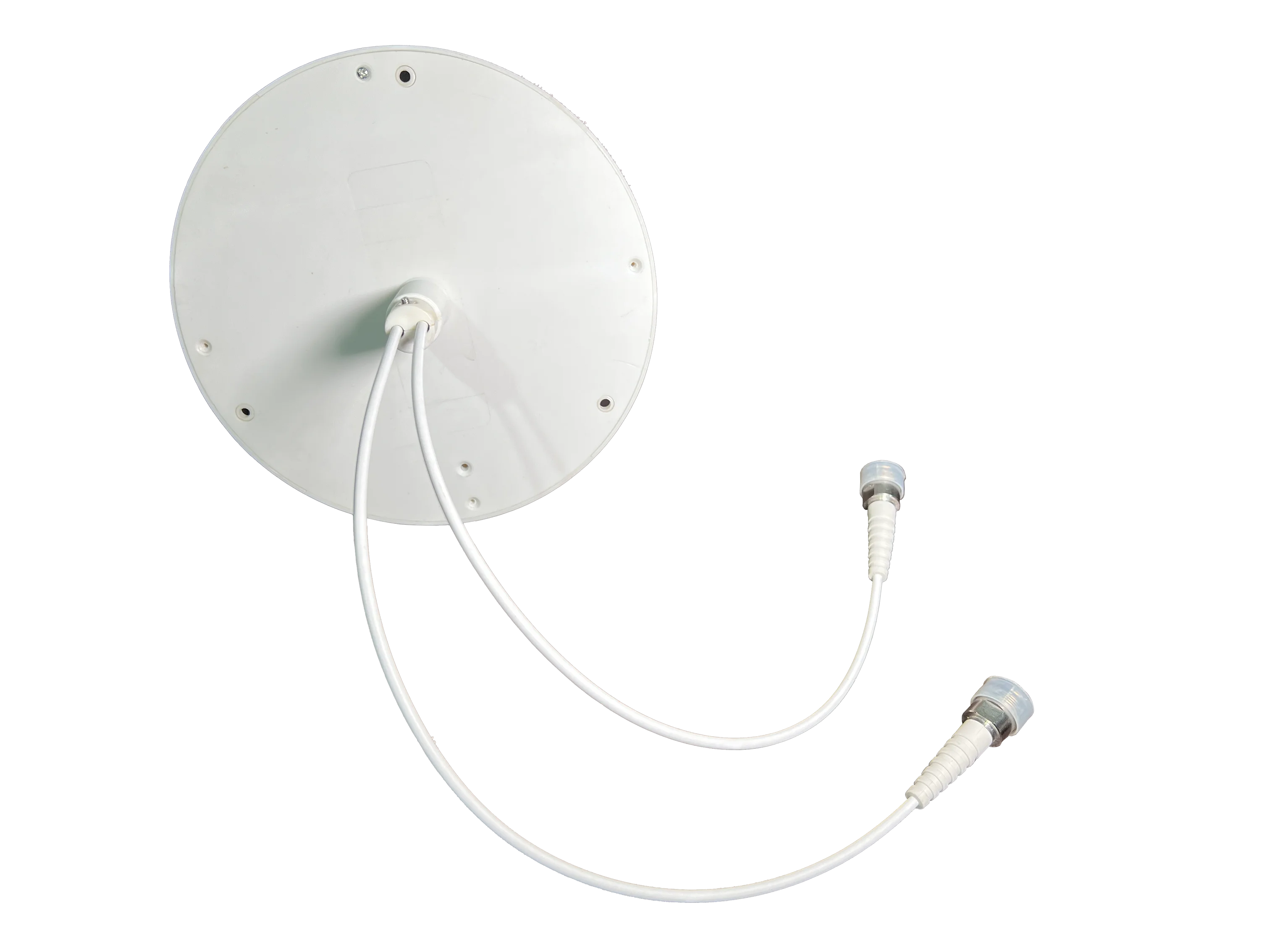

YWDSPXD698-3800VH-4i-360-4310-1 |
||||||
Frequency range (MHz) |
698-960 |
1710-2700 |
3300-3800 |
|||
Polarization |
Linear x 2 |
|||||
Gain(dBi) |
2.5±1 |
4±1 |
4±1 |
|||
Horizontal half-power beam width (°) |
360 |
|||||
Vertical half-power beam width(°) |
75~110 |
30~65 |
20~60 |
|||
Isolation ：intra-system(dB) |
≥17 |
≥20 |
≥20 |
|||
VSWR |
≤1.8 |
|||||
PIM, 3rd Order (dBc) |
≤-150 (2 × 43 dBm carrier) |
|||||
Impedance(Ω) |
50 |
|||||
Maximum input power(W) |
50 |
|||||
Lightning protection |
DC ground |
|||||
Mechanical specifications |
||||||
Connector |
2 × 4.3-10 Female |
|||||
Dimensions (mm) |
φ208 × 55 |
|||||
Net weight (with installation kit) (kg) |
0.7 |
|||||
Application scen |
Indoor |
|||||
Radiation material |
aluminum |
|||||
Radome materia |
HIPS |
|||||
Operating temperature (℃) |
-40 to +55 |
|||||
Mounting Kit |
Ceiling, via hole |
|||||
