Product Name |

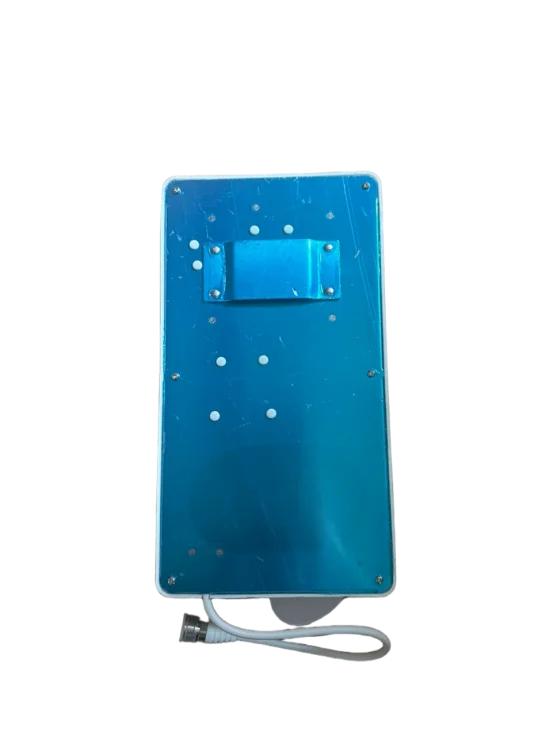

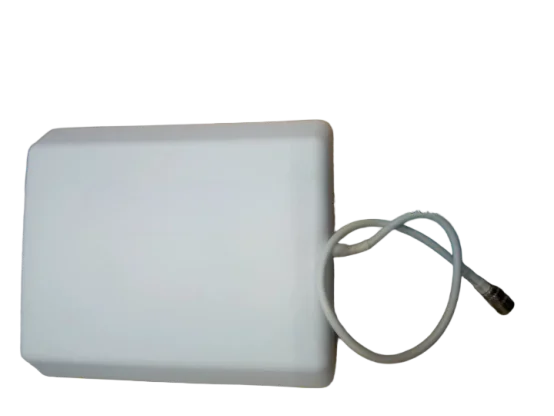

Indoor Dual-Polarization Wall-Mounted Antenna |
|||||||||||||
Electrical Performance |
||||||||||||||
Operating Frequency Band (MHz) |
880-960 |
1710-1850 |
1885-1915 |
2010-2025 |
2300-2400 |
2400-2483.5 |
2515-2675 |
|||||||
Polarization Mode |
V |
±45° |
||||||||||||
Gain (dBi) |
≥6.5 |
≥7.5 |
≥7.5 |
≥7.5 |
≥8 |
≥8 |
≥8 |
|||||||
Horizontal Plane Lobe Width (°) |
90±10 |
75±10 |
75±10 |
75±10 |
75±10 |
75±10 |
75±10 |
|||||||
Vertical Half-Power Beamwidth (°) |
85 |
65 |
65 |
65 |
65 |
60 |
55 |
|||||||
Cross-Polarization Ratio (Axial, dB) |
/ |
≥15 |
≥15 |
≥15 |
≥15 |
≥15 |
≥15 |
|||||||
Front-to-Back Ratio (dB) |
≥12 |
≥15 |
≥15 |
≥15 |
≥15 |
≥15 |
≥15 |
|||||||
Polarization Isolation (dB) |
≥25 |
|||||||||||||
Third-Order Intermodulation (dBm@2*2W) |
≤-85 |
≤-85 |
/ |
|||||||||||
Average Power Tolerance (W) |
≥50 |
|||||||||||||
Mechanical Performance |
||||||||||||||
Antenna Enclosure Material |
ABS/PS |
|||||||||||||
Connector Type |
N-type Female |
|||||||||||||
Connector Lead Length (mm) |
≥250 |
|||||||||||||
Antenna Dimension (mm) |
275*148*59 |
|||||||||||||
Packaging Dimension (mm) |
312*155*70 |
|||||||||||||
Antenna Weight (kg) |
0.3 |
|||||||||||||
Operating Temperature (℃) |
-30~+45 |
|||||||||||||
Storage Temperature (℃) |
-40~+55 |
|||||||||||||
