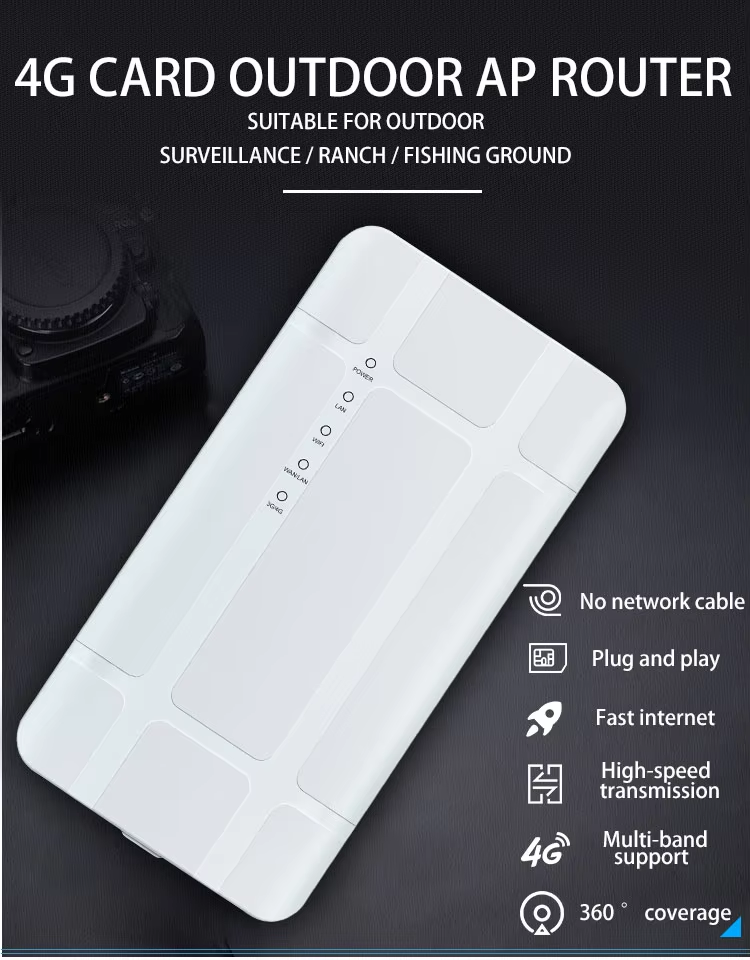

Introducing, the Yoongwin Outdoor 4G Router, the ultimate solution for reliable and high-speed internet connection in outdoor settings. This industrial-grade 4G LTE WiFi router is designed to withstand the elements, featuring a rain-proof and sun-proof casing that ensures it can thrive in any outdoor environment.
With its built-in 5dBi 4G professional antenna, the Yoongwin Outdoor 4G Router delivers superior signal strength and connectivity, allowing you to stay connected even in remote locations. Say goodbye to unreliable internet connections and slow speeds – this router is designed to keep you connected no matter where you are.
Whether you're camping, hiking, or working in a remote location, the Yoongwin Outdoor 4G Router is the perfect companion for all your outdoor adventures. Its rugged design and durable construction make it ideal for outdoor enthusiasts and professionals alike.
Not only does the Yoongwin Outdoor 4G Router offer robust connectivity, but it also provides advanced security features to keep your data safe and protected. With support for VPN and firewall capabilities, you can rest assured that your information is secure while you browse the web or access your important documents.
Setting up the Yoongwin Outdoor 4G Router is a breeze, thanks to its user-friendly interface and simple installation process. Just plug it in, connect your devices, and start enjoying fast and reliable internet connection wherever you go.
Don't let slow internet speeds or spotty connectivity hold you back – upgrade to the Yoongwin Outdoor 4G Router today and experience the freedom of seamless internet access in any outdoor setting. Whether you're working remotely, streaming your favorite TV shows, or staying connected with friends and family, this router has you covered.
Stay connected, stay productive, and stay safe with the Yoongwin Outdoor 4G Router – your go-to solution for outdoor internet connectivity. Upgrade your outdoor experience today and enjoy fast, reliable, and secure internet connection wherever you go
Main Chip |
MTK7628KN 300M High - performance Enterprise - class Chip |
Main Frequency |
580MHz |
Wireless Technology |
802.11b/g/n 300M MIMO Technology |
Flash Memory |
2MB |
RAM |
8MB |
Device Interfaces |
1× WAN 10/100Mbps Adaptive Network Interface 2× LAN 10/100Mbps Adaptive Network Interface SIM Card - Large - sized |
Antenna |
2× 4G 2T2R 5dBi Antennas 2× WiFi 2T2R 2.4G 5dBi Antennas |
Power Consumption |
< 10W |
Button |
1 RESET Button: Long - press for 3 seconds to Restore Factory Settings |
Indicator Lights |
5 Groups: POWER, LAN, WIFI, WAN/LAN, 3G - 4G |
Dimensions/Weight |
N/A, N/A |
Operating/Storage Temperature |
-10°C ~ 50°C / -40°C ~ 70°C |
Operating/Storage Humidity |
5% ~ 95% - Non - condensing |
RF Parameters |
802.11b/g/n: 2.4 ~ 2.4835GHz |
Modulation Modes |
11b: DSSS: [email protected]/11Mbps, DBPSK@2Mbps, DBPSK@1Mbps 11g: OFDM: 64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps 11n: MIMO - OFDM: BPSK, QPSK, 16QAM, 64QAM |
Transmission Rates |
11b: 1/2/5.5/11Mbps 11g: 6/9/12/18/24/36/48/54Mbps 11n: Up to 300Mbps |
Receive Sensitivity |
11b: < - 84dBm@11Mbps; 11g: < - 69dBm@54Mbps; 11n: HT20 < - 67dBm, HT40: < - 64dBm |
Transmit Power |
11b: 18dBm@1 ~ 11Mbps 11g: 16dBm@6 ~ 54Mbps 11n: 15dBm@MCS0 ~ 7 |
Communication Standards |
IEEE 802.3 - Ethernet IEEE 802.3u - Fast Ethernet IEEE 802.11b/g/n - 2.4G WLAN |
Wireless Security |
WPA/WPA2 Security Mechanisms - WPA - PSK with TKIP or AES |
Network Formats |
LTE FDD/TDD, UMTS DC - HSDPA/HSUPA/WCDMA, GSM EDGE/GPRS |
LTE - FDD - Supports Hierarchical Reception |
B1/B3/B5/B8 |
LTE - TDD - Supports Hierarchical Reception |
B34/B38/B39/B40/B41 |
WCDMA |
B1/B5/B8 |
GSM |
900/1800MHz |
Data |
LTE: LTE FDD: Max 150Mbps (DL) / Max 50Mbps - UL LTE TDD: Max 130Mbps (DL) / Max 30Mbps - UL UMTS: DC - HSDPA: Max 21Mbps - DL HSUPA: Max 5.76Mbps - UL WCDMA: Max 384Kbps (DL) / Max 384Kbps - UL GSM: EDGE: Max 296Kbps (DL) / Max 236Kbps - UL GPRS: Max 107Kbps (DL) / Max 85.6Kbps - UL |
Transmit Power |
Class 3 (23dBm±2dB) for LTE FDD bands Class 3 (23dBm±2dB) for LTE TDD bands Class 3 (24dBm+1/–3dB) for WCDMA bands Class E2 (27dBm±3dB) for EGSM900 8 - PSK Class E2 (26dBm±3dB) for DCS1800 8 - PSK Class 4 (33dBm±2dB) for EGSM900 Class 1 (30dBm±2dB) for DCS1800 |
Sensitivity |
FDD B1: –99dBm (10M) FDD B3: –99dBm - 10M FDD B5: –100dBm (10M) FDD B8: –100dBm - 10M TDD B34: –98dBm (10M) TDD B38: –100dBm - 10M TDD B39: –98dBm (10M) TDD B40: –99dBm - 10M TDD B41: –99dBm (10M) WCDMA B1: –110dBm WCDMA B5: –110dBm WCDMA B8: –110dBm EGSM900: –108dBm DCS1800: –108dBm |
