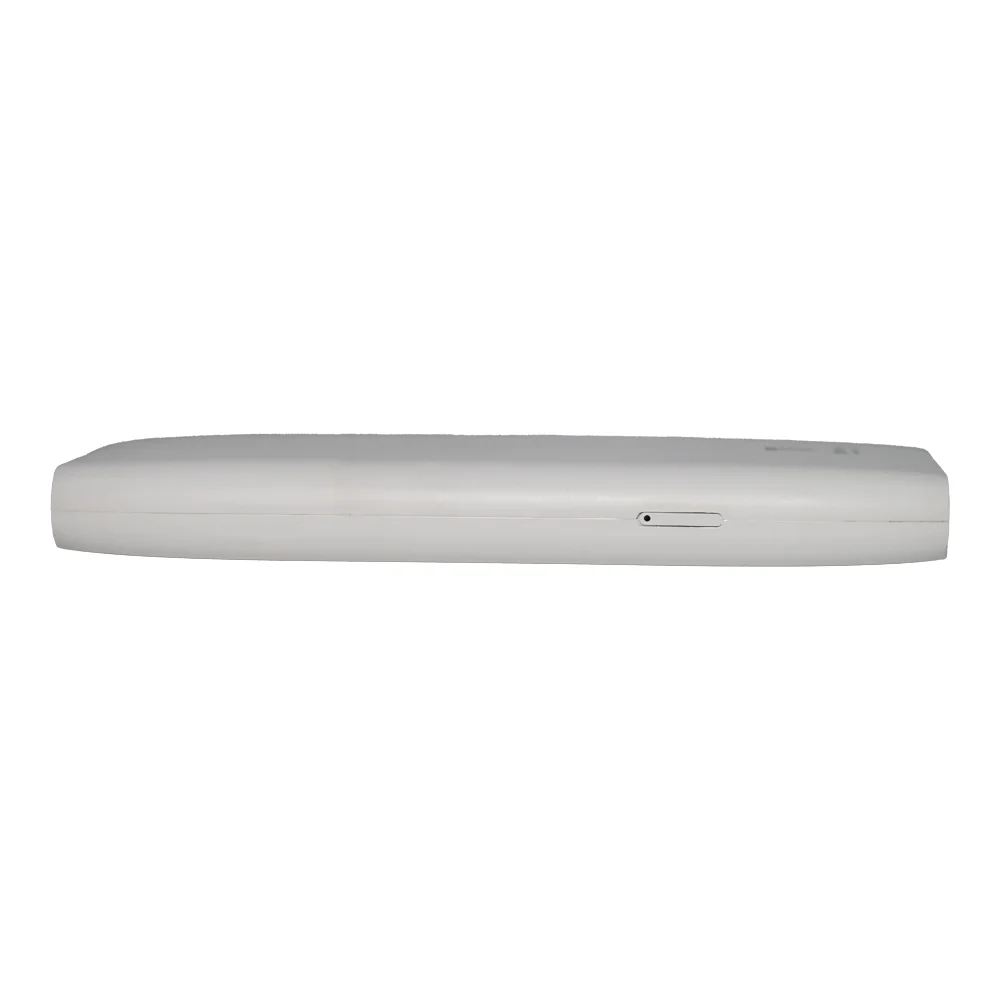

Introducing, the Yoongwin Portable Power Bank 10000mah with 4G Wifi! This innovative 2-in-1 device is a must-have for anyone on the go. Whether you need a quick charge for your phone or a reliable internet connection, this power bank has you covered.
With a capacity of 10000mah, this power bank can fully charge your phone multiple times, ensuring you never run out of battery when you need it most. The quick charging feature allows you to top up your phone's battery in no time, so you can get back to what you were doing without any interruptions.
But that's not all - the Yoongwin Portable Power Bank also features a built-in 4G Wifi hotspot. This means you can stay connected wherever you are, whether you're traveling, camping, or simply out and about. You can easily connect your devices to the wifi hotspot and enjoy fast and reliable internet access at all times.
The sleek and compact design of this power bank makes it perfect for travel. It easily fits in your pocket or bag, so you can take it with you wherever you go. The durable construction ensures that it can withstand the rigors of daily use, making it a reliable companion for all your adventures.
The Yoongwin brand is known for its high-quality products, and this Portable Power Bank is no exception. It is designed to meet the needs of modern consumers who require both power and connectivity on the go. With Yoongwin, you can trust that you are getting a reliable and efficient product that will make your life easier.
Don't settle for a regular power bank - upgrade to the Yoongwin Portable Power Bank 10000mah with 4G Wifi today and experience the ultimate convenience and peace of mind. Stay charged and connected wherever you go with this versatile and reliable device. Order yours now and enjoy the freedom of staying powered up and connected at all times
Hardware |
MT7628NN + Quectel High - Performance 4G Module EC200ACN |
|
Solution |
TM22G + SV6158-M |
|
Memory |
2Gb |
|
Flash |
512Mb |
|
Ethernet port |
None |
|
Interfaces |

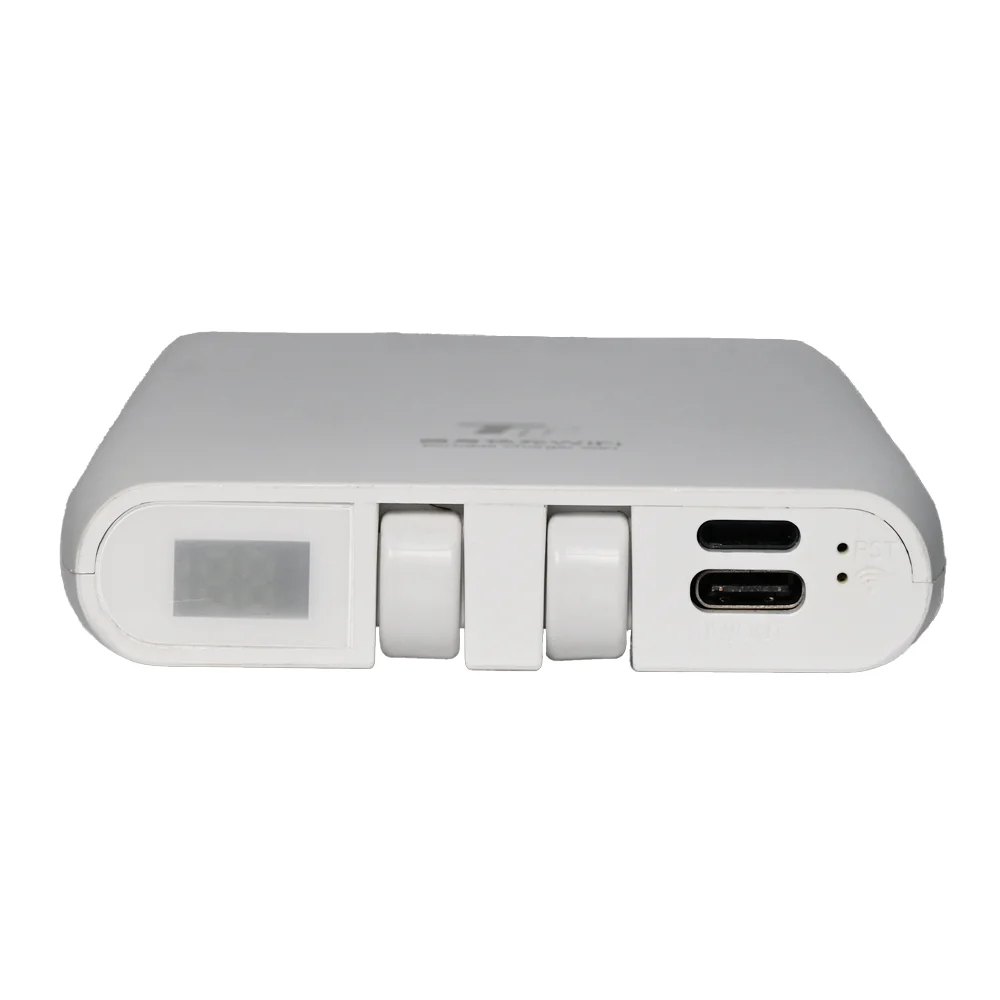

1 Type-C interface * Supports rated input: 5V/3A, 9V/2A, 12V/1.5A, with a maximum support of 18W * Supports rated output: 4.5V/5A, 5V/4.5A, 5V/3A, 9V/2.22A, 12V/1.67A, with a maximum support of 22.5W 1 Lightning interface * Supports rated input: 5V/2A, with a maximum support of 10W |
|
Buttons |
1 Reset button |
|
Indicator Lights |
1. A 3-digit nixie tube indicates the power level * During charging, the last digit blinks once per second to indicate charging in progress * When the adapter charges the TT-200 and the TT-200 discharges to the mobile phone, the nixie tube displays automatically for 10 seconds and then turns off automatically * If the power is lower than 10%, it will blink for 10 seconds and then turn off 2. 1 bicolor signal light indicates the cellular status * Cellular not activated: off * Cellular activating: green light blinks every 200ms * Cellular activated and able to access the internet: green light stays on * Cellular activated but unable to access the internet: orange light stays on |
|
Antenna |
Built-in professional Wi-Fi and 4G antennas |
|
Operating Temperature and Humidity |
0~40°C, 10%～90% non-condensing |
|
Storage Humidity |
-40~70°C, 5%～95% non-condensing |
|
Dimensions |
160*75*20 mm |
|
Weight |
259g |
|
Battery |
10000mAh |
|
Power Specifications |

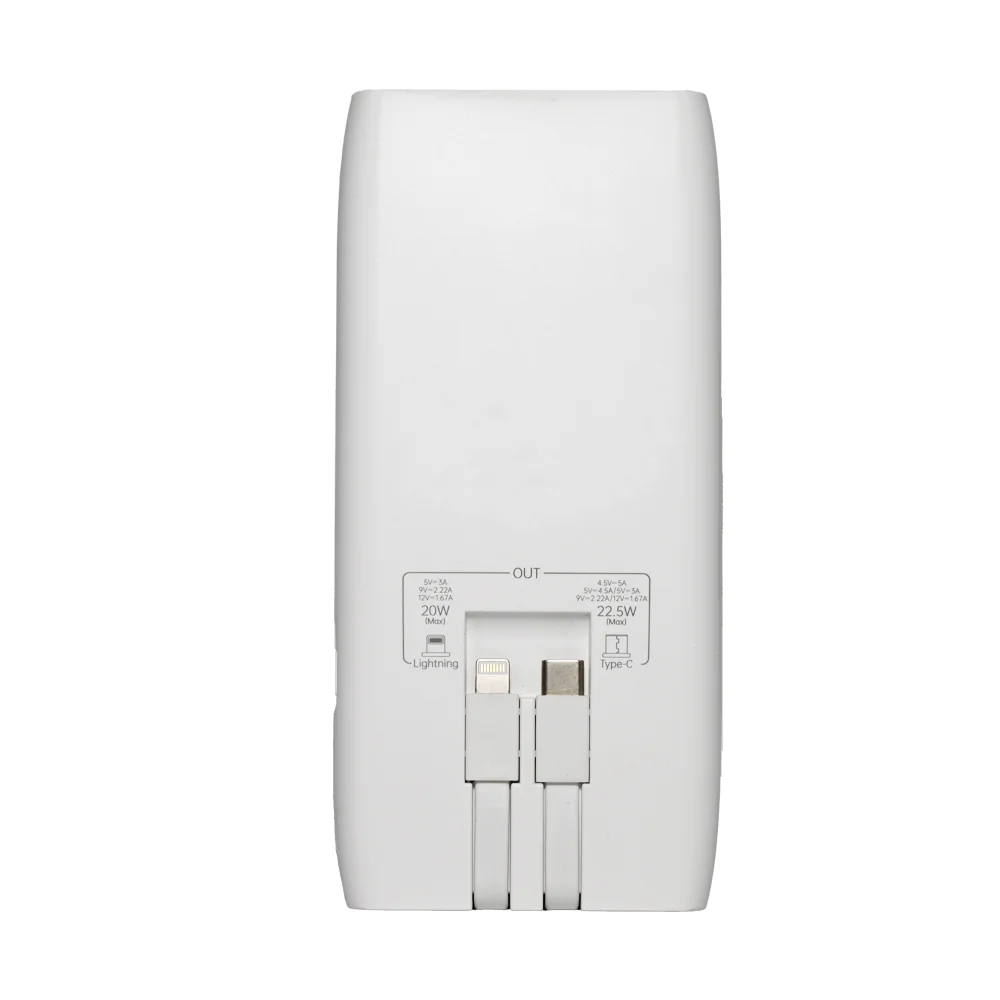

Type-C built-in cable * 4.5V/5A, 5V-4.5A, 5V/3A, 9V/2.22A, 12V/1.67A, maximum support 22.5W Lightning built-in cable * 5V/3A, 9V/2.22A, 12V/1.67A, maximum support 20W Total Output * Type-C interface + Type-C cable + Lightning cable = 5V/3A |
|
Wi-Fi |
||||
Technical Standard |
2.4GHz |
802.11b/g/n |
||
Modulation Methods |
802.11b |
1/2/5.5/11Mbps |
||
802.11g |
6/9/12/18/24/36/48/54Mbps |
|||
802.11n |
MCS0~7 |
|||
2.4GHz |
Maximum Rate |
2.4GHz：150Mbps |
||
Frequency Bands |
2.4GHz： HE20:CH1 to CH13 HE40:CH3 to CH11 |
|||
Wi-Fi Spatial Stream |
1T1R |
|||
Channel Bandwidth |
2.4GHz：20/40MHz |
|||
Maximum Number of Accesses |
8 |
|||
Cellular |
||||
Module |
Module Model |
TM22G |
||
Applicable Region |
Global |
|||
Cellular Frequency Bands |
LTE FDD |
B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B17/B18/B19/B20/B25/B 26/B28AB/B66 |
||
TDD-LTE |
B34/B38/B39/B40/B41 |
|||
WCDMA |
B1 |
|||
GSM/GPRS/EDGE |
B1/B2/B4/B5/B8 |
|||
Cellular Rates |
FDD |
Maximum Uplink Rate: 50Mbps Maximum Downlink Rate: 150Mbps
|
||
TDD |
Maximum Uplink Rate: 35Mbps Maximum Downlink Rate: 130Mbps
|
|||
Q: Are you a manufacturer or a trading company
A: We have been professional antenna manufacturer for 18 years
Q: Have gps gsm combo antenna 100% assembles well in stock
A: No, all gps gsm combo antenna will be newly assembled according to your orders including the samples
Q: Could I use my own LOGO or design on goods
A: Yes, customized logo and design on mass production are available
Q: What's the payment term
A: T/T, AliPay, Paypal, Afterpay, Klarna etc
Q: What certifications do you have
A: Certified by FCC, CE, RoHS, ISO available upon request
Q: Where is your factory located? Can I visit your factory
A: Factory address: 2nd Floor, Building D4-1, Hongfeng Science and Technology Park, Nanjing Economic and Technological Development Zone, Jiangsu Province
Just call us, we will pick you up with no delay
