RF Cable Assemblies Qma Male to SMA Male for LMR240 Cable

RF Cable Assemblies Qma Male to SMA Male for LMR240 Cable

Description

[email protected]

Description

Product Description

The outer conductor of Corrugated Cable Assemblies is constructed of a corrugated tube (spiral or ringed winding). This construction allows perfect shielding and some flexibility while maintaining a large bending radius. The high performance level of these cables enable them to be used in outdoor long length transmission lines.

Product Detail

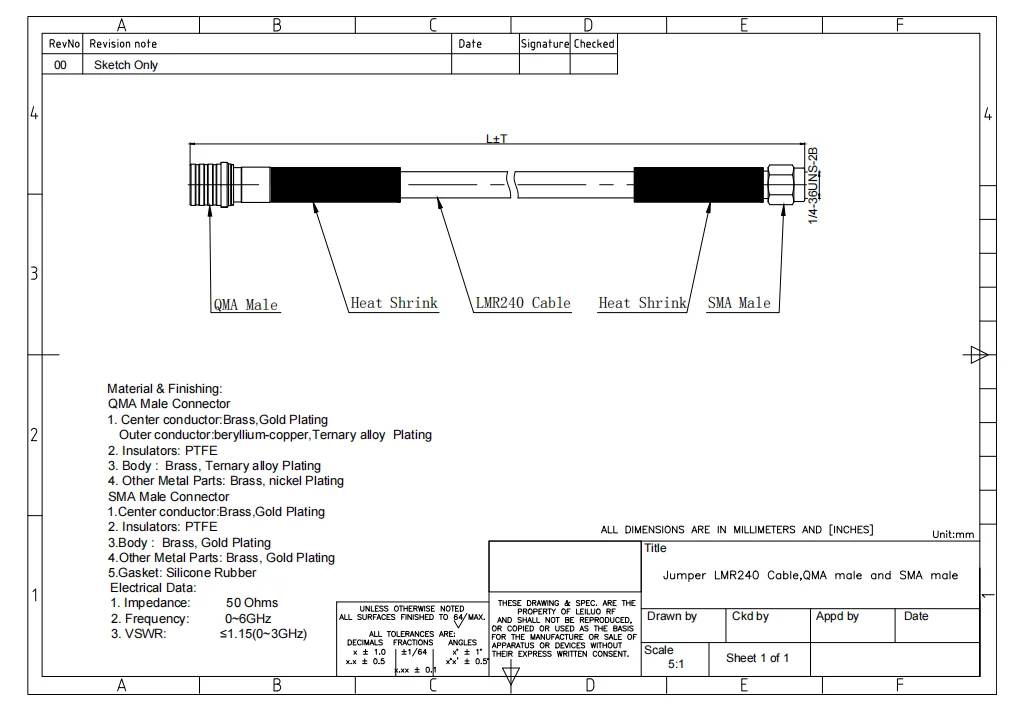

product rf cable assemblies qma male to sma male for lmr240 cable-2

Material & Finishing
QMA Male Connector
Center condutor	Brass, Gold Plating
Outer conductor	beryllium-copper,Ternary alloy Plating
Insulators	PTFE
Body	Brass, Ternary alloy Plating
Other Metal Parts	Brass, nickel Plating
SMA Male Connector
Center conductor	Brass,Gold Plating
Insulators	PTFE
Body	Brass, Gold Plating
Other Metal Parts	Brass, Gold Plating
Gasket	Silicone Rubber
Electrical Data
Impedance	50 Ohms
Frequency	0~6GHz
VSWR	≤1.15 (0-3GHz)

Company Profile

product rf cable assemblies qma male to sma male for lmr240 cable-3

product rf cable assemblies qma male to sma male for lmr240 cable-4

product rf cable assemblies qma male to sma male for lmr240 cable-5

product rf cable assemblies qma male to sma male for lmr240 cable-6

product rf cable assemblies qma male to sma male for lmr240 cable-7

product rf cable assemblies qma male to sma male for lmr240 cable-8

FAQ

Q: Are you a manufacturer or a trading company? A: We have been professional antenna manufacturer for 18 years. Q: Have gps gsm combo antenna 100% assembles well in stock? A: No, all gps gsm combo antenna will be newly assembled according to your orders including the samples. Q: Could I use my own LOGO or design on goods? A: Yes, customized logo and design on mass production are available. Q: What's the payment term? A: T/T, AliPay,Paypal,Afterpay,Klarna etc. Q:What certifications do you have? A:Certified by FCC, CE, RoHS,ISO available upon request. Q: Where is your factory located? Can I visit your factory? A: Factory address: 2nd Floor, Building D4-1, Hongfeng Science and Technology Park, Nanjing Economic and Technological Development Zone, Jiangsu Province. Just call us, we will pick you up with no delay.
