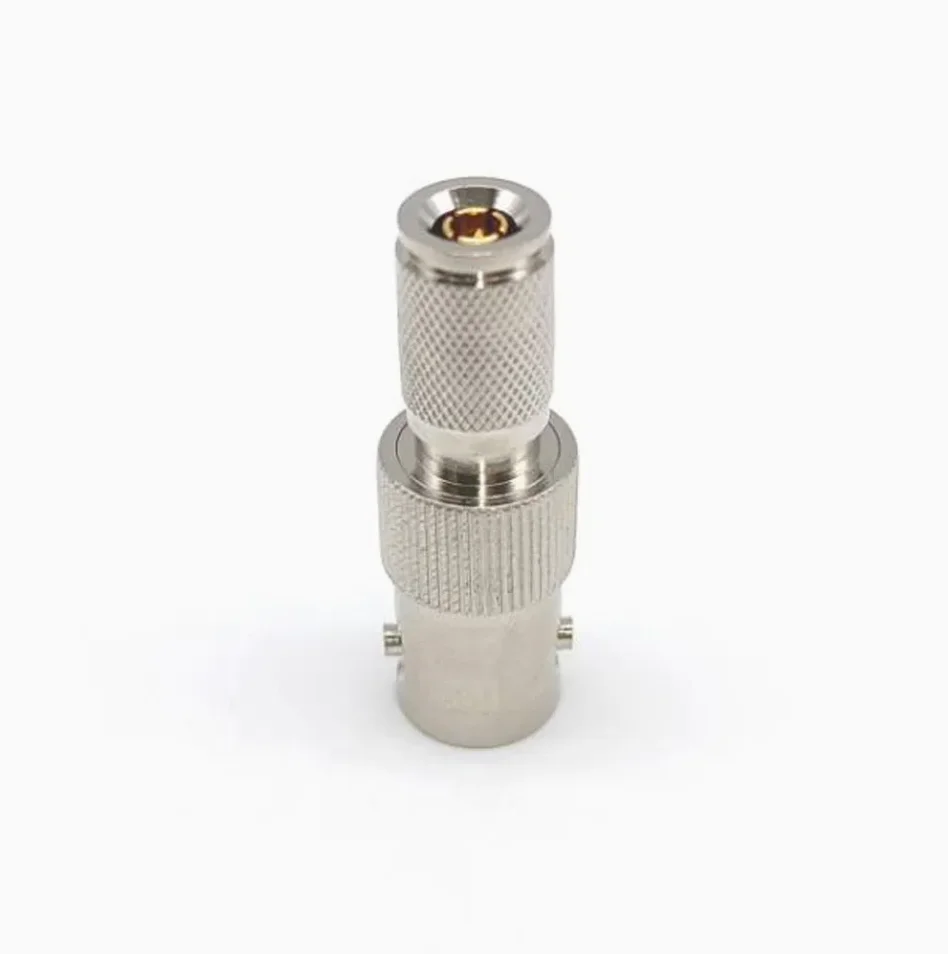

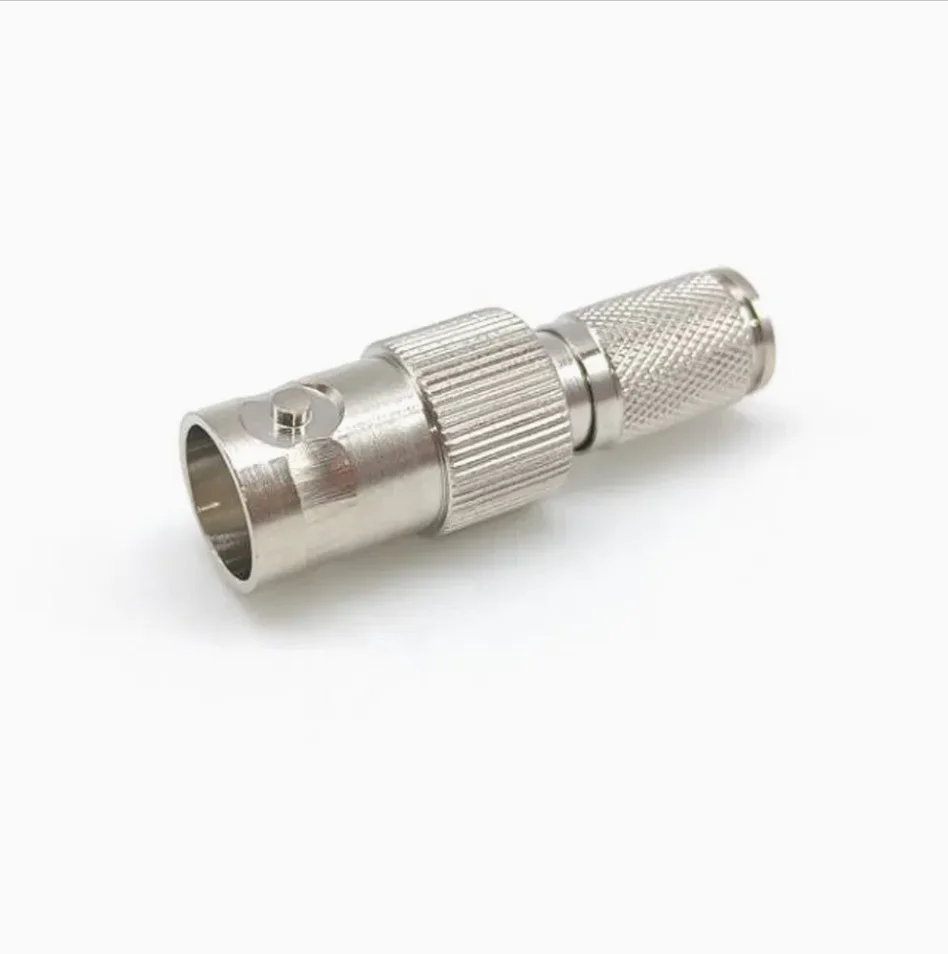

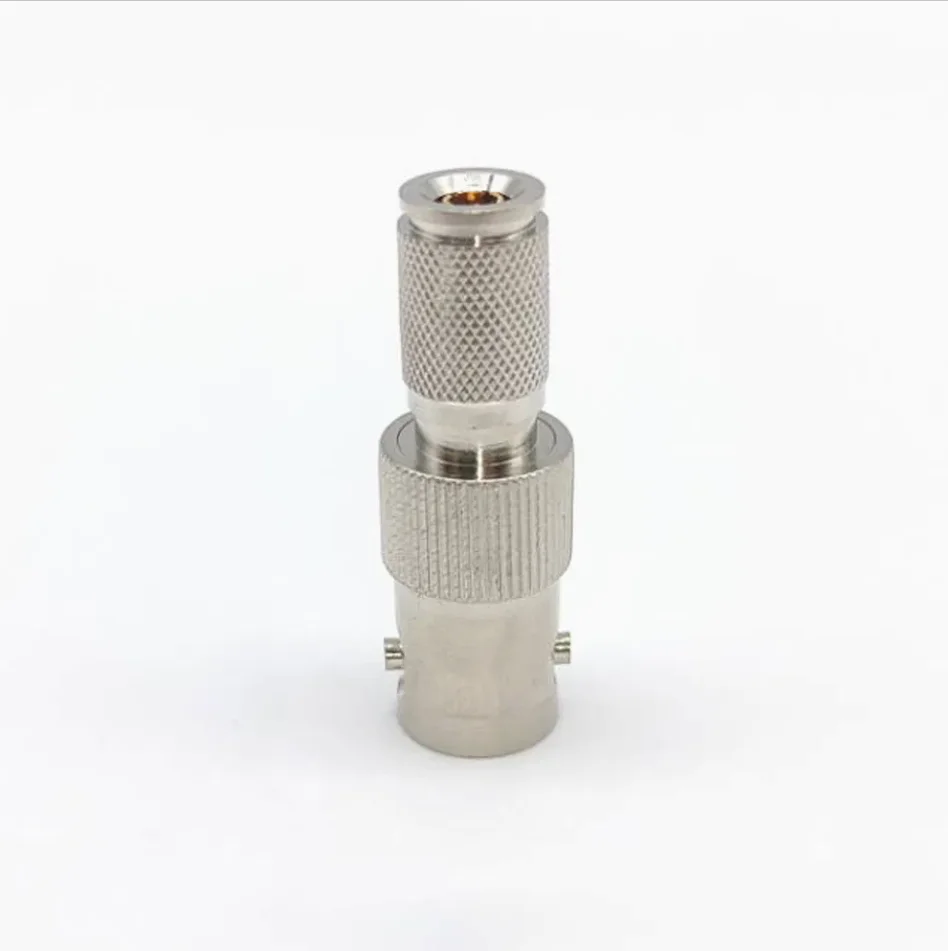

RF Coaxial Connector Adaptor BNC Female to 1.0/2.3 Male

RF Coaxial Connector Adaptor BNC Female to 1.0/2.3 Male

Description

[email protected]

Description

Product Description

The outer conductor of Corrugated Cable Assemblies is constructed of a corrugated tube (spiral or ringed winding). This construction allows perfect shielding and some flexibility while maintaining a large bending radius. The high performance level of these cables enable them to be used in outdoor long length transmission lines.

Product Detail

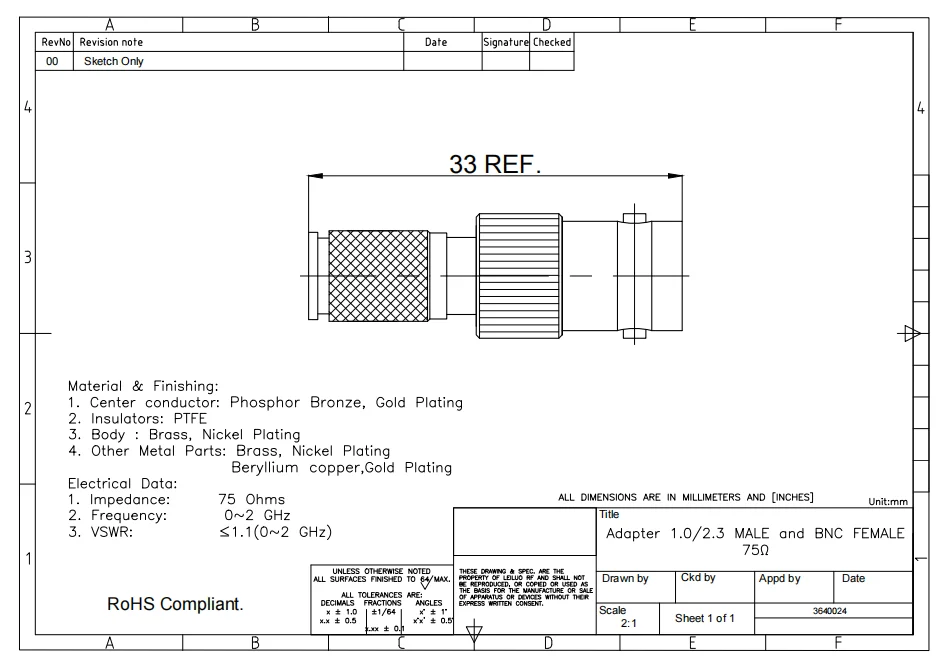

RF Coaxial Connector Adaptor BNC Female to 1.0/2.3 Male factory

Material & Finishing
Center condutor	Phosphor Bronze, Gold Plating
Insulators	PTFE
Body	Brass, Nickel Plating
Other Metal Parts	Brass, Nickel Plating Beryllium copper,Gold Plating
Electrical Data
Impedance	75 Ohms
Frequency	0~2GHz
VSWR	≤1.1(0-2GHz)

Company Profile

RF Coaxial Connector Adaptor BNC Female to 1.0/2.3 Male supplier

RF Coaxial Connector Adaptor BNC Female to 1.0/2.3 Male details

FAQ

Q: Are you a manufacturer or a trading company? A: We have been professional antenna manufacturer for 18 years. Q: Have gps gsm combo antenna 100% assembles well in stock? A: No, all gps gsm combo antenna will be newly assembled according to your orders including the samples. Q: Could I use my own LOGO or design on goods? A: Yes, customized logo and design on mass production are available. Q: What's the payment term? A: T/T, AliPay,Paypal,Afterpay,Klarna etc. Q:What certifications do you have? A:Certified by FCC, CE, RoHS,ISO available upon request. Q: Where is your factory located? Can I visit your factory? A: Factory address: 2nd Floor, Building D4-1, Hongfeng Science and Technology Park, Nanjing Economic and Technological Development Zone, Jiangsu Province. Just call us, we will pick you up with no delay.
