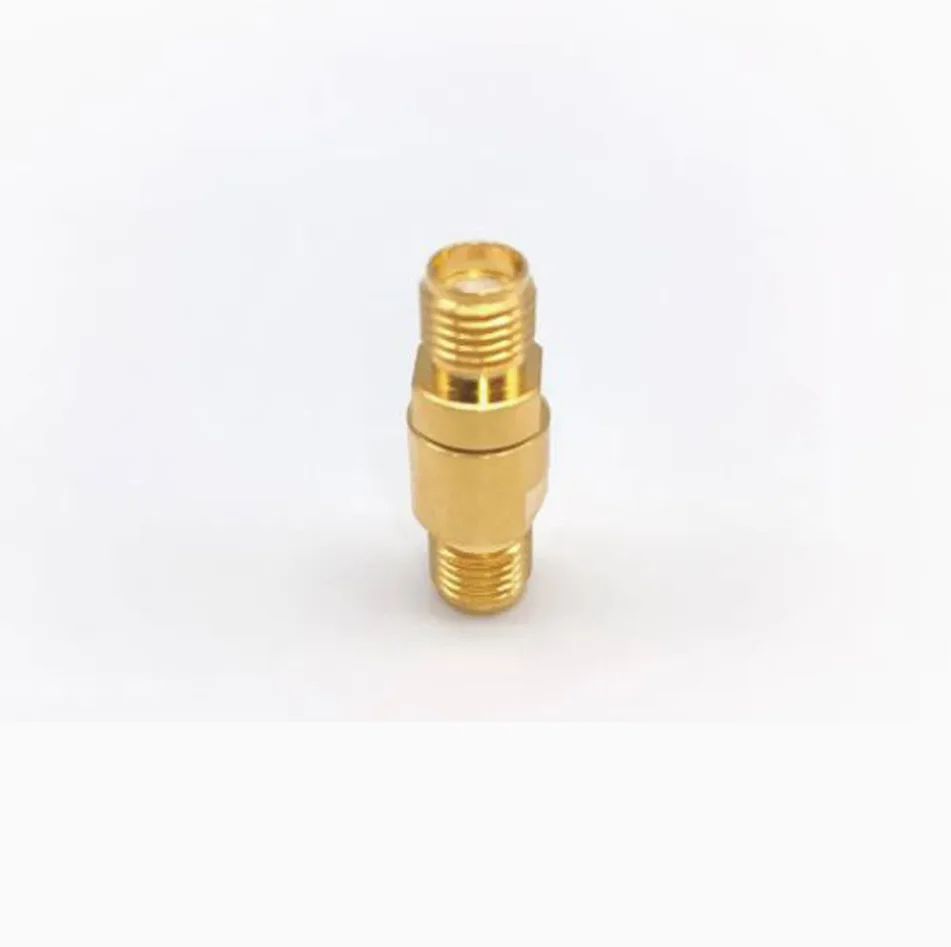

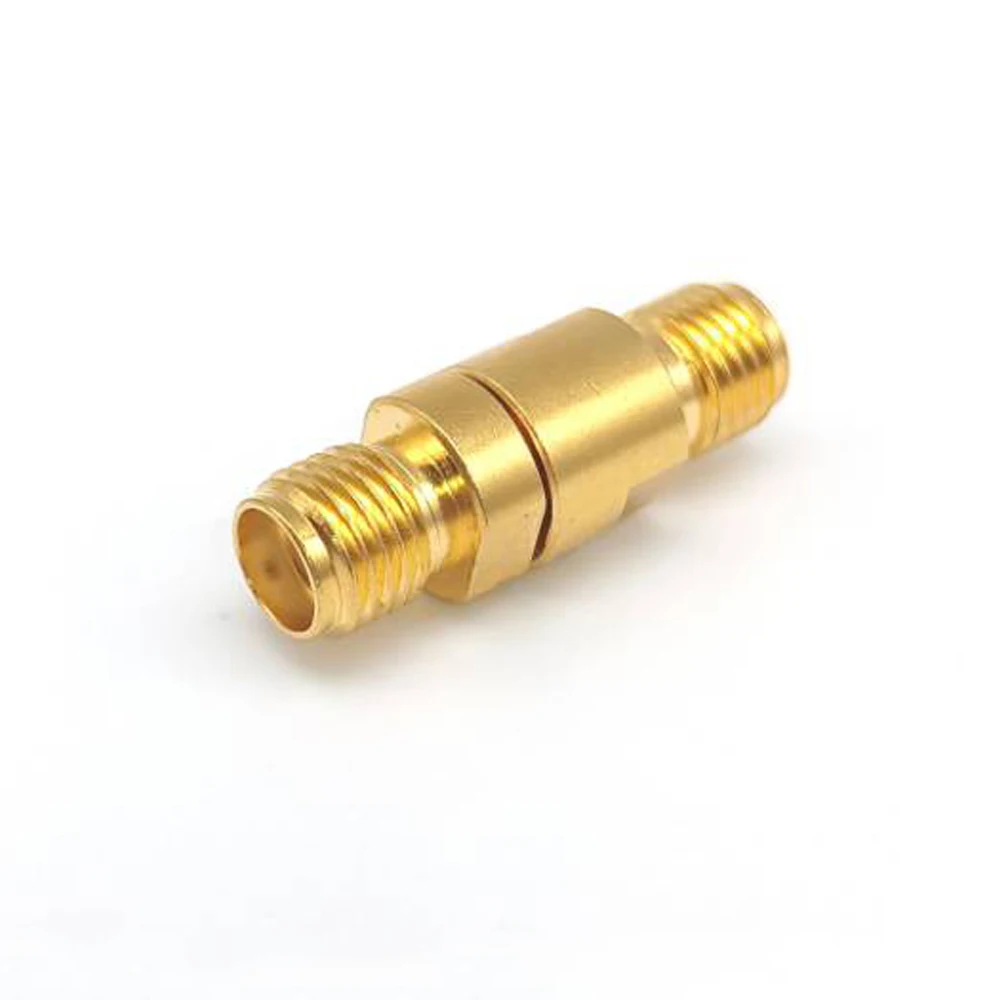

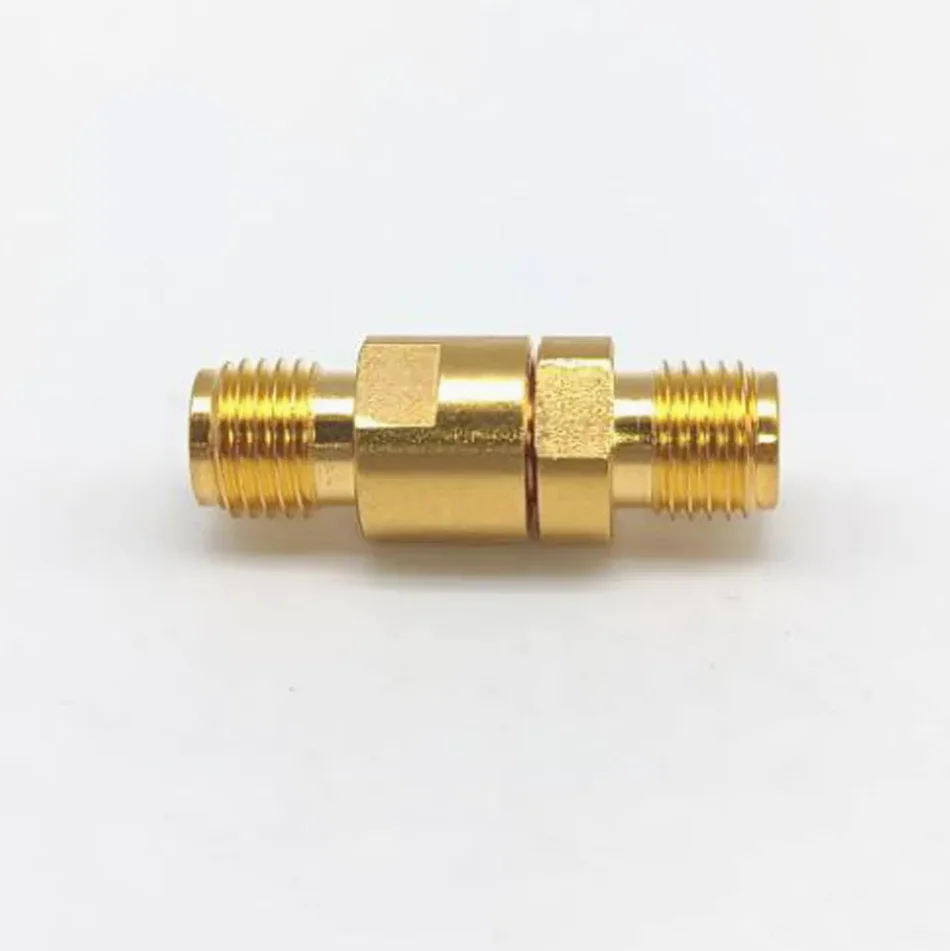

RF Coaxial Connector Adaptor SMA Female to SMA Female
RF Coaxial Connector Adaptor SMA Female to SMA Female
RF Coaxial Connector Adaptor SMA Female to SMA Female
RF Coaxial Connector Adaptor SMA Female to SMA Female
RF Coaxial Connector Adaptor SMA Female to SMA Female
RF Coaxial Connector Adaptor SMA Female to SMA Female
RF Coaxial Connector Adaptor SMA Female to SMA Female
RF Coaxial Connector Adaptor SMA Female to SMA Female
RF Coaxial Connector Adaptor SMA Female to SMA Female
RF Coaxial Connector Adaptor SMA Female to SMA Female

RF Coaxial Connector Adaptor SMA Female to SMA Female

Get a Quote Contact Us
  • Description
product rf coaxial connector adaptor sma female to sma female-1

[email protected]
Inquiry
Product Description
Product Detail

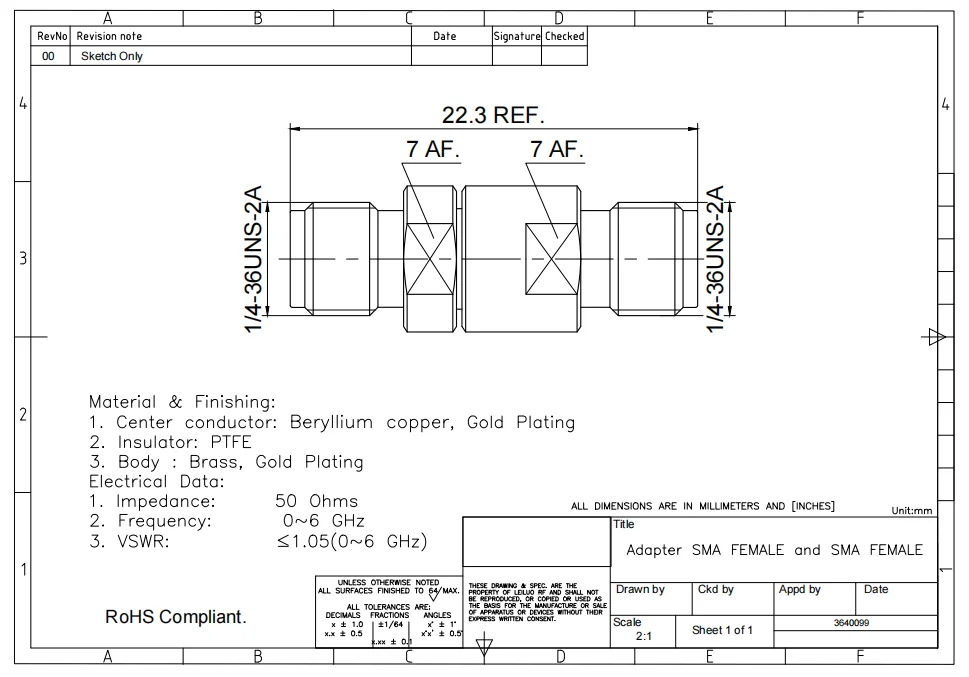

product rf coaxial connector adaptor sma female to sma female-2
Material & Finishing
Center conductor
Beryllium copper, Gold Plating
Insulator
PTFE
Body
Brass, Gold Plating
Electrical Data
Impedance
50 Ohms
Frequency
0~6GHz
VSWR
≤1.05(0~6 GHz)
Company Profile
product rf coaxial connector adaptor sma female to sma female-3
product rf coaxial connector adaptor sma female to sma female-4
product rf coaxial connector adaptor sma female to sma female-5
product rf coaxial connector adaptor sma female to sma female-6
product rf coaxial connector adaptor sma female to sma female-7
product rf coaxial connector adaptor sma female to sma female-8
FAQ
Q: Are you a manufacturer or a trading company? A: We have been professional antenna manufacturer for 18 years. Q: Have gps gsm combo antenna 100% assembles well in stock? A: No, all gps gsm combo antenna will be newly assembled according to your orders including the samples. Q: Could I use my own LOGO or design on goods? A: Yes, customized logo and design on mass production are available. Q: What's the payment term? A: T/T, AliPay,Paypal,Afterpay,Klarna etc. Q:What certifications do you have? A:Certified by FCC, CE, RoHS,ISO available upon request. Q: Where is your factory located? Can I visit your factory? A: Factory address: 2nd Floor, Building D4-1, Hongfeng Science and Technology Park, Nanjing Economic and Technological Development Zone, Jiangsu Province. Just call us, we will pick you up with no delay.
