Electrical Specifications |

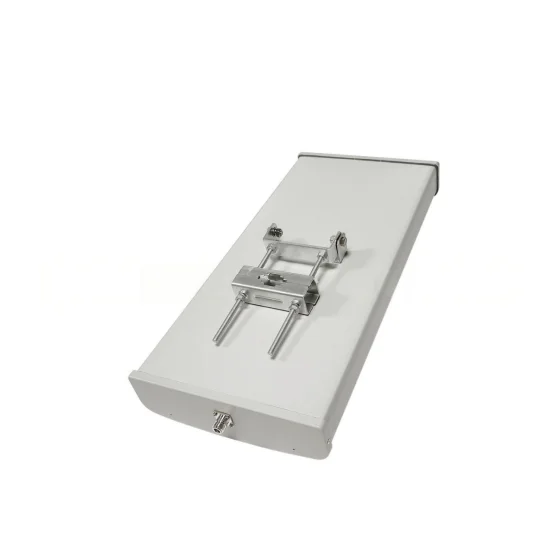

DB2458C - 90V14A |
||
Frequency Range (MHz) |
2400～2500 |
5150～5850 |
|
Polarization |
Vertical |
||
Gain (dBi) |
14 |
15 |
|
Electrical Downtilt (°) |
0 |
||
Half Power Beamwidth (°) |
Horizontal: 88 |
Horizontal: 88 |
|
Vertical: 15 |
Vertical: 7.5 |
||
First Upper Side Lobe Suppression (dB) |
/ |
||
Front - to - Back Ratio (dB) |
≥22 |
||
Input Impedance (Ω) |
50 |
||
VSWR |
≤2 |
||
Maximum Power (W) |
50 |
||
Lightning Protection |
DC Ground |
||
Mechanical & Environmental Specifications |
||
Connector Type |
N Female |
|
Connector Position |
Bottom |
|
Antenna Dimensions (L×W×H: mm) |
450×167×55 |
|
Packaging Dimensions (mm) |
550×220×125 |
|
Antenna Weight (kg) |
2 |
|
Radome Material |
UPVC |
|
Radome Color |
Gray |
|
Mechanical Tilt (°) |
0～15 |
|
Operating Temperature (℃) |
-40～60 |
|
Extreme Wind Speed (m/s) |
60 |
|
Pole Diameter (mm) |
35～75 |
|
Mounting Bracket Model |
MK003 |
|
