Maximum operating voltage（VAC） |
Operating frequency（Hz） |
Hipot test voltage P-N(VDC) 、PN-E(VAC) |
Leakage current |
Minimum insulation resistance |
0~250V |
50HZ/60HZ DC |
1500（P-N，VDC）、1800（PN-E，VAC） |
1.5 MA@250VAC/50HZ |
>100MQ@500VDC |
Part No. |
Connections - Wire |
Current rating @40℃ |
Housing |
Leakage current |

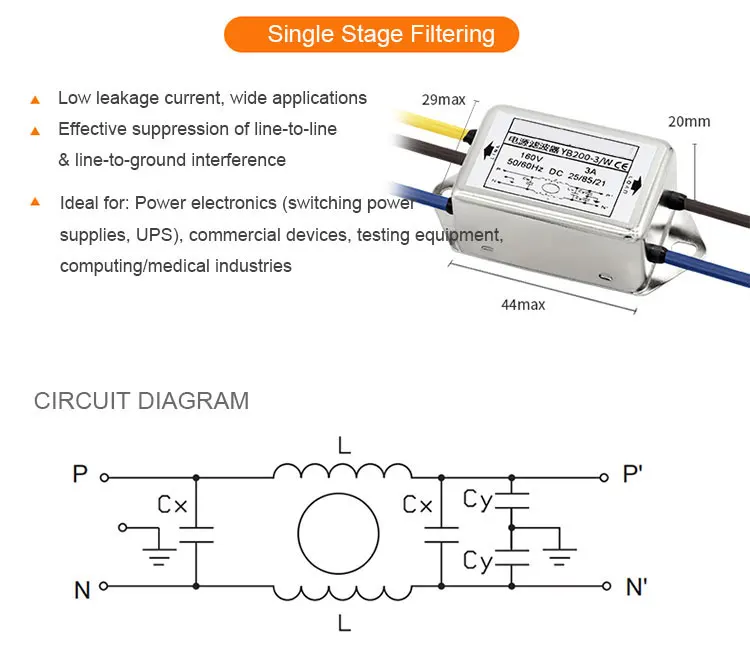

Components - L (mH) |
Components - Cx(μF) |
Components - R(MΩ) |
Components - Cy(nF) |
Weight (g) |

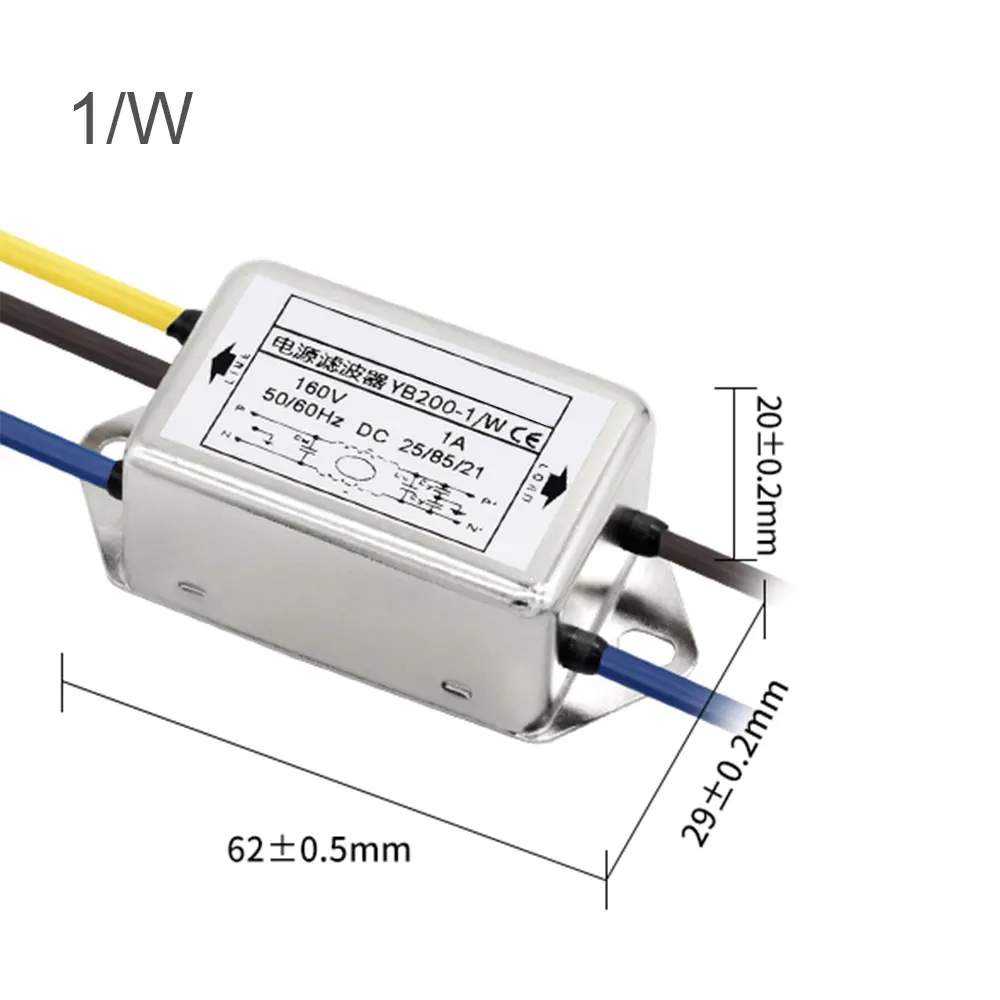

YB200-1/W |
W |
1A |
D1 |
<1.5mA |
5.5 |
0.1 |
-- |
2.2 |
65 |

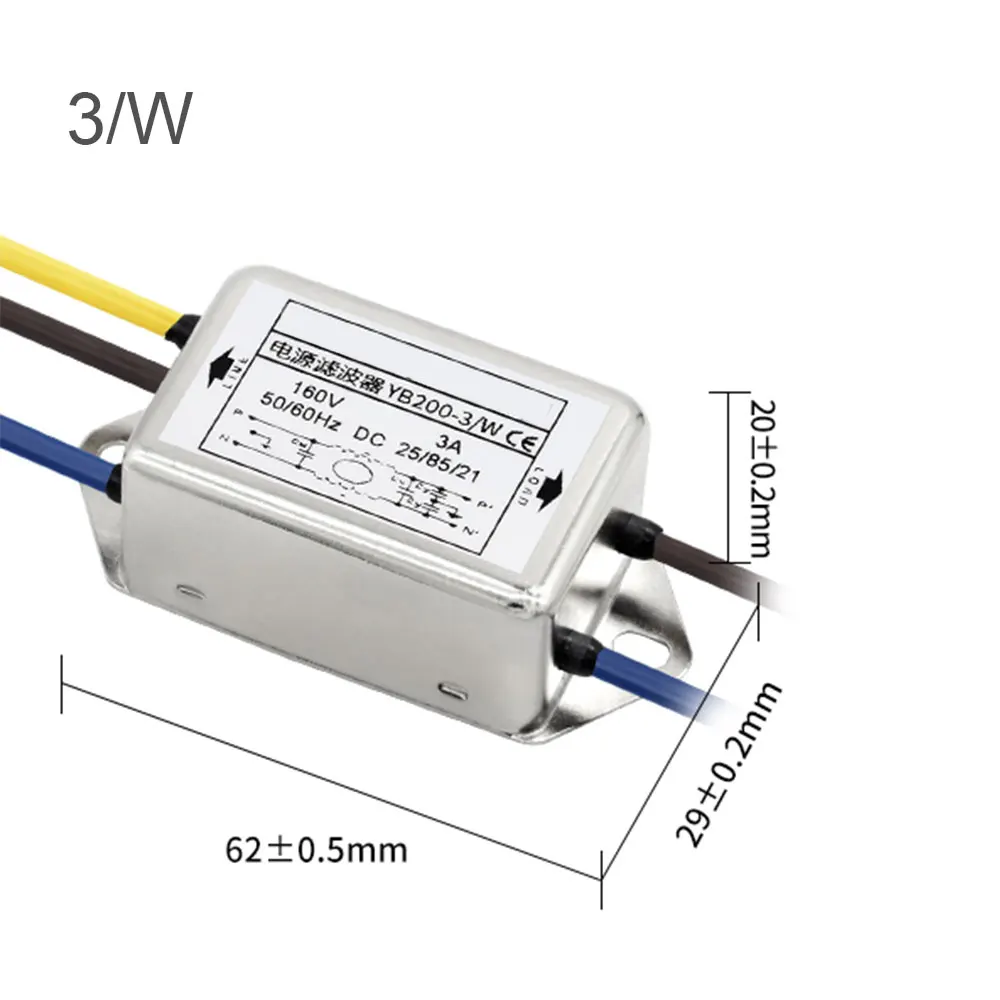

YB200-3/W |
W |
3A |
D1 |
< 1.5mA |
2.5 |
0.1 |
-- |
2.2 |
65 |

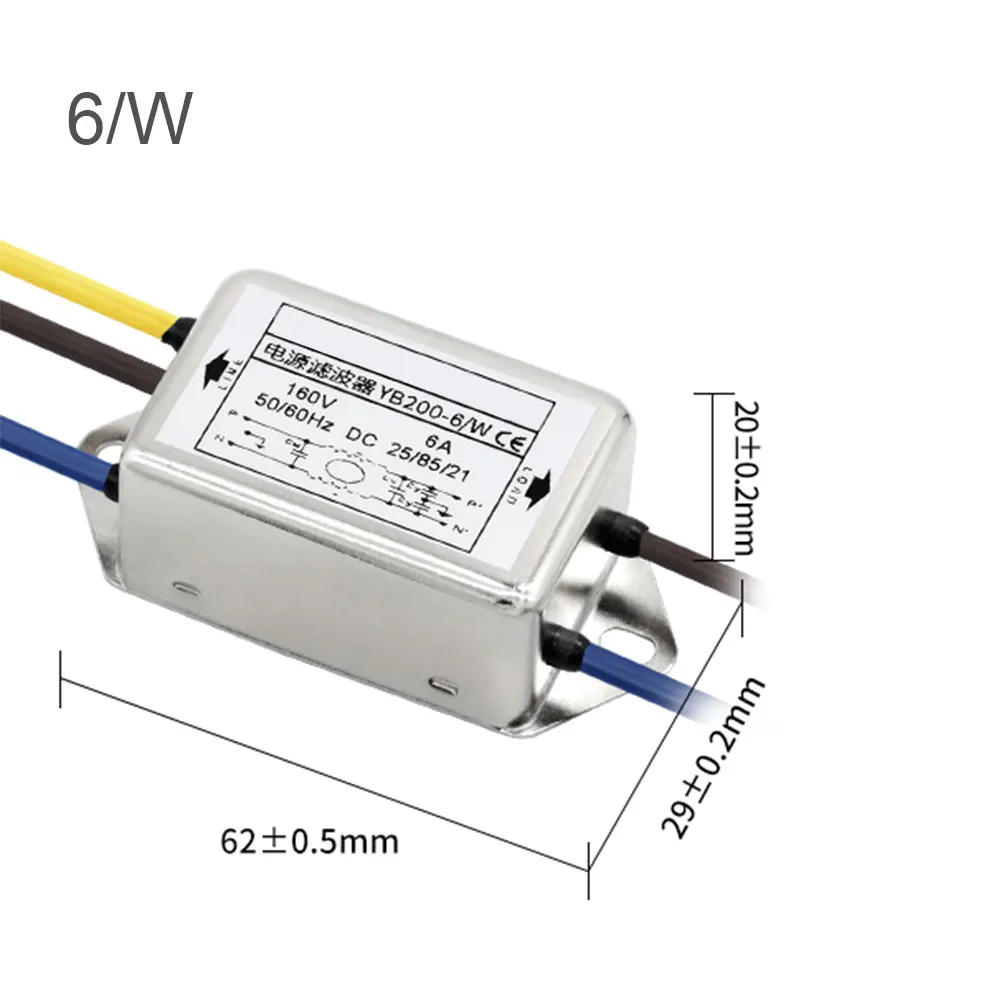

YB200-6/W |
W |
6A |
D1 |
<1.5mA |
1.5 |
0.1 |
-- |
2.2 |
65 |

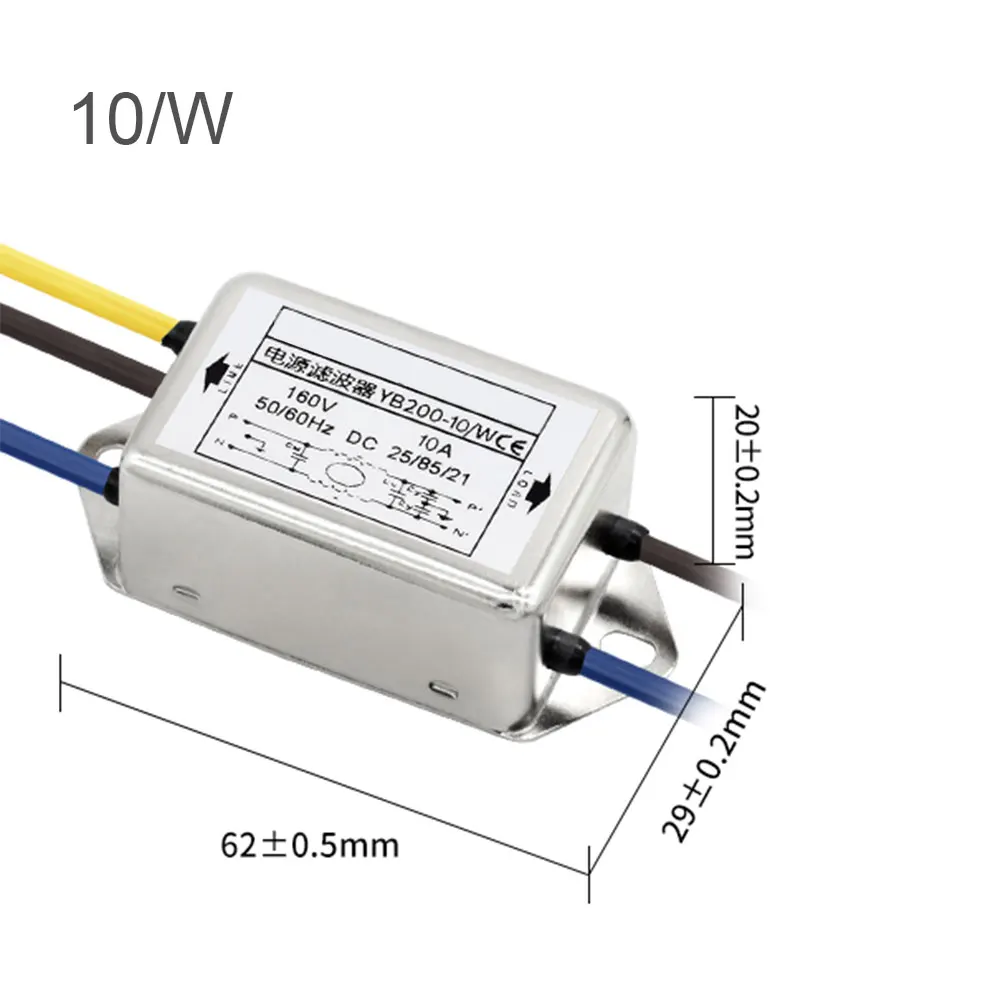

YB200-10/W |
W |
10A |
D1 |
< 1.5mA |
1 |
0.1 |
1 |
2.2 |
65 |
