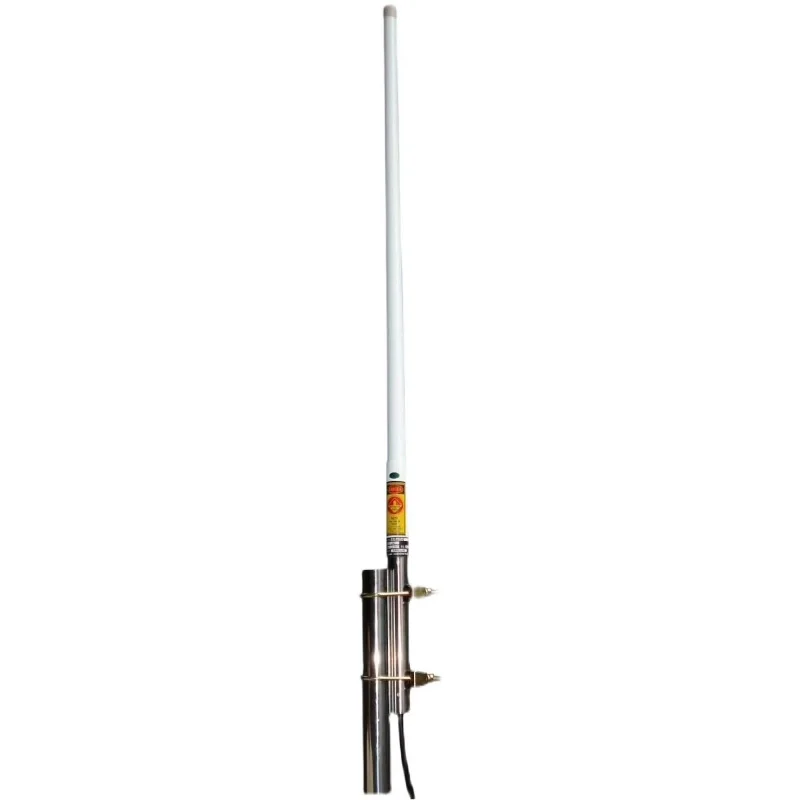

Vertical Polarization 7dBi Gain 376-389MHz Fixed Station Communication Antenna for Emergency Use

Vertical Polarization 7dBi Gain 376-389MHz Fixed Station Communication Antenna for Emergency Use

Description

[email protected]

Description

Product Description

1.Built to Military Standards (GJB367A Certified): Rigorously tested for vibration, salt spray, and extreme temperatures from -40°C to +60°C. Ensures uninterrupted communication in the world's toughest environments.

2.True 360° Omnidirectional Coverage: Delivers consistent signal reception from all directions without the need for precise
alignment. Simplifies installation and guarantees reliable performance across your entire operational area.

3.Professional-Grade Fiberglass Construction: Features a durable FRP radome with military-specified color (Pantone 427C). Withstands 50m/s wind speeds and harsh weather conditions for long-term outdoor deployment.

4.Quick-Deployment Hoop Mounting System: Includes all necessary hardware for fast installation on standard poles. Get your communication station operational within minutes, not hours.

5.High-Power 100W Capacity: Supports extended-range communications with clean signal quality. Ideal for base station applications where reliable, long-distance connectivity is critical.

Product Detail

Electrical Specifications
Frequency (MHz)	376-389
Polarization	Vertical
Gain (dBi)	≥7
Voltage Standing Wave Ratio (VSWR)	≤1.5
Horizontal 3dB Beamwidth (°)	360°
Vertical 3dB Beamwidth (°)	≥15°
Maximum Input Power (W)	100
Electrical Downtilt (°)	0±2
Input Impedance (Ω)	50
Lightning Protection	DC
Mechanical Specifications
Connector Type	N-K
Antenna Dimensions (mm)	Φ38×3200±10 (See schematic diagram for details)
Antenna Weight (kg)	≤6
Maximum Wind Speed (m/s)	50
Radome Material	Fiberglass Reinforced Plastic (FRP)
Radome Color	Pantone 427C
Installation Method	Hoop Fixing
Packaging Method	Single Antenna in Wooden Case
Environmental Specifications
Operating Temperature (℃)	-40~+60
Storage Temperature (℃)	-45~+70
Vibration	GJB367A-2001 3.10.3.1
Salt Spray	GJB367A-2001 3.10.2.14
Damp Heat	GJB367A-2001 3.10.2.5
Rain Test	GJB367A-2001 3.10.2.7
Atmospheric Pressure	GJB367A-2001 3.10.2.3
