RJ45 port |
4 * 10/100/1000Base-T (automatic detection) Full/Half Duplex MDI/MDI-X (Adaptive) Transmission distance: ≤ 100 meters |
|
Optical port characteristics |
2* 1000Base-X Multimode: 850nm (transmission distance 0~550M), 50μm/125μm&62.5μm/125μm Single mode: 1310nm (transmission distance 3~40KM), 1550nm (transmission distance 0~120KM), 9.5μm/125μm |
|
Network Protocol |
IEEE802.3 - CSMA/CD； IEEE802.3i - 10Base-T； IEEE802.3u - 100Base-TX/FX； IEEE802.3x - Flow Control; IEEE802.3z - 1000Base-X； IEEE802.3ab - 1000Base-T； |
|
Work Environment |
Working temperature: -40~85 ℃ (-40~185 ° F) Storage temperature: -40~85 ℃ (-40~185 ° F) Relative humidity: 5% to 95% (no condensation) |
|
Power Interface |

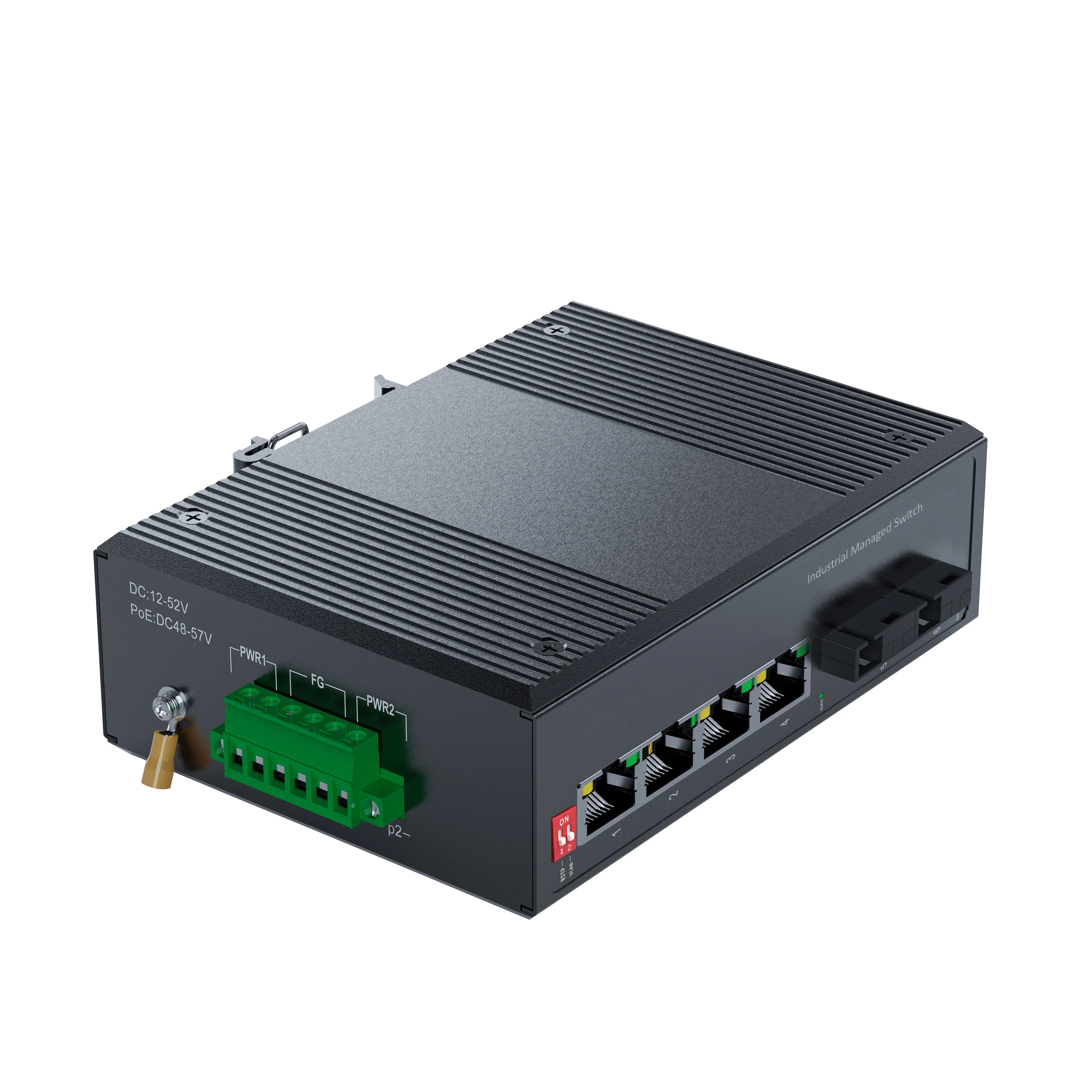

Input voltage: DC12-52V (non-PoE) Connection terminal: 6-core 5.08mm spacing wiring terminal Support dual power redundancy Support reverse protection |
|
Switch Properties |
Application level: Level 2 Backplane bandwidth: 12Gbps Complete package forwarding rate:8.928Mpps MAC table: 8K Package buffer: 2M Delay time:<3 μ s Exchange method: store forward Power consumption of the whole machine:<6W (non PoE) |
|
Mechanical Properties |

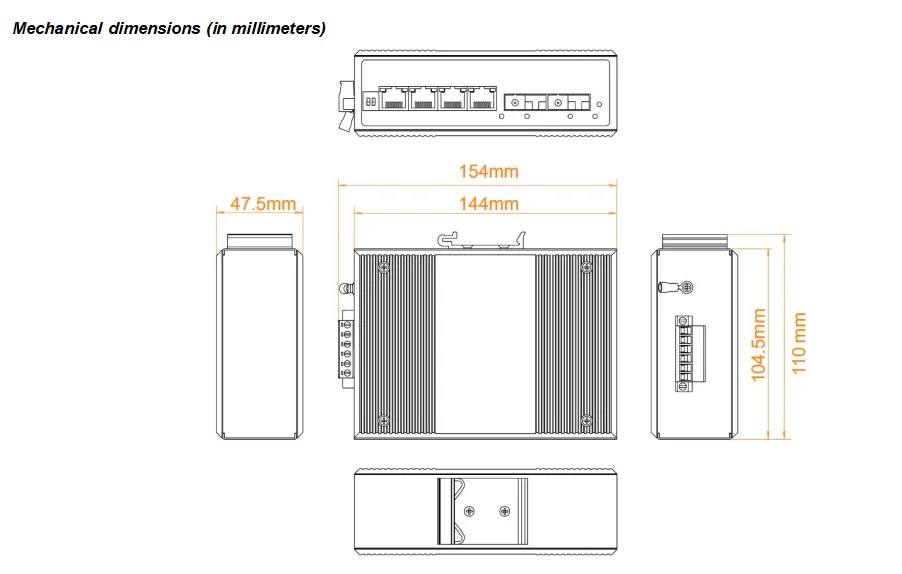

Shell: IP40 protection level, aluminum alloy metal shell Installation: DIN rail type, wall mounted installation Heat dissipation method: natural cooling, fanless Machine weight: 0.55Kg Whole machine including packaging weight: 0.65kg Product size: 144* 104.5* 47.5mm （L* W *H） |
|
LED Indicators |
Power indicator light: PWR (red light) Light port indicator light: 5-6 (green light) Network port indicator light: yellow light (Link/ACT) green light (PoE)） System status indicator: Status |
|
Authentication |
CE, FCC, RoHS, ISO9001, Ministry of Public Security inspection report, telecom grade network access license, Vettel testing report |
|
MTBF |
300000 hours |
|
Warranty |
5 years |
|
Industry standards |
EMI: FCC Part 15 Subpart B Class A，EN 55022 Class A EMS : IEC(EN)61000-4-2(ESD): ±8kV(contact), ±15kV(air) IEC(EN)61000-4-3(RS): 10V/m(80～1000MHz) IEC(EN)61000-4-4(EFT):PowerPort:±4kV; Data Port: ±2kV IEC(EN)61000-4-5(Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6(CS): 10V(150kHz～80MHz) IEC(EN)61000-4-16(CM EMI) : 30V cont. 300V,1s IEC 60068-2-27 (Shock) IEC 60068-2-32 (Freefall) IEC 60068-2-6 (Vibration) |
|
Software Parameters |
||
Network topology |
Supports Ring topology Supports Star topology Supports Bus topology Supports Tree topology Supports Hybrid topology |
|
PoE support(Optional) |
Supports PoE Management |
|
Dial function |
1：RSTP 2：VLAN |
|
Layer 2 switching |
Supported MDI/MDIX VLAN support and quantity (VLAN) 32 Ethernet channel / link aggregation (Ethernet channel), only supports static Supported Interface speed Supported Duplex mode Supported Flow control Jumbo frame ,Supported 9K bytes Supported DHCP client Supported Port statistics Supported EEE Supported Loop check/loop prevention Supported STP/RSTP Supported STP Port Fast Supported IGMP Snooping Supported Restore factory settings Supported Remote restart device |
|
Aggregation Services |
QOS Support egress queue speed limit |
|
Management Features |
Support User Management Support Firmware Upgrade Support Configuration File Download/Upload Support WEB Management |
|
Safety |
Support Protected Ports Support storm control |
|
Equipment Diagnosis |
Port mirroring supports 1:1 |
|
