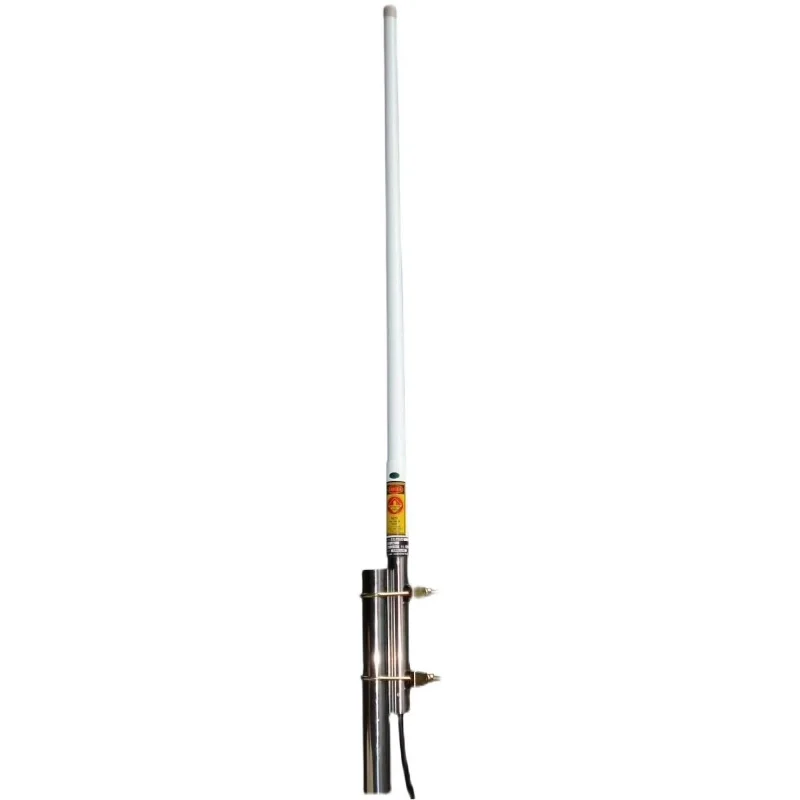

White FRP Radome 7.5dBi Gain 457-467MHz Professional UHF Omnidirectional Antenna

White FRP Radome 7.5dBi Gain 457-467MHz Professional UHF Omnidirectional Antenna

Description

[email protected]

Description

Product Description

1.Rugged Military Specification (GJB367A) Certification: Tested to withstand extreme conditions including salt spray, heavy rain, and temperature extremes from -40℃ to +60℃. Built for mission-critical applications where failure is not an option.

2.Precision 16° Vertical Beamwidth: Uniquely combines omnidirectional horizontal coverage with focused vertical signal
concentration. Delivers superior long-range performance compared to standard omnidirectional antennas while maintaining 360° coverage.

3.High-Power 200W Capacity: Supports extended-range communications with exceptional clarity. Ideal for base station applications requiring reliable, long-distance connectivity and superior signal penetration.

4.All-Weather Fiberglass Construction: Features a durable FRP radome in professional white finish. Withstands 50m/s winds and harsh environmental conditions while maintaining optimal electrical performance year after year.

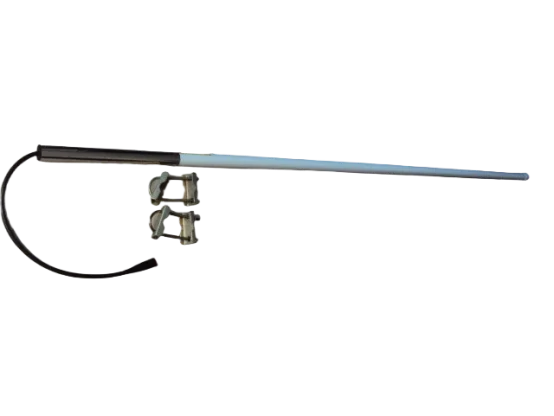

5.Quick Hoop-Mount Installation: Designed for rapid deployment on standard mounting structures. Includes all necessary hardware for fast, secure installation - get your communication system operational in minimal time.

Product Detail

Electrical Specifications
Frequency (MHz)	457-467
Polarization	Vertical
Gain (dBi)	7.5
Half-Power Beamwidth	H: 360°; E: 16° (H=Horizontal, E=Elevation/Vertical)
Voltage Standing Wave Ratio (VSWR)	≤1.5
Maximum Power (W)	200
Input Impedance (Ω)	50
Lightning Protection	DC
Mechanical Specifications
Connector Type	N-K
Antenna Dimensions (mm)	Φ45×1800
Antenna Weight (kg)	≤2.5
Maximum Wind Speed (m/s)	50
Radome Material	Fiberglass Reinforced Plastic (FRP)
Radome Color	White
Installation Method	Hoop Fixing
Environmental Specifications
Operating Temperature (℃)	-40~+60
Storage Temperature (℃)	-45~+70
Vibration	GJB367A-2001 3.10.3.1
Salt Spray	GJB367A-2001 3.10.2.14
Damp Heat	GJB367A-2001 3.10.2.5
Rain Test	GJB367A-2001 3.10.2.7
Atmospheric Pressure	GJB367A-2001 3.10.2.3
