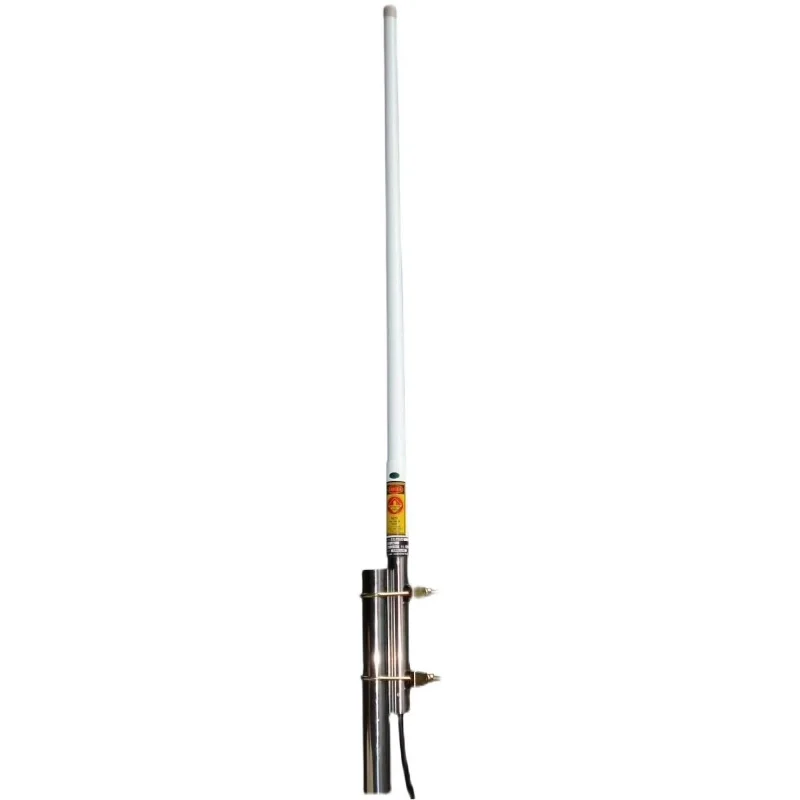

White N-K Connector 200W Power 6dBi Gain 351-366MHz UHF Omnidirectional Antenna

White N-K Connector 200W Power 6dBi Gain 351-366MHz UHF Omnidirectional Antenna

Description

[email protected]

Description

Product Description

1.Military Standard GJB367A Certified: Rigorously tested to withstand extreme conditions including salt spray, heavy rain,
vibration, and temperature extremes from -40℃ to +60℃. Built for mission-critical applications where reliability is paramount.

2Enhanced 25° Vertical Beamwidth: Combines true 360° horizontal coverage with optimized vertical signal distribution. Provides superior ground coverage and longer communication range compared to standard omnidirectional antennas.

3.High-Power 200W Capacity: Supports extended-range communications with exceptional signal clarity. Ideal for base station applications requiring reliable, long-distance connectivity in challenging environments.

4.Durable Fiberglass Construction: Features rugged FRP radome in professional white finish. Withstands 50m/s winds and harsh environmental conditions while maintaining stable electrical performance over years of service.

5.Quick Hoop-Mount Installation: Designed for easy deployment on standard mounting structures. Simplified installation process reduces setup time and maintenance costs, ensuring rapid deployment when needed most.

Product Detail

Electrical Specifications
Frequency (MHz)	351-366
Polarization	Vertical
Gain (dBi)	6
Half-Power Beamwidth	H: 360°; E: 25° (H=Horizontal, E=Elevation/Vertical)
Voltage Standing Wave Ratio (VSWR)	≤1.5
Maximum Power (W)	200
Input Impedance (Ω)	50
Lightning Protection	DC
Mechanical Specifications
Connector Type	N-K
Antenna Dimensions (mm)	Φ45×1800
Antenna Weight (kg)	≤2.5
Maximum Wind Speed (m/s)	50
Radome Material	Fiberglass Reinforced Plastic (FRP)
Radome Color	White
Installation Method	Hoop Fixing
Environmental Specifications
Operating Temperature (℃)	-40~+60
Storage Temperature (℃)	-45~+70
Vibration	GJB367A-2001 3.10.3.1
Salt Spray	GJB367A-2001 3.10.2.14
Damp Heat	GJB367A-2001 3.10.2.5
Rain Test	GJB367A-2001 3.10.2.7
Atmospheric Pressure	GJB367A-2001 3.10.2.3
