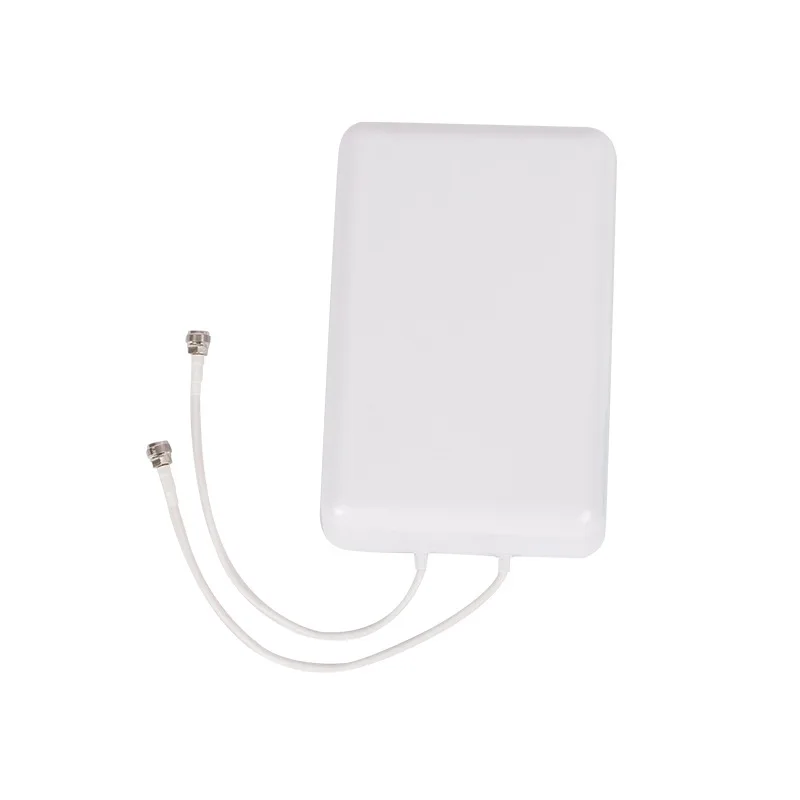

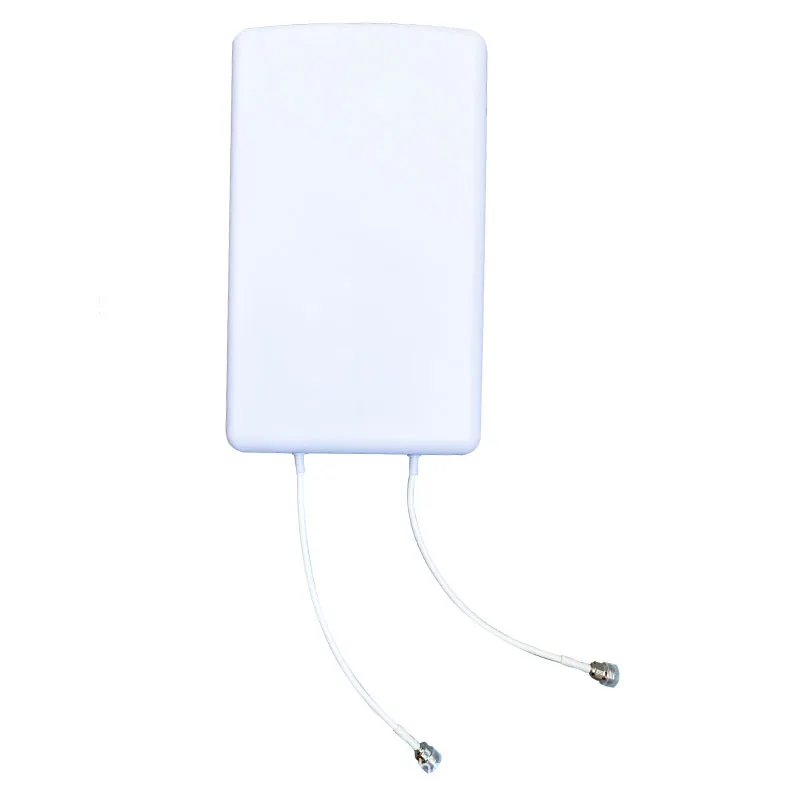

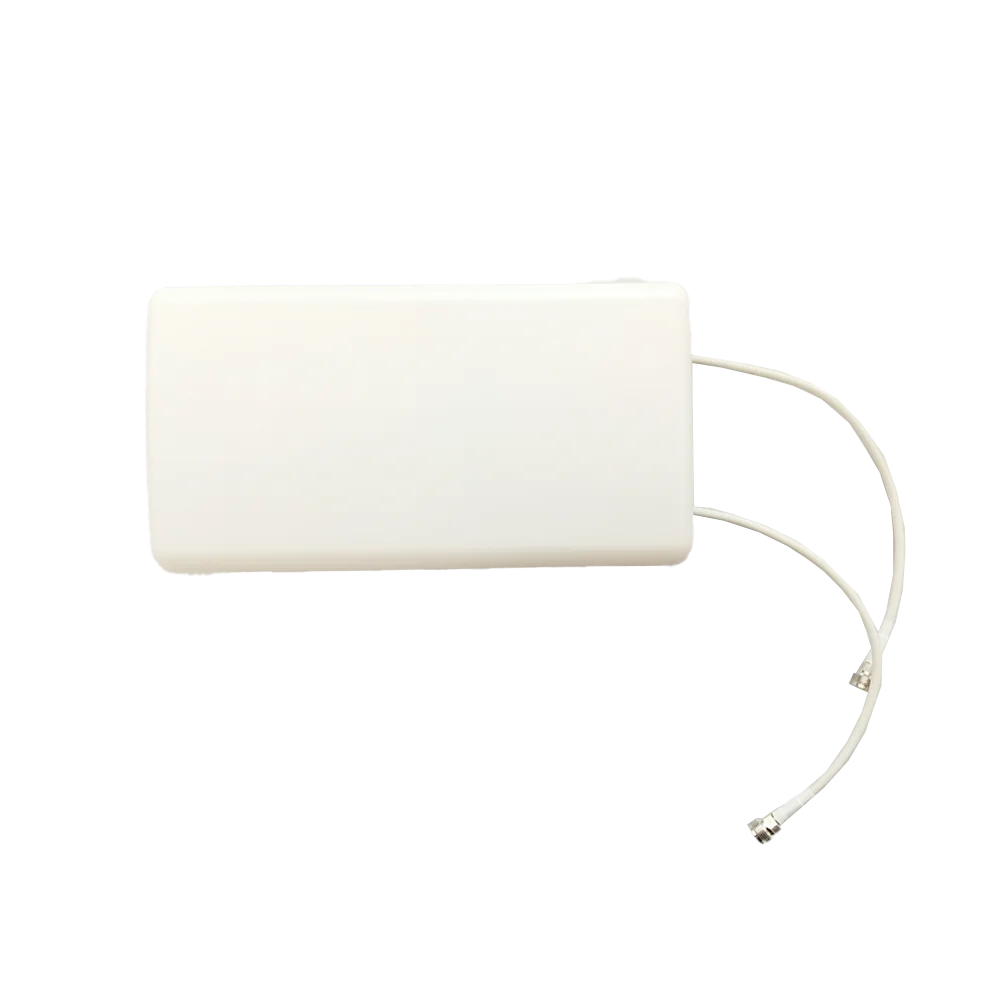

YW-1217B 4G LTE 806-3700 MHz High Gain Dual Polarized Directional Wall Mount Antenna
YW-1217B 4G LTE 806-3700 MHz High Gain Dual Polarized Directional Wall Mount Antenna
YW-1217B 4G LTE 806-3700 MHz High Gain Dual Polarized Directional Wall Mount Antenna
YW-1217B 4G LTE 806-3700 MHz High Gain Dual Polarized Directional Wall Mount Antenna
YW-1217B 4G LTE 806-3700 MHz High Gain Dual Polarized Directional Wall Mount Antenna
YW-1217B 4G LTE 806-3700 MHz High Gain Dual Polarized Directional Wall Mount Antenna
YW-1217B 4G LTE 806-3700 MHz High Gain Dual Polarized Directional Wall Mount Antenna
YW-1217B 4G LTE 806-3700 MHz High Gain Dual Polarized Directional Wall Mount Antenna
YW-1217B 4G LTE 806-3700 MHz High Gain Dual Polarized Directional Wall Mount Antenna
YW-1217B 4G LTE 806-3700 MHz High Gain Dual Polarized Directional Wall Mount Antenna
YW-1217B 4G LTE 806-3700 MHz High Gain Dual Polarized Directional Wall Mount Antenna
YW-1217B 4G LTE 806-3700 MHz High Gain Dual Polarized Directional Wall Mount Antenna

YW-1217B 4G LTE 806-3700 MHz High Gain Dual Polarized Directional Wall Mount Antenna

Get a Quote Contact Us
  • Description
product yw 1217b 4g lte 806 3700 mhz high gain dual polarized directional wall mount antenna-1

[email protected]
Inquiry
Product Description
product yw 1217b 4g lte 806 3700 mhz high gain dual polarized directional wall mount antenna-2

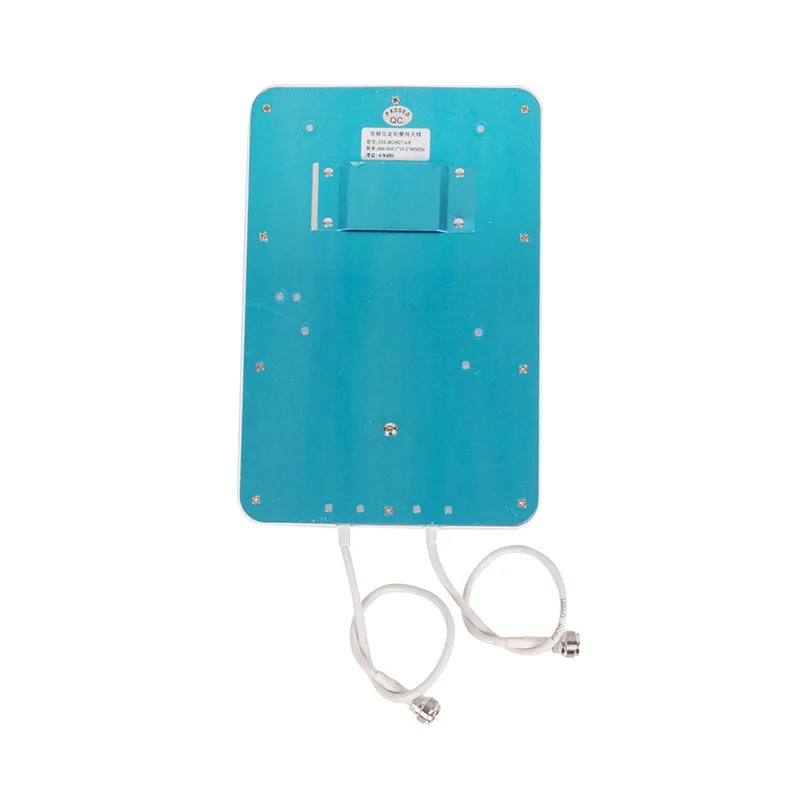

product yw 1217b 4g lte 806 3700 mhz high gain dual polarized directional wall mount antenna-3
Product Detail
Product Name
Dual Polarized Directional Wall Mount Antenna
Electrical Performance
Parameter 1
Parameter 2
Parameter 3
Operating Frequency Band (MHz)
806-960
1710-2500
3300-3700
Polarization Mode
±45°
±45°
±45°
Gain (dBi)
≥5.0
≥7.0
≥7.0
Horizontal Plane Half - Power Beamwidth (°)
90±15
75±20
55±20
Vertical Plane Half - Power Beamwidth (°)
85
65
55
Cross - Polarization Ratio (Axial dB)
≥8
≥10
≥10
Front - to - Back Ratio (dB)
≥8
≥10
≥10
Isolation (dB)
≥20
≥20
≥20
Voltage Standing Wave Ratio
≤1.5
≤1.5
≤1.5
Third - Order Intermodulation (dBm)
≤-107 (Input power 2×33dBm)
≤-107 (Input power 2×33dBm)
≤-107 (Input power 2×33dBm)
Average Power Tolerance (W)
50
50
50
Mechanical Performance
Mechanical Performance
Specification
Antenna Housing Material
ABS/PS
Connector Type
N - type Female
Connector Lead Length (mm)
≥200
Antenna Size (mm)
275*148*59
Packaging Size (mm)
312*155*70
Antenna Weight (kg)
0.3
Operating Temperature (℃)
-30~+45
Storage Temperature (℃)
-40~+55
