Product Name |

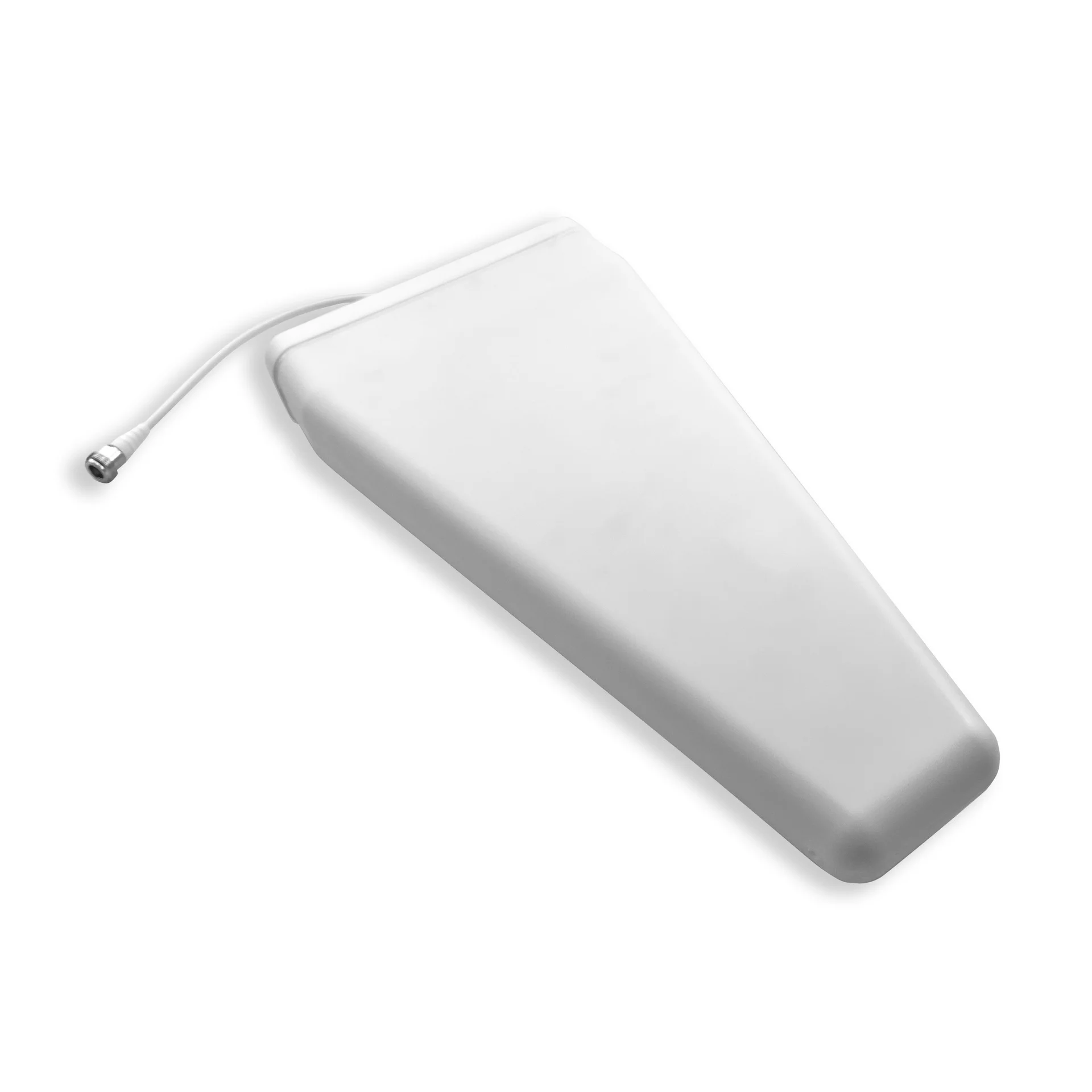

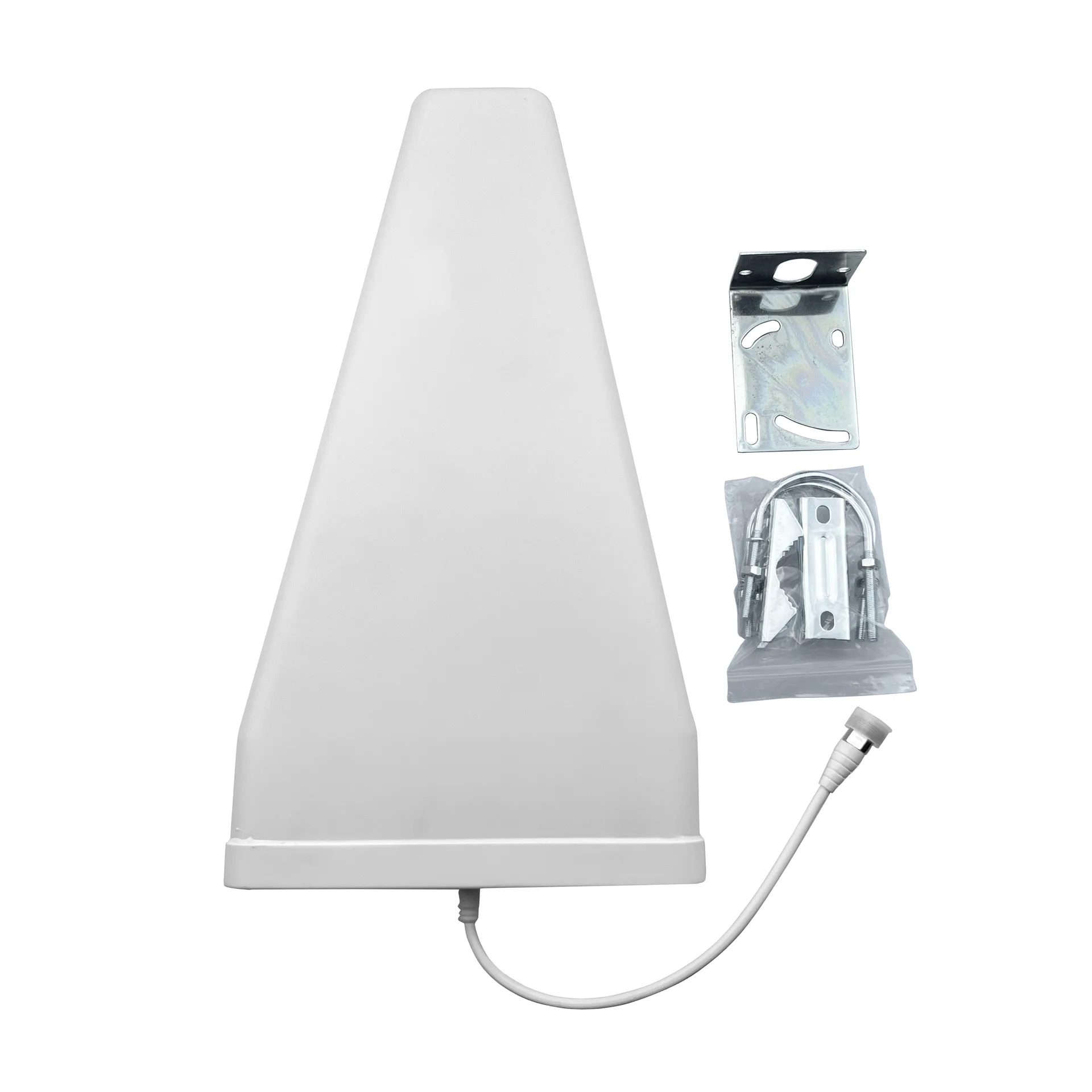

Single-Polarized Directional Log-Periodic Antenna |
|||||
Electrical Performance |
Parameter 1 |
Parameter 2 |
Parameter 3 |
|||
Operating Frequency Band (MHz) |
806-960 |
1710-2500 |
3300-3700 |
|||
Polarization Mode |
V |
V |
V |
|||
Gain (dBi) |
≥8.0 |
≥8.5 |
≥8.5 |
|||
Horizontal Plane Half - Power Beamwidth (°) |
90±15 |
75±20 |
75±20 |
|||
Vertical Plane Half - Power Beamwidth (°) |
75 |
60 |
60 |
|||
Front - to - Back Ratio (dB) |
≥12 |
≥15 |
≥12 |
|||
Voltage Standing Wave Ratio |
≤1.5 |
≤1.5 |
≤1.5 |
|||
Third - Order Intermodulation (dBm) |
≤-107 (Input power 2×33dBm) |
≤-107 (Input power 2×33dBm) |
≤-107 (Input power 2×33dBm) |
|||
Average Power Tolerance (W) |
50 |
50 |
50 |
|||
Mechanical Performance |
||||||
Mechanical Performance |
Specification |
|||||
Antenna Housing Material |
ABS/PS |
|||||
Connector Type |
N - type Female |
|||||
Connector Lead Length (mm) |
≥200 |
|||||
Antenna Size (mm) |
292*208*50 |
|||||
Packaging Size (mm) |
338*216*58 |
|||||
Antenna Weight (kg) |
0.25 |
|||||
Operating Temperature (℃) |
-30~+45 |
|||||
Storage Temperature (℃) |
-40~+55 |
|||||
