Product Name |
4x4 MIMO Antenna |
|||
Electrical Specifications |
M4D2458-45VH12C |
|||
Frequency Range (MHz) |
2400～2500 |
5150～5850 |
||
Polarization |
2×Vertical + 2×Horizontal |
|||
Gain (dBi) |
12 |
15 |
||
Electrical Down-tilt (°) |
0 |
|||
Half-power Beamwidth (°) |
H-plane: 45 |
H-plane: 20 |
||
E-plane: 48 |
E-plane: 20 |
|||
Port Isolation (dB) |
≥25 |
|||
Front-to-Back Ratio (dB) |
≥25 |
|||
Input Impedance (Ω) |
50 |
|||
Voltage Standing Wave Ratio (VSWR) |
≤2 |
|||
Maximum Power (W) |
50 |
|||
Mechanical & Environmental Specifications |
||||
Connector Type |
4×N Female |
|||
Connector Position |
Rear |
|||
Antenna Dimensions (L×W×H: mm) |
306×306×25 |
|||
Antenna Weight (kg) |
1.4 |
|||
Radome Material |
ABS |
|||
Radome Color |
White |
|||
Mechanical Adjustable Tilt (°) |
0～60 |
|||
Operating Temperature (℃) |
-40～60 |
|||
Ultimate Wind Speed (m/s) |
60 |
|||

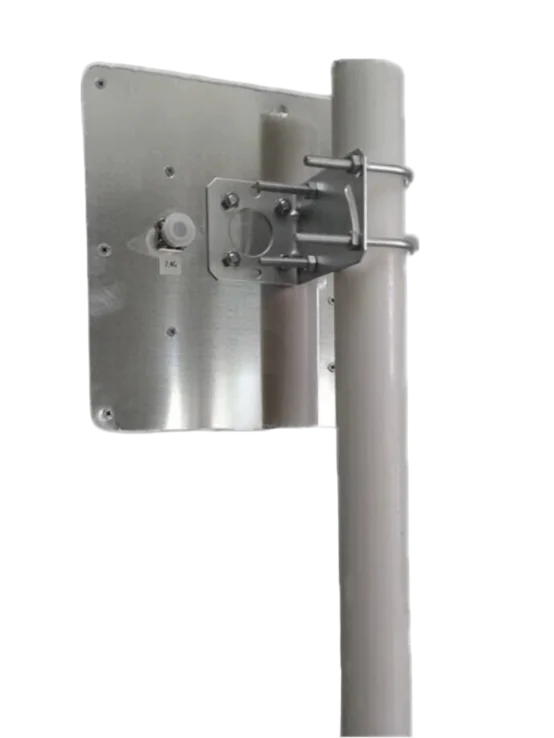

Mast Diameter (mm) |
35～50 |
|||

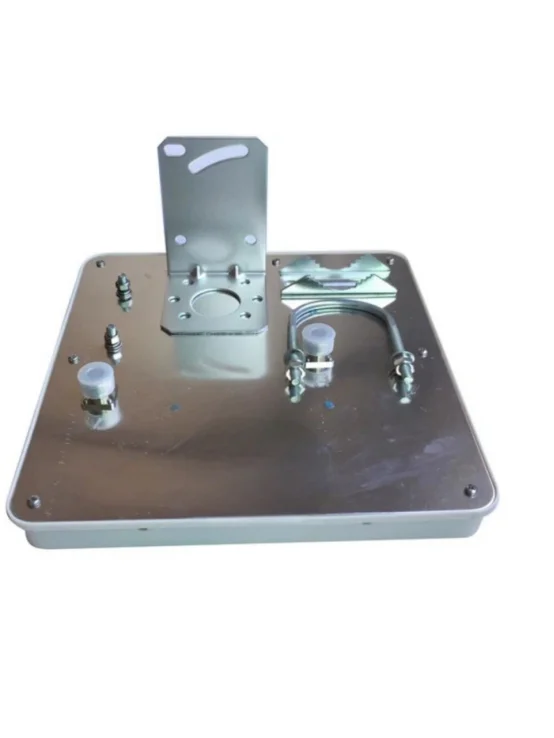

Mounting Part Model |
MK004 L-type Steel Clamp |
|||
