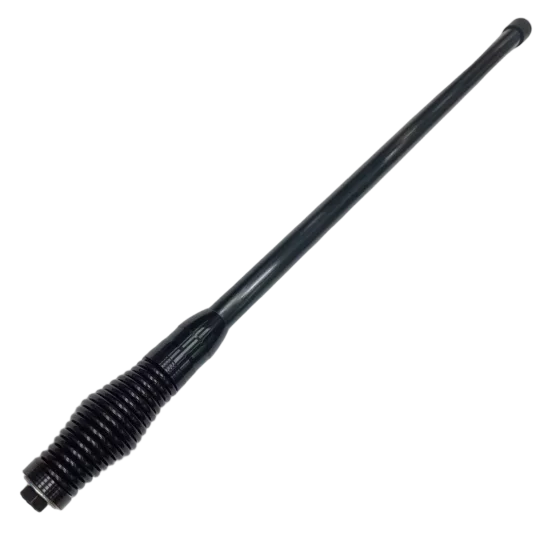

YW-QB24V6ATH 2400-2483MHz 6dBi Vertical Polarization Antenna |
|||
Technical Specifications |
QB24V6ATH |
||
Frequency Range (MHz) |
2400-2483 |
5150～5850 |
|
Bandwidth (MHz) |
83 |
700 |
|
Polarization |
Vertical |
||
Gain (dBi) |
6 |
10 |
|
Input Impedance (Ω) |
50 |
11 |
|
Voltage Standing Wave Ratio (VSWR) |
≤2 |
||
Maximum Power (W) |
50 |
||
Connector Type |
N Male |
||
Antenna Length (cm) |
41.7 |
||
Antenna Weight (kg) |
Approximately 0.15 |
||
Cover Material |
Fiberglass |
||
Ultimate Wind Speed (km/h) |
120 |
||
Mounting Method |

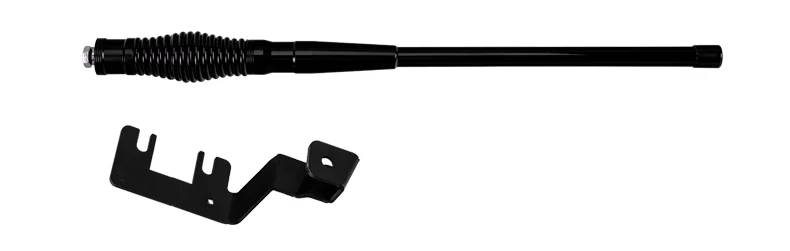

Used with magnetic suction cup mounts (Bottom anti-collision spring structure) |
||
