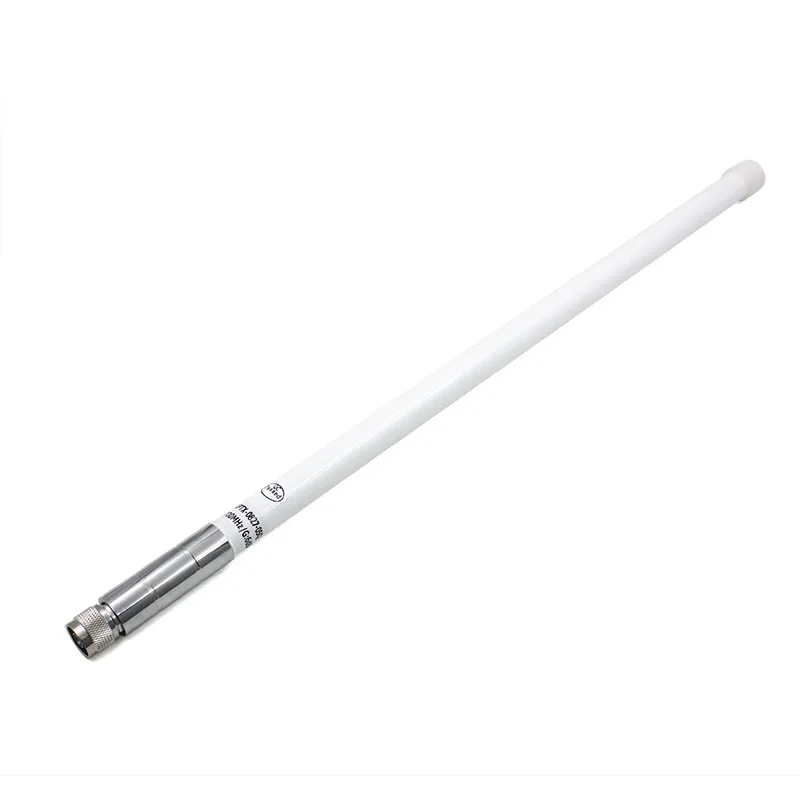

White 12dBi High Gain Fiberglass Antenna |
||
Technical Specifications |
QB58V12AW |
|
Frequency Range (MHz) |
5150–5850 |
|
Bandwidth (MHz) |
700 |
|
Polarization |
Vertical |
|
Gain (dBi) |
12 |
|
Input Impedance (Ω) |
50 |
|
Voltage Standing Wave Ratio (VSWR) |
≤2 |
|
Maximum Power (W) |
50 |
|
Connector Type |
N Female |
|
Antenna Length (cm) |
57 |
|
Antenna Weight (kg) |
1 |
|
Radome Material |
Fiberglass (White) |
|
Ultimate Wind Speed (m/s) |
60 |
|
Mounting Pole Diameter (mm) |
30–50 |
|
