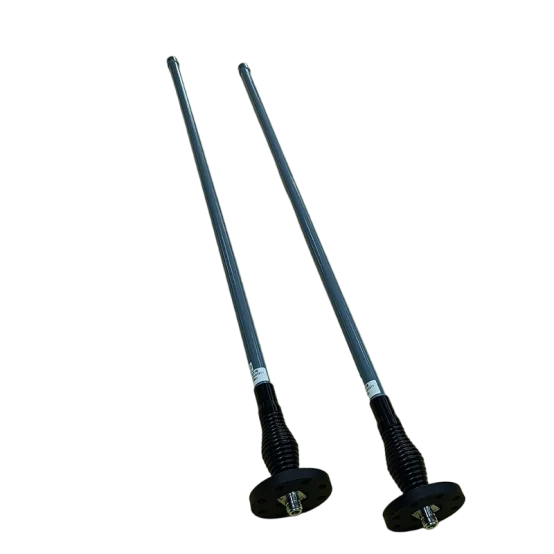

5150–5850MHz Vertical Polarization 12dBi Fiberglass Antenna |
||
Technical Specifications |
QB58V12AWTH |
|
Frequency Range (MHz) |
5150–5850 |
|
Bandwidth (MHz) |
700 |
|
Polarization |
Vertical |
|
Gain (dBi) |
12 |
|
Input Impedance (Ω) |
50 |
|
Voltage Standing Wave Ratio (VSWR) |
≤2.5 |
|
Maximum Power (W) |
50 |
|
Connector Type |
N Male |
|
Antenna Length (cm) |
56.3 |
|
Antenna Weight (kg) |
0.3 |
|
Radome Material |
Fiberglass (Grey) |
|
Ultimate Wind Speed (m/s) |
60 |
|
Mounting Method |
Used with suction cup and other mounting bases (Bottom anti-collision spring structure) |
|
Mounting Pole Diameter (mm) |
50–90 |
|
