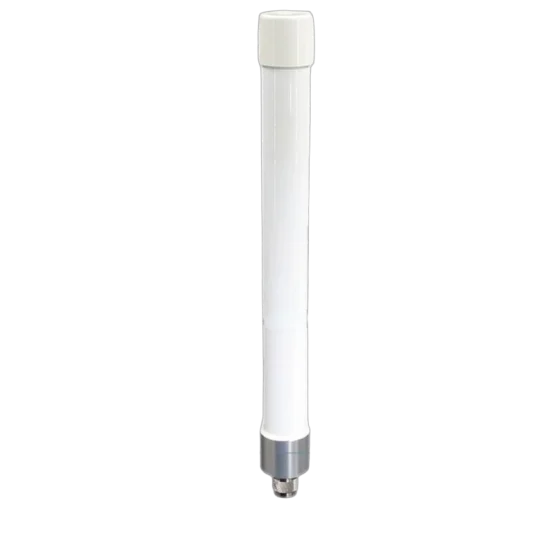

White 11dBi High Gain Fiberglass Antenna |
||
Technical Specifications |
YW-QB58VH11A |
|
Frequency Range (MHz) |
5150–5850 |
|
Bandwidth (MHz) |
700 |
|
Polarization |
Vertical/Horizontal |
|
Gain (dBi) |
11 |
|
Input Impedance (Ω) |
50 |
|
Voltage Standing Wave Ratio (VSWR) |
≤2 |
|
Maximum Power (W) |
50 |
|
Connector Type |
2×N Female |
|
Antenna Size (mm) |
Φ75×465 |
|
Antenna Weight (kg) |
1.7 |
|
Radome Material |
PVC (White) |
|
Ultimate Wind Speed (m/s) |
60 |
|
Mounting Pole Diameter (mm) |
50–90 |
|
