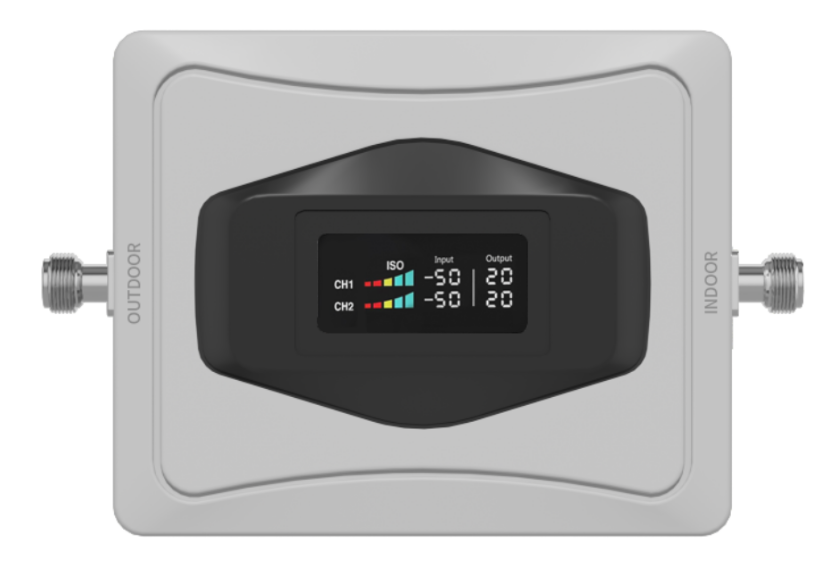

S3 5G Smart Repeater Pre-Amplifier with Auto Isolation Check & Smart ALC (60dB Gain) for Indoor Coverage

[email protected]

Description

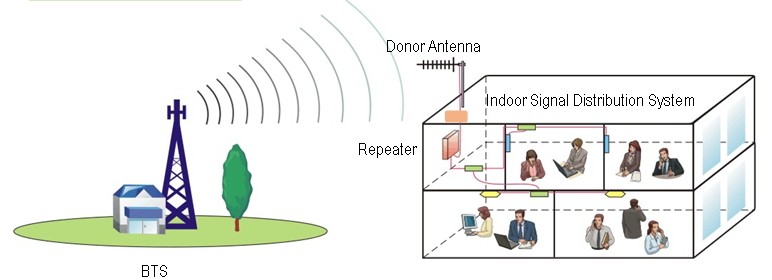

To expand signal coverage or fill signal blind area where signal is weak or unavailable.
Indoor:Hotels, exhibition centers, basements, shopping malls, offices, parking lots, …

S3 5G Smart Repeater Pre-Amplifier with Auto Isolation Check & Smart ALC (60dB Gain) for Indoor Coverage details

Items		Specifications
System		850	1900	AWS
Frequency Range	U link（MHz）	824~849	1850~1910	1710~1755
	D link（MHz）	869~894	1930~1990	2110~2155
Maximum Gain	U link（MHz）	60±3dB
	D link（MHz）	68±3dB
Maximum Output Power	U link（MHz）	16±2dBm
	D link（MHz）	18±2dBm
MGC Range		0-30dB
AGC Range		≥20dB
Maximum Input power(Non-destructive)		≤0dBm
VSWR		≤2.0
Group Delay		≤ 5.0μs
I/O Impedance		50 Ω
Noise Figure		≤8dB
Spurious Emission		9kHz~1GHz: ≤ -36dBm
		1GHz~12.75GHz:≤-30dBm
RF Connector		2 X N- Female(1 BTS Port and 1 MS Port)
Power Supply		Input:AC100~ 240V,5V5A

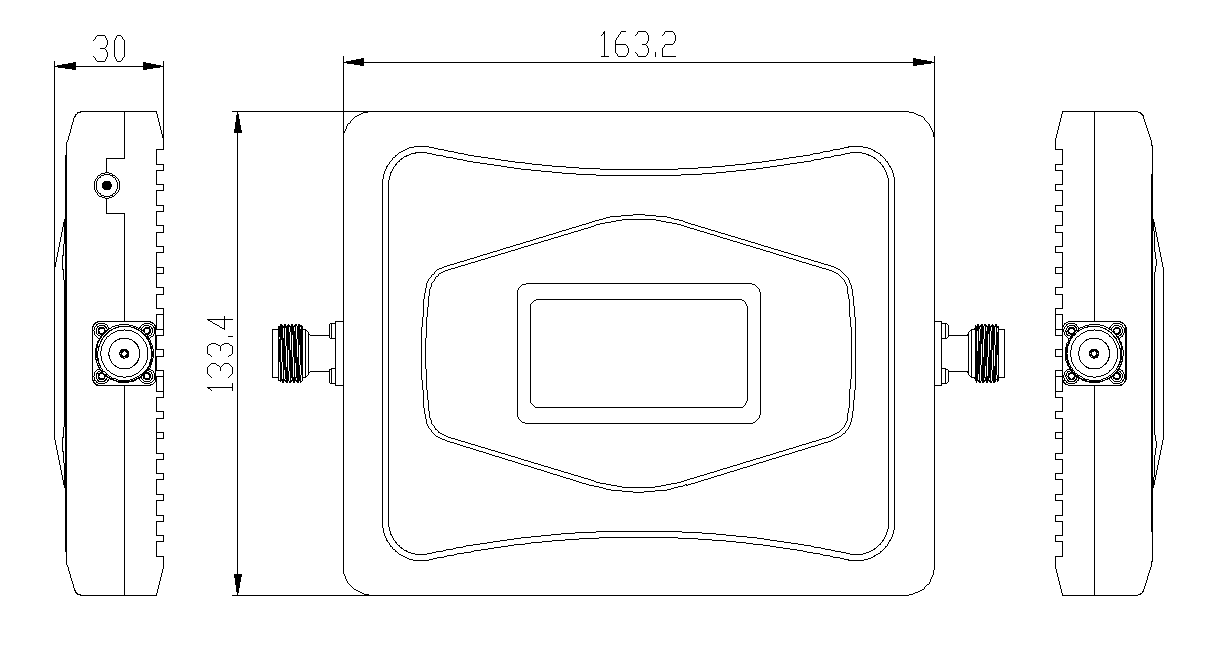

Dimensions		163 × 133 × 30 mm
Weight		≤1.5 kg
Alarm Monitoring System		Alarm for Uplink Self-Oscillation
Isolation Detection		Isolation Check During Boot Time
LED Indicator		Power Supply, Smart, ALC
Operating Temperature		-10 ~ +50 °C
Application		Indoor(IP40)
Relative Humidity Range		≤85%
Local Control
Mounting		Wall Mounting
