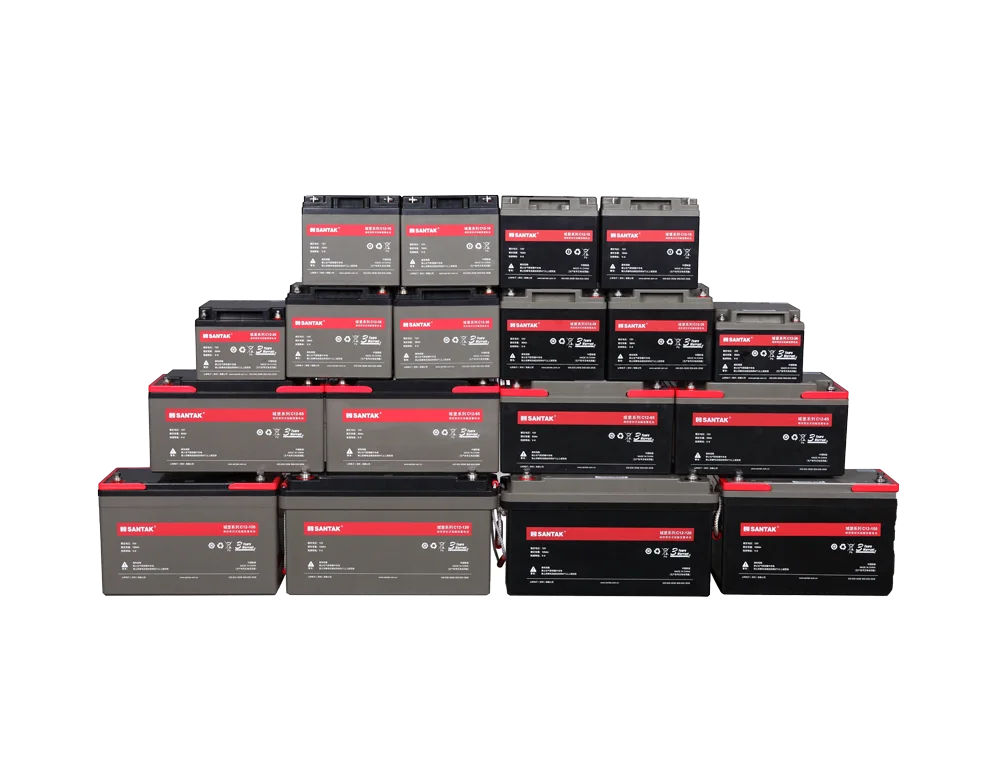

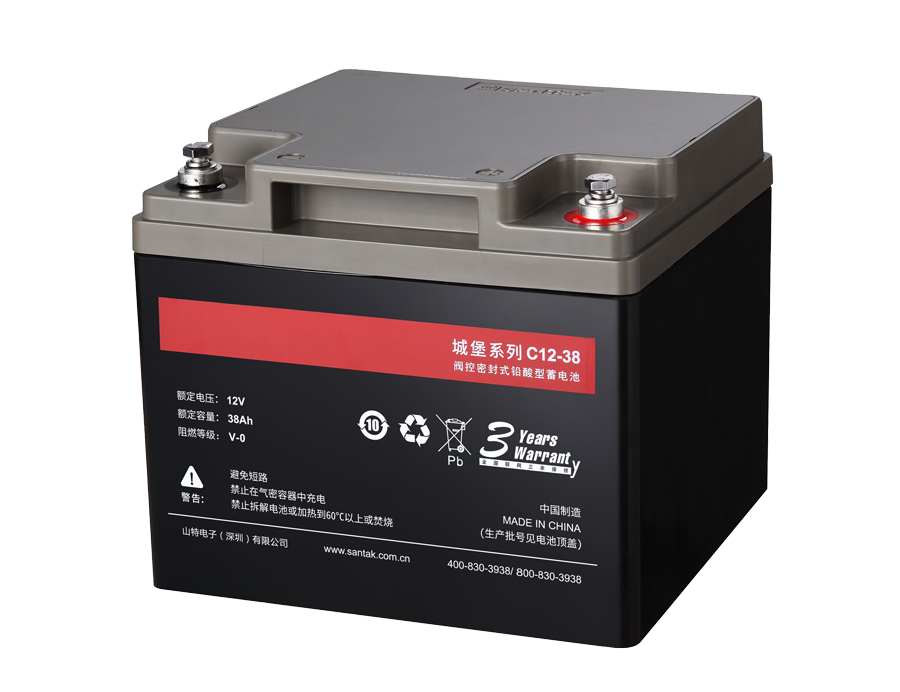

UPS Black 12V Valve-Regulated Sealed Lead Acid Battery for UPS Standby Uninterruptible Power Supplies

UPS Black 12V Valve-Regulated Sealed Lead Acid Battery for UPS Standby Uninterruptible Power Supplies

Description

[email protected]

Description

Product Description

Yoongwin Situation Awareness Technology Co., Ltd., founded in 2007 in Nanjing Economic and Technological Development Zone with a registered capital of RMB 60.06 million, controls eight medium - sized tech enterprises. Its main business spans thin - film circuits, antenna & feeder products, etc., and it's involved in industrial Internet security and electromagnetic space protection.
As a member of multiple associations, it holds dual - software and ISO2700 info security certifications. With over 100 patents, it was recognized as a Nanjing Gazelle Enterprise from 2020 - 2022, indicating continuous growth.

SANTAK UPS Black 12V Valve-Regulated Sealed Lead Acid Battery for UPS Standby Uninterruptible Power Supplies details

Product Detail

Design life for floating charge	10 years
Recommended Operating Temperature Range	25±5°C
Extreme Operating Temperature Range	- Charging: -20～40°C - Discharging: -20～50°C - Static Storage: -15～40°C


Effect of Temperature on Capacity	- 103%C20 @40°C - 100%C20@25°C - 86%C20@0°C


Floating Charge Voltage	13.5V - 13.8V; Recommended value: 13.65V
Equalizing Charge Voltage	14.1V - 14.4V; Recommended value: 14.1V
Floating Charge Temperature Compensation Coefficient	-18mV/°C
Cyclic Use Temperature Compensation Coefficient	-30mV/°C
Recommended Maximum Charging Current	0.25CA
Maximum AC Ripple (Charger)	< 2%
Self-Discharge	≤ 3%/month (25°C)

Model	Voltage (V)	Capacity/Ah (C20@25℃)	W/cell (1.67V@15min)	Internal Resistance (mΩ)	Dimensions (mm)					Weight (Kg)	Terminal Type
					Dimensions (mm)
												L	W	H

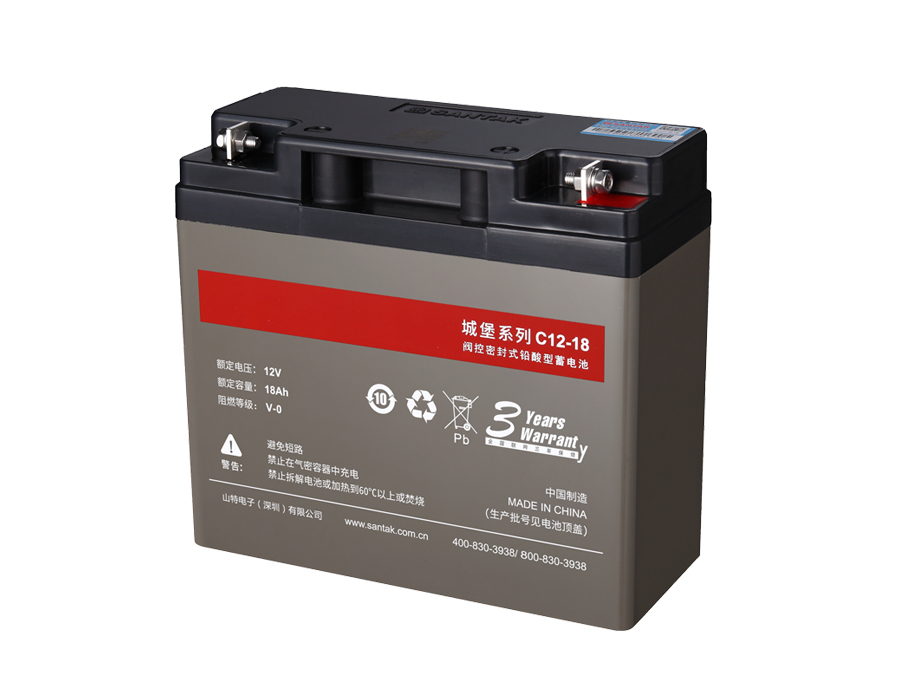

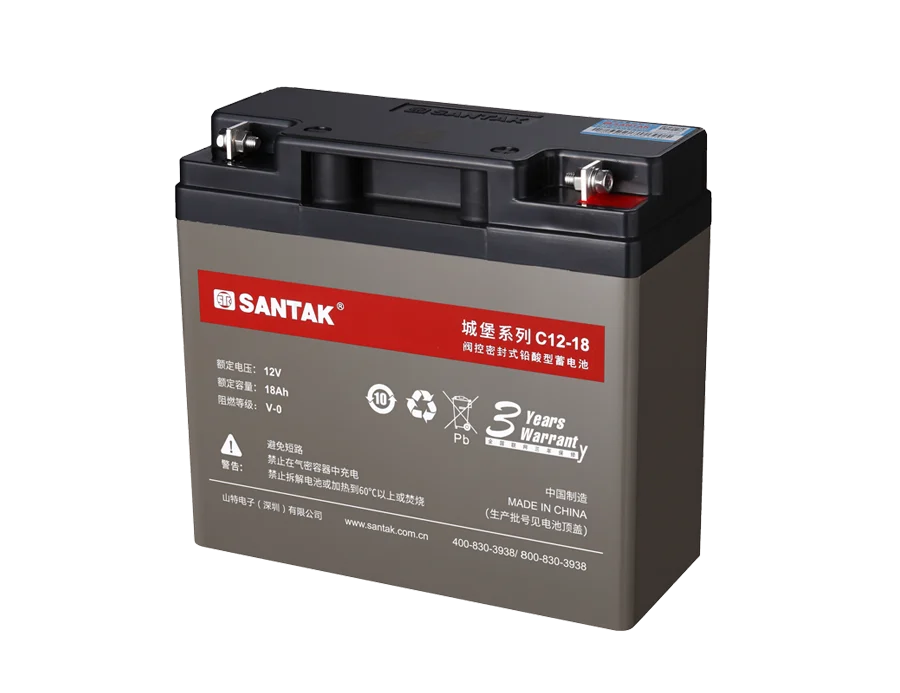

C12-18	12	18	61.7	16.2	181.5	77	167.5	5.4	M5
C12-26	12	26	89.1	14	166	175	133	7.8	M5

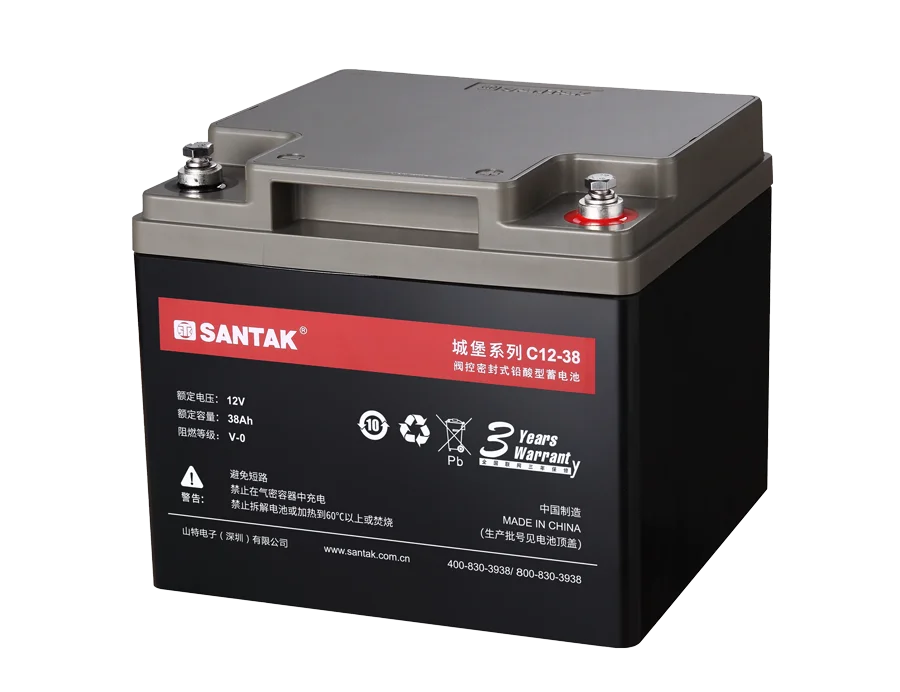

C12-38	12	38	123	9	197	165	170	11.4	M6
C12-65	12	65	210	6.5	325	167	174	19.2	M6

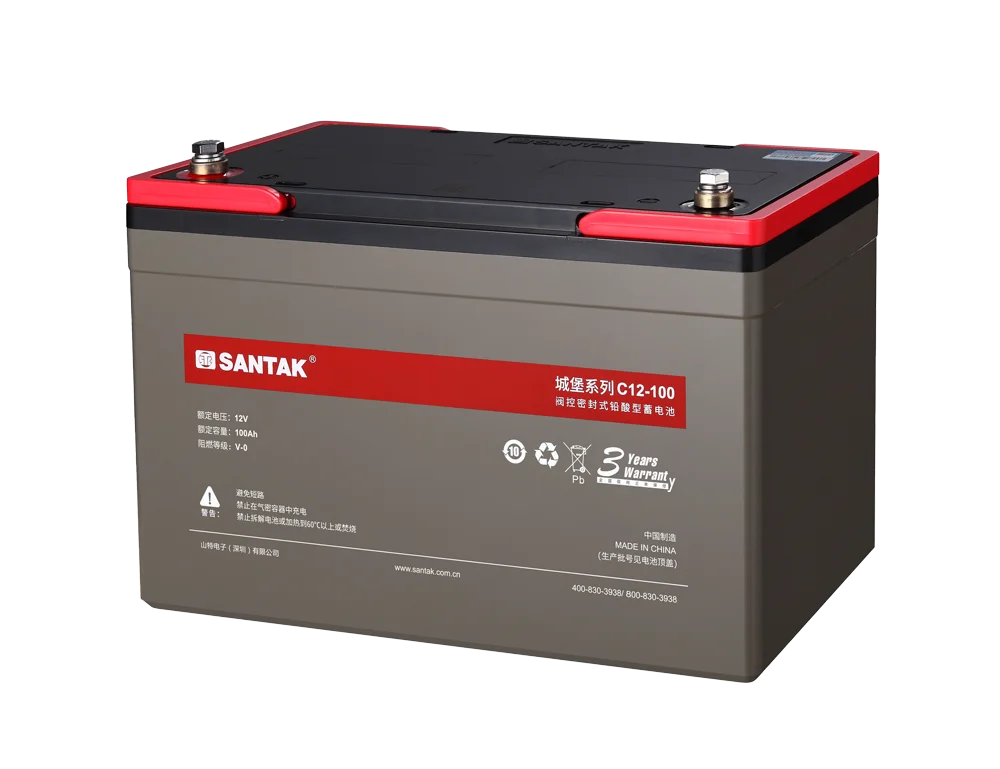

C12-100	12	100	324	4	330	173	213	28	M8
C12-120	12	120	336	4	408	177	225	32.3	M8
C12-150	12	150	420	3.5	483	170	238.5	41.5	M8
C12-200	12	200	647	3.2	522	240	218	57.1	M8
C12-225	12	246	700.4	2.5	522	240	218	63.5	M8
C12-250	12	262	820	2.5	521	268	220	72.5	M8

Part Number	Model	Description

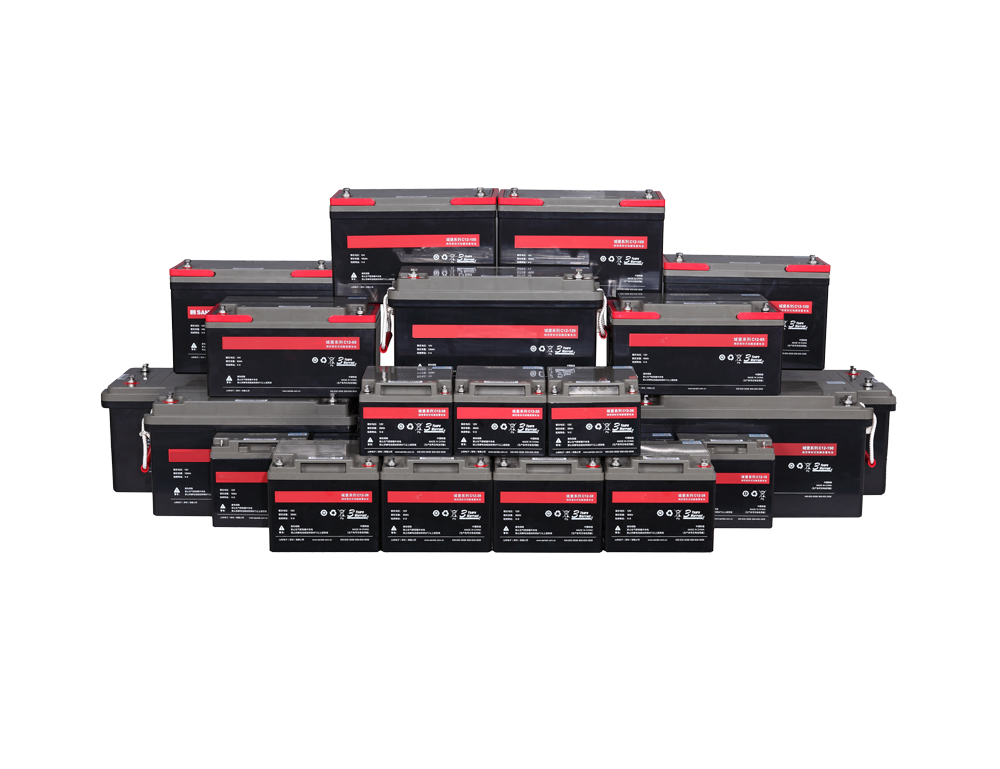

112-01208MA	C12-18 12V 18Ah Black	Santak Castle Battery, 12V/18Ah, Black Case
112-01187MA	C12-26 12V 26Ah Black	Santak Castle Battery, 12V/26Ah, Black Case
112-01188MA	C12-38 12V 38Ah Black	Santak Castle Battery, 12V/38Ah, Black Case
112-01189MA	C12-65 12V 65Ah Black	Santak Castle Battery, 12V/65Ah, Black Case
112-01190MA	C12-100 12V 100Ah Black	Santak Castle Battery, 12V/100Ah, Black Case
112-01211MA	C12-120 12V 120Ah Black	Santak Castle Battery, 12V/120Ah, Black Case
112-01210MA	C12-150 12V 150Ah Black	Santak Castle Battery, 12V/150Ah, Black Case
112-01209MA	C12-200 12V 200Ah Black	Santak Castle Battery, 12V/200Ah, Black Case
112-90010MA	C12-250 12V 250Ah Black	Santak Castle Battery, 12V/250Ah, Black Case

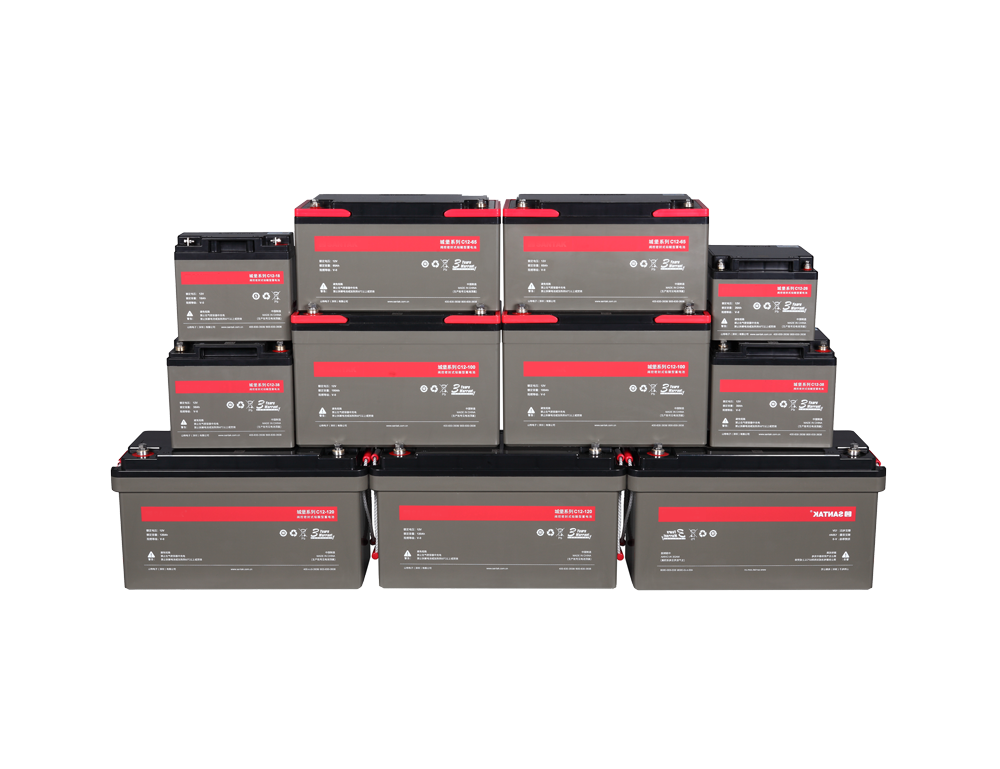

112-90093	C12-18 12V 18Ah Gray	Santak Castle Battery, 12V/18Ah, Gray Case
112-90095	C12-26 12V 26Ah Gray	Santak Castle Battery, 12V/26Ah, Gray Case
112-90097	C12-38 12V 38Ah Gray	Santak Castle Battery, 12V/38Ah, Gray Case
112-90099	C12-65 12V 65Ah Gray	Santak Castle Battery, 12V/65Ah, Gray Case
112-90101	C12-100 12V 100Ah Gray	Santak Castle Battery, 12V/100Ah, Gray Case
112-90103	C12-120 12V 120AH Gray	Santak Castle Battery, 12V/120Ah, Gray Case
