Product Name |

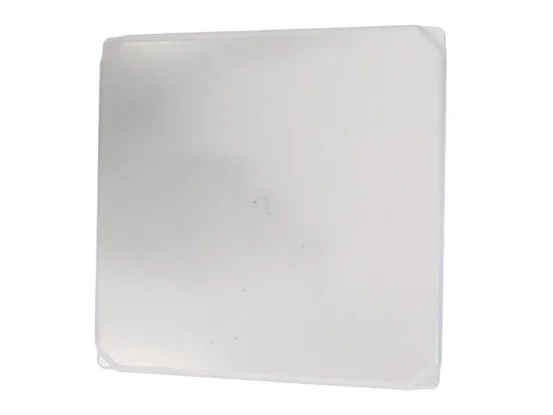

4x4 MIMO Flat Antenna |
|||
Electrical Specifications |
M4D2458 - 60VH10D |
|||
Frequency Range (MHz) |
2400～2500 |
5150～5850 |
||
Polarization |
2×Vertical + 2×Horizontal |
|||
Gain (dBi) |
10 |
11 |
||
Electrical Down - Tilt (°) |
0 |
|||
Half - Power Beamwidth (°) |
H - plane: 60 |
H - plane: 50 |
||
E - plane: 30 |
E - plane: 25 |
|||
First Upper Side Lobe Suppression (dB) |
/ |
|||
Front - to - Back Ratio (dB) |
≥25 |
|||
Input Impedance (Ω) |
50 |
|||
Voltage Standing Wave Ratio |
≤2 |
|||
Maximum Power (W) |
50 |
|||
Mechanical and Environmental Specifications |
||||
Connector Type |
4×N Female |
|||
Lead Length |
/ |
|||
Antenna Dimensions (Length×Width×Thickness: mm) |
190×190×40 |
|||
Antenna Weight (kg) |
1 |
|||
Radome Material |
ABS |
|||
Radome Color |
White |
|||
Mechanical Adjustable Tilt (°) |
0～60 |
|||
Operating Temperature (℃) |
- 40～60 |
|||
Ultimate Wind Speed (m/s) |
60 |
|||
Mounting Pole Diameter (mm) |
35～50 |
|||

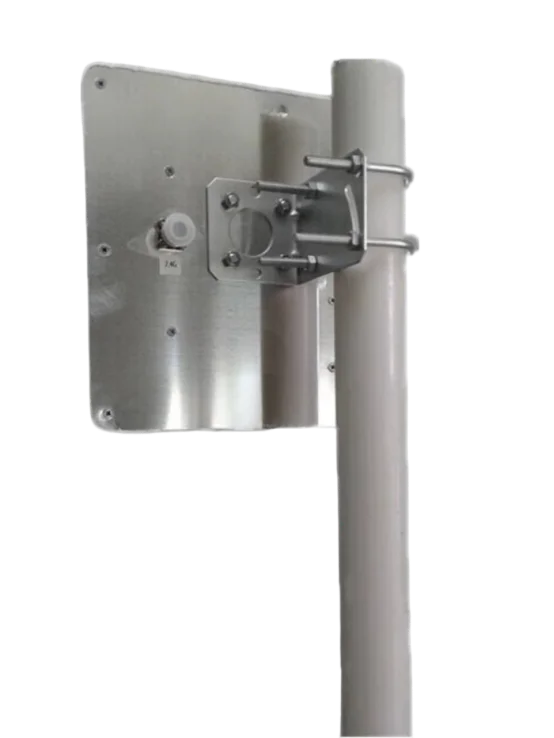

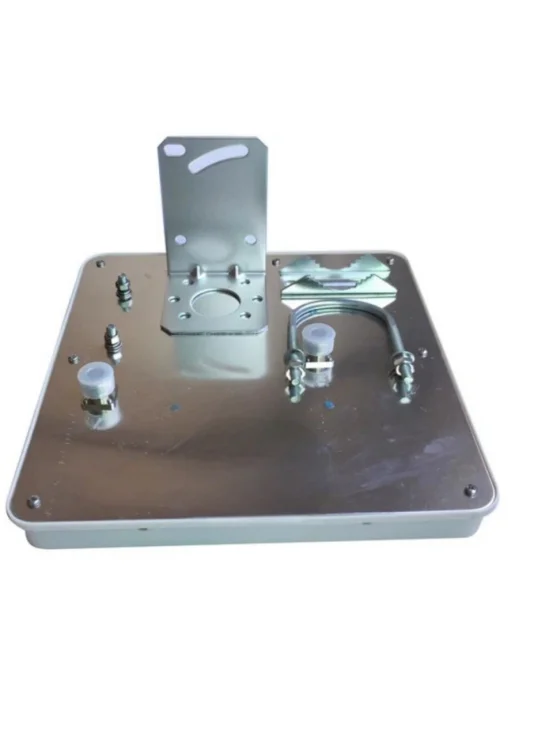

Mounting Part Model |
MK004A L-shaped Steel Clamp |
|||
Electrical Specifications |
M4D2458-60VH10D-1 |
|||
Frequency Range (MHz) |
2400～2500 |
5150～5850 |
||
Polarization |
2×Vertical + 2×Horizontal |
|||
Gain (dBi) |
10 |
11 |
||
Electrical Down-tilt (°) |
0 |
|||
Half Power Beamwidth (°) |
H-plane: 60 |
H-plane: 50 |
||
E-plane: 30 |
E-plane: 25 |
|||
First Upper Side Lobe Suppression (dB) |
/ |
|||
Front-to-Back Ratio (dB) |
≥25 |
|||
Input Impedance (Ω) |
50 |
|||
VSWR (Voltage Standing Wave Ratio) |
≤2 |
|||
Maximum Power (W) |
50 |
|||
Mechanical & Environmental Specifications |
||||
Connector Type |
4×N Female |
|||
Lead Length |
/ |
|||
Antenna Dimensions (L×W×H: mm) |
190×190×40 |
|||
Antenna Weight (kg) |
1 |
|||
Radome Material |
ABS |
|||
Radome Color |
White |
|||
Mechanical Adjustable Tilt (°) |
0～60 |
|||
Operating Temperature (℃) |
-40～60 |
|||
Ultimate Wind Speed (m/s) |
60 |
|||
Pole Diameter (mm) |
35～50 |
|||
Remarks |
Vehicle-mounted via bolt fixing; railside installation via pole mounting. |
|||
