Electrical Indicators |

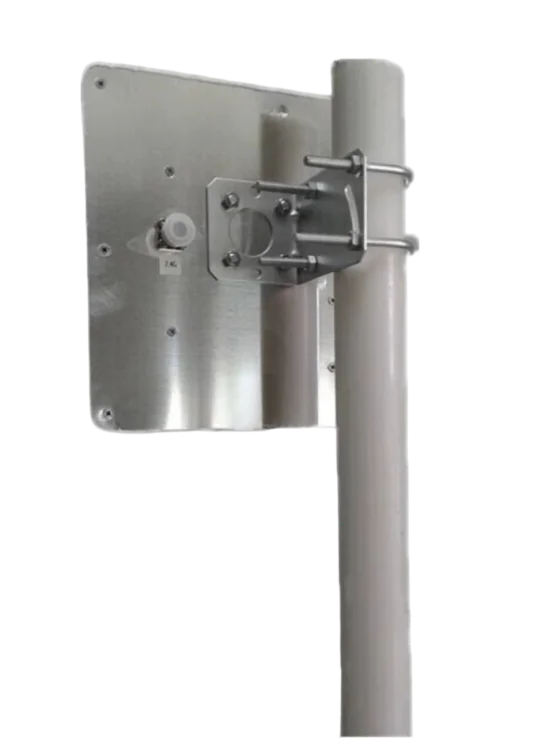

M3D58-30VH14D |
Frequency Range (MHz) |
5150–5850 |
Polarization |
2×Vertical + 1×Horizontal |
Gain (dBi) |
14 |
Electrical Downtilt (°) |
0 |
Half Power Beamwidth (°) |
H-plane: 30 |
E-plane: 26 |
|
First Upper Side Lobe Suppression (dB) |
/ |
Front-to-Back Ratio (dB) |
≥25 |
Input Impedance (Ω) |
50 |
Voltage Standing Wave Ratio |
≤2 |
Maximum Power (W) |
50 |
Lightning Protection |
DC Ground |
Mechanical and Environmental Indicators |
Mechanical and Environmental Indicators |
Connector Type |
3×N Female |
Connector Position |
Back |
Antenna Size (Length×Width×Thickness: mm) |
190×190×40 |
Antenna Weight (kg) |
Approx. 1 |
Radome Material |
ABS |
Radome Color |
White |
Mechanical Adjustable Tilt (°) |
0–30 |
Operating Temperature (℃) |
–40–60 |
Ultimate Wind Speed (m/s) |
60 |
Boom Diameter (mm) |
35–50 |
