1A 3A 6A 10A Low Pass Switch and Fuse 250VAC Noise Filter with EMC/EMI for RFI (LC RC Networks) Filtering

1A 3A 6A 10A Low Pass Switch and Fuse 250VAC Noise Filter with EMC/EMI for RFI (LC RC Networks) Filtering

Description

[email protected]

Description

Product Description

Product Detail

Maximum operating voltage（VAC）	Operating frequency（Hz）	Hipot test voltage P-N(VDC) 、PN-E(VAC)	Operating temperature（℃）	Minimum insulation resistance
250	50/60	1500（P-N，VDC）、 1500（PN-E，VAC）	-25~+85	>200M@500VDC

Part No.	Current rating @40℃	Leakage current	Components - L (mH)	Components - Cx(μF)	Components - R(MΩ)	Components - Cy(nF)	Weight (g)

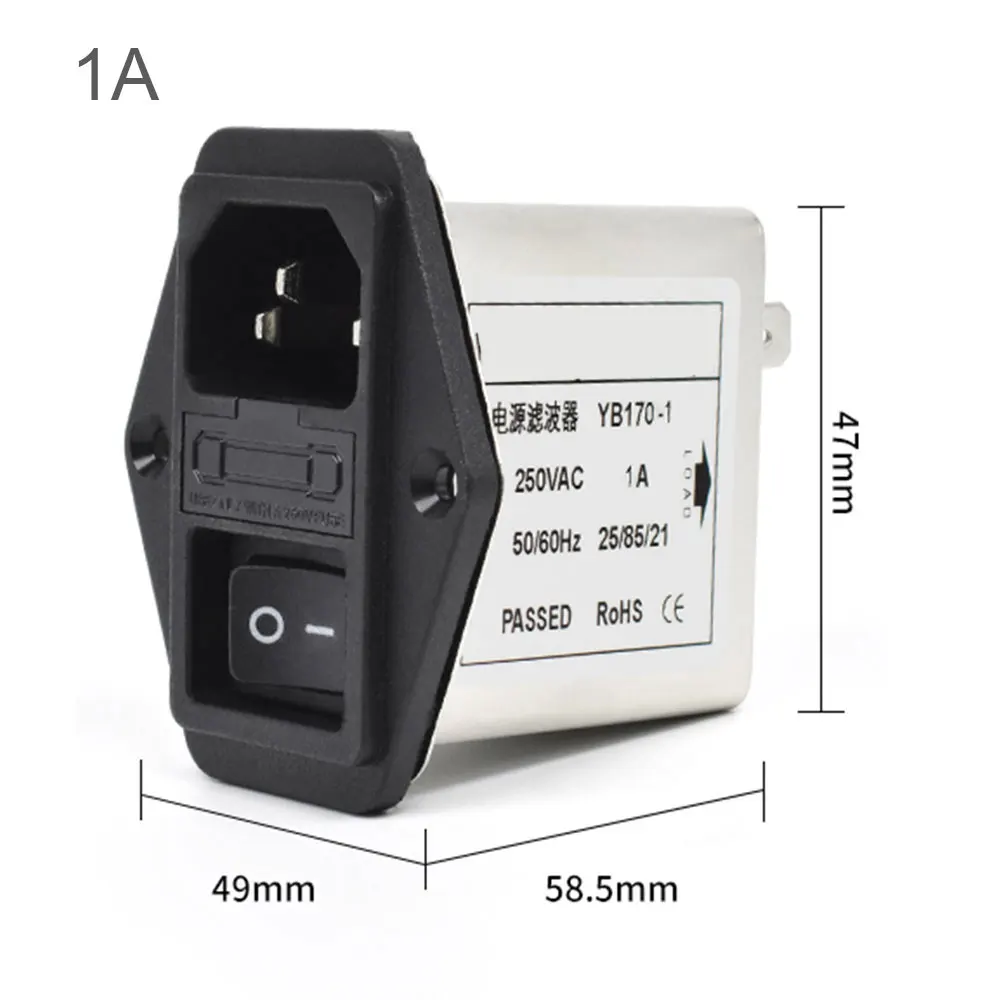

YB170 - 1	1A	≤ 0.3mA	5.5	0.1	1	2.2	60

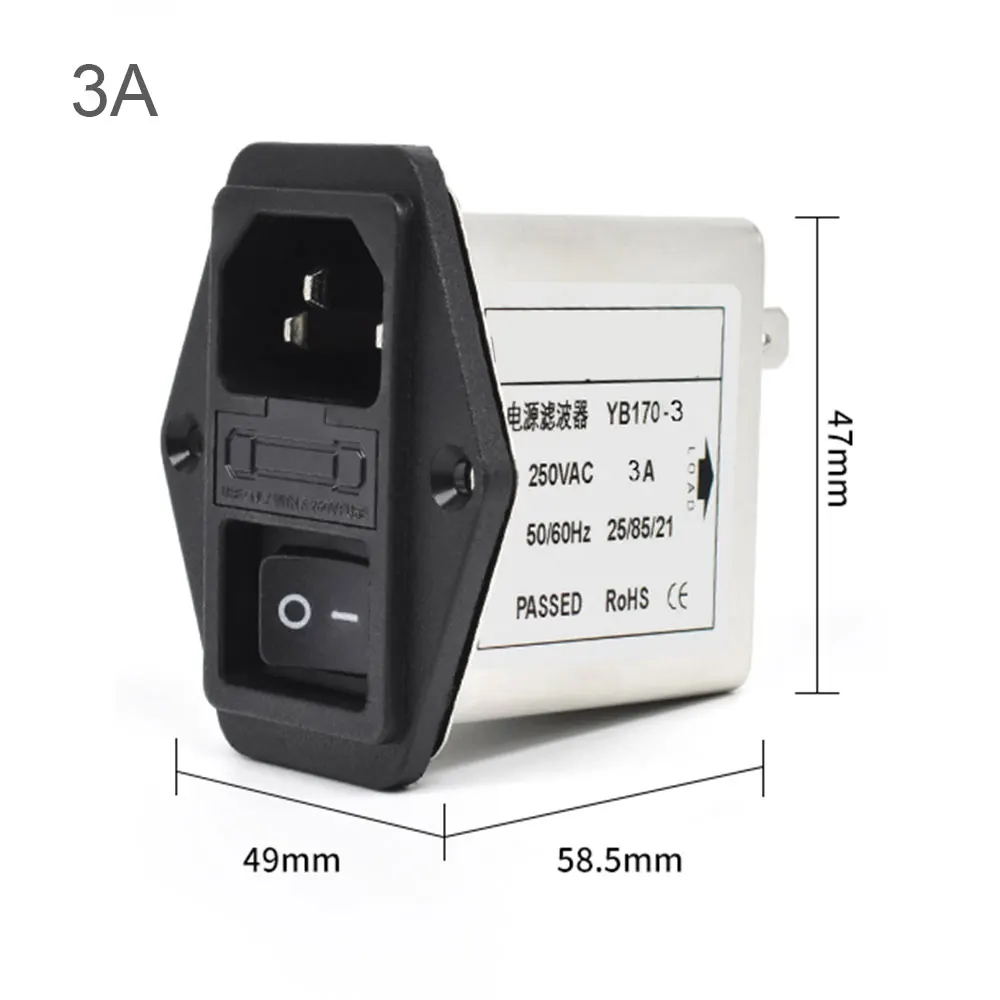

YB170 - 3	3A	≤ 0.3mA	3	0.1	1	2.2	60

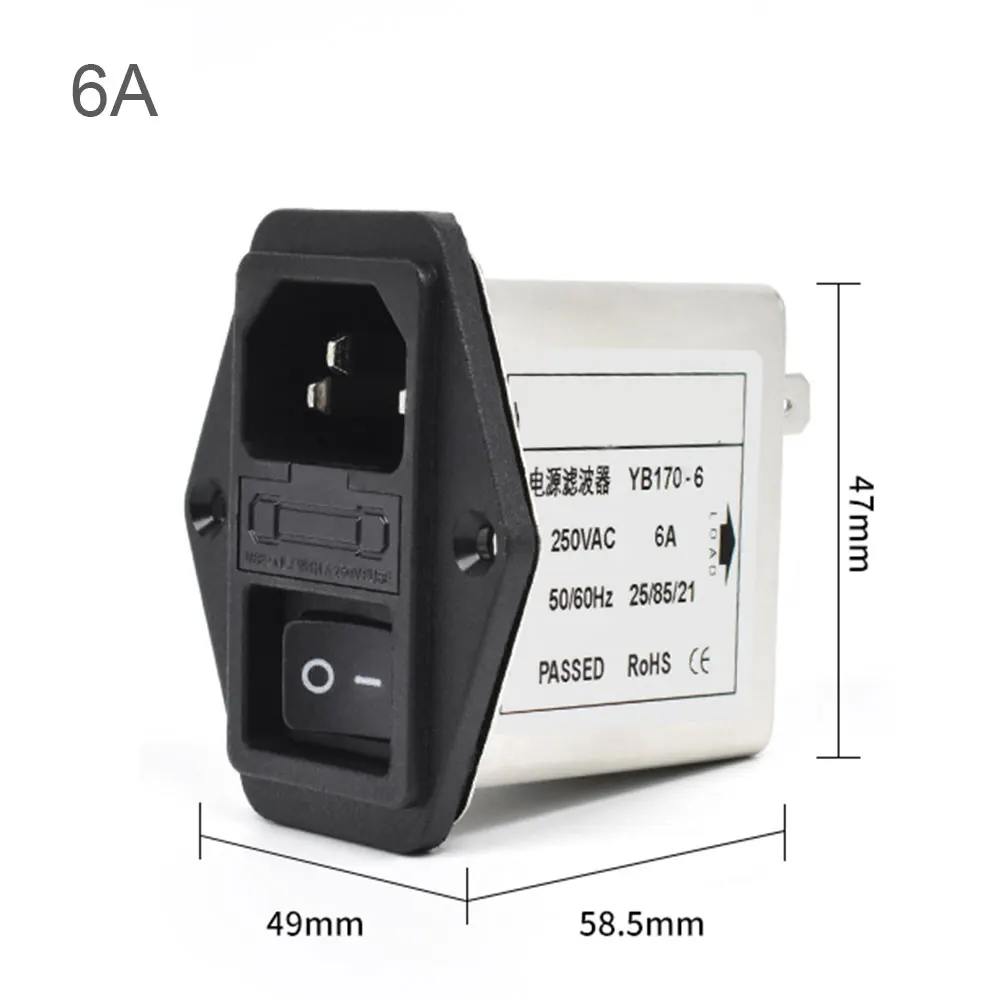

YB170 - 6	6A	≤ 0.3mA	1	0.1	1	2.2	60

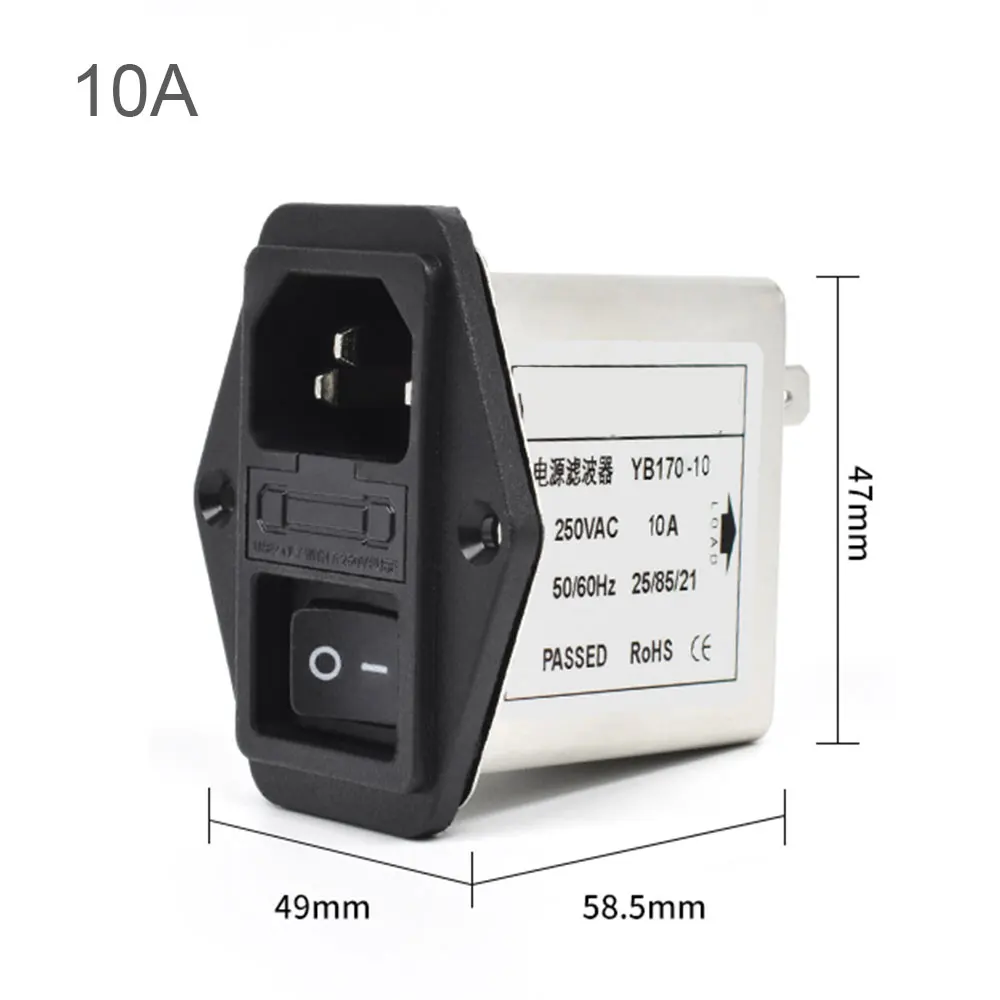

YB170 - 10	10A	≤ 0.3mA	0.4	0.1	1	2.2	60

1A 3A 6A 10A Low Pass Switch and Fuse 250VAC Noise Filter with EMC/EMI for RFI (LC RC Networks) Filtering factory

1A 3A 6A 10A Low Pass Switch and Fuse 250VAC Noise Filter with EMC/EMI for RFI (LC RC Networks) Filtering details

1A 3A 6A 10A Low Pass Switch and Fuse 250VAC Noise Filter with EMC/EMI for RFI (LC RC Networks) Filtering manufacture

1A 3A 6A 10A Low Pass Switch and Fuse 250VAC Noise Filter with EMC/EMI for RFI (LC RC Networks) Filtering supplier

Recommend Products

Company Profile

FAQ

Q: Are you a manufacturer or a trading company? A: We have been professional antenna manufacturer for 18 years. Q: Have gps gsm combo antenna 100% assembles well in stock? A: No, all gps gsm combo antenna will be newly assembled according to your orders including the samples. Q: Could I use my own LOGO or design on goods? A: Yes, customized logo and design on mass production are available. Q: What's the payment term? A: T/T, AliPay,Paypal,Afterpay,Klarna etc. Q:What certifications do you have? A:Certified by FCC, CE, RoHS,ISO available upon request. Q: Where is your factory located? Can I visit your factory? A: Factory address: 2nd Floor, Building D4-1, Hongfeng Science and Technology Park, Nanjing Economic and Technological Development Zone, Jiangsu Province. Just call us, we will pick you up with no delay.
