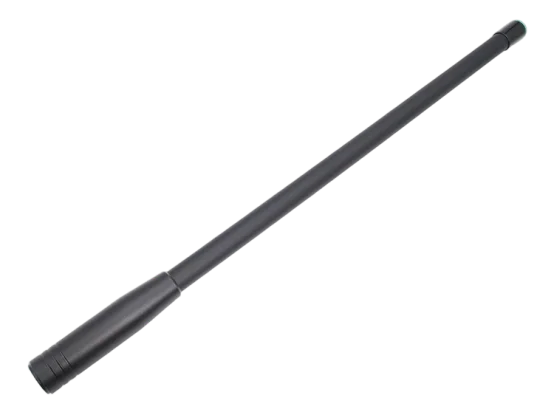

360° Coverage 3dBi Gain 371-386MHz Portable Communication Antenna for Mobile Devices

360° Coverage 3dBi Gain 371-386MHz Portable Communication Antenna for Mobile Devices

Description

[email protected]

Description

Product Description

1.Weighing Only 70g: Our ultra-lightweight design minimizes load on equipment and structures. Ideal for weight-sensitive
applications like drones and portable devices where every gram matters.

2.True 360° Omnidirectional Performance: Ensures reliable signal reception from all directions without antenna adjustment. Perfect for mobile applications where device orientation constantly changes.

3IP65 Rated Weatherproof Protection: Fully sealed against dust and water jets, this antenna withstands harsh outdoor conditions.Trust it to perform reliably in rain, dust, and extreme temperatures from -40°C to +70°C.

4.Wide 40° Vertical Beamwidth: Provides excellent coverage for both ground-level and elevated communications. Superior performance in varied terrain and mobile scenarios compared to narrow-beam antennas.

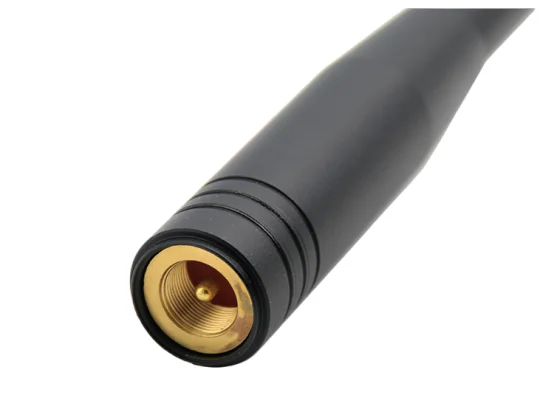

5.Professional SL16-J Connector: Features a secure, reliable connection specifically designed for communication equipment. Maintains stable performance even in high-vibration environments like vehicle and drone applications.

Product Detail

Electrical Specifications
Optional Frequency (MHz)	371～386
Polarization	Vertical Polarization
Gain (dBi)	3
Horizontal 3dB Beamwidth (°)	360
Vertical 3dB Beamwidth (°)	40±5
Circularity Error	≤3 dB
VSWR (Voltage Standing Wave Ratio)	≤2
Input Impedance (Ω)	50
Maximum Power (W)	100
Mechanical Parameters
Connector Type	SL16-J
Connector Position	Bottom
Antenna Color	Black
Antenna Weight	70 g
Antenna Length (mm)	380±10
Antenna Main Rod Diameter (mm)	φ5
Maximum Wind Speed (m/s)	60
Operating Humidity (%)	5-95
Operating Temperature (℃)	-40～+70
Dust and Water Protection Rating	IP65
